Brand Name:
Huawei
Model Number:

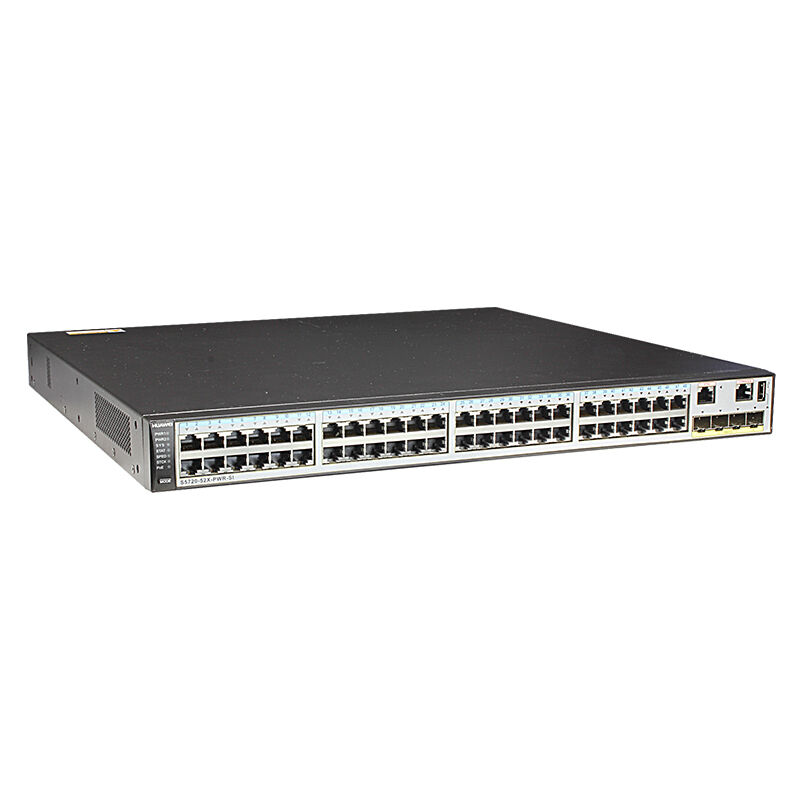

S5720-52X-PWR-SI-DC
Document:
| Model | S5720-52X-PWR-SI-DC |
|---|---|
| Part Number | 02350DLX |
| Memory (RAM) | 512 MB |
| Flash | 512 MB total (view available size using display version command) |
| PoE Support | Yes |
| Weight with Packaging | 9.6 kg (21.17 lb) |
| Dimensions (H x W x D) |
Basic: 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum: 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |
| ① | Forty-eight PoE+ 10/100/1000BASE-T ports |
|---|---|
| ② | Four 10GE SFP+ ports |
| ③ | One ETH management port |
| ④ | One console port |
| ⑤ | One USB port |
| ⑥ | Ground screw |
| ⑦ | ESN label |
| ⑧ | Power module slot 2 |
| ⑨ | Power module slot 1 |
| Model | Description |
|---|---|
| PAC-500WA-BE | 500W AC PoE Power Module (Black, Power panel side exhaust) |
| PDC-650WA-BE | 650W DC PoE Power Module (Black, Power panel side exhaust) |
| Model | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| Model | Description |
|---|---|
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| Feature | S5720-52X-SI-DC | S5720-52X-PWR-SI-DC |
|---|---|---|
| Fixed Ports | 48 x Ethernet 10/100/1,000 ports, 4 x 10 Gig SFP+ | 48 x Ethernet 10/100/1,000 PoE+ ports, 4 x 10 Gig SFP+ |
| Extended Slots | N/A | N/A |
| Power Supply | Double hot swappable AC/DC power supplies, one AC/DC power module is configured by default | Double hot swappable AC/DC power supplies, one AC/DC power module is configured by default |
| Forwarding Performance | 132 Mpps | 132 Mpps |
| Switching Capacity | 336 Gbit/s | 336 Gbit/s |
| PoE Support | Not supported | Supported |
| Power Consumption | 33.8W | Without PD: 51W; With PD: < 943.2W (PoE: 740W) |
