Place of Origin:
China
Brand Name:
Huawei
Certification:
CE
Model Number:

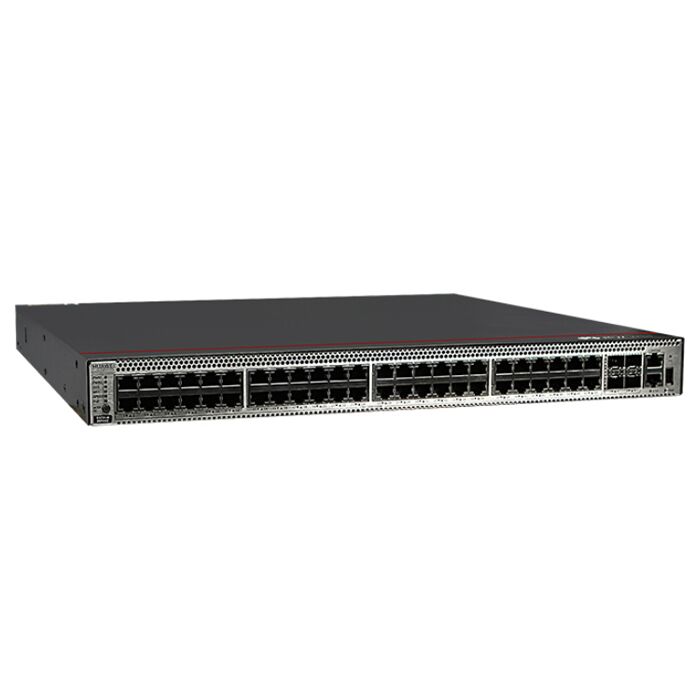

S5731-H48P4XC
The CloudEngine S5731-H series switches are the next-generation intelligent gigabit fixed switches developed by Huawei. The CloudEngine S5731-H builds on Huawei's unified Versatile Routing Platform (VRP) and boasts various IDN features.
|
Model |
S5731-H48P4XC |
|
Part Number |
02352SVD/02352SVD-001/02352SVD-003 |
|
Memory (RAM) |
4 GB |
|
Flash memory |
1 GB in total. To view the available flash memory size, run the display version command. |
|
PoE |
Supported |
|
Dimensions (H x W x D) |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
|
Weight (with packaging) |
8.8 kg (19.40 lb) |
|
Model |
S5731-H48P4XC |
||
|
Part Number |
02352SVD |
02352SVD-001 |
02352SVD-003 |
|
Heat dissipation mode |
Heat dissipation with fan, intelligent fan speed adjustment |
Heat dissipation with fan, intelligent fan speed adjustment |
Air cooling for heat dissipation, intelligent fan speed adjustment |
|
Long-term operating temperature [°C(°F)] |
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
|
Long-term operating relative humidity [RH] |
5% to 95%, noncondensing |
5% to 95%, noncondensing |
5% RH to 95% RH (non-condensing) |
