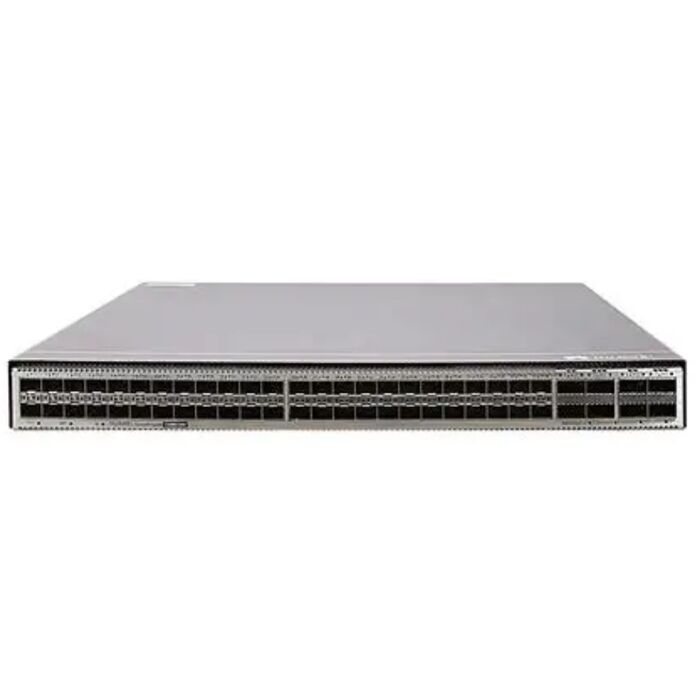

CE6860-SAN Huawei CloudEngine San Switch 02354FPM With 48*25GE SFP28, 8*100GE QSFP28 ports

02354FPN (CE6860-SAN Switch (48*25GE SFP28, 8*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake))

02354FPP (CE6860-SAN Switch (48*25GE SFP28, 8*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust))

• Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.)
• Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 445 mm (1.72 in. x 17.40 in. x 17.52 in.)

It can be used for log backup and USB-based deployment.

This function is reserved.

• AC pluggable
• DC pluggable
• HVDC pluggable

• 48 x 50G + 8 x 200G: 374 W (50% throughput, copper cables on all ports, normal temperature, dual power modules)
• 48 x 25G + 8 x 100G: 360 W (50% throughput, copper cables on all ports, normal temperature, dual power modules), 407 W (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules)

• 48 x 50G + 8 x 200G: 1277 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules)
• 48 x 25G + 8 x 100G: 1229 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules), 1389 BTU/hour (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules)

• 48 x 50G + 8 x 200G: 619 W (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules)
• 48 x 25G + 8 x 100G: 544 W (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules)

• 48 x 50G + 8 x 200G: 2110 BTU/hour (100% throughput, downlink 2 W 50G optical modules, uplink 6.5 W 200G optical modules, 40°C, dual power modules)
• 48 x 25G + 8 x 100G: 1858 BTU/hour (100% throughput, downlink 1.5 W 25G optical modules, uplink 5 W 100G optical modules, 40°C, dual power modules)

• 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
• 1000 W DC power module: –48 V DC to –60 V DC
• 1200 W high-voltage DC power module: 240 V DC to 380 V DC

• 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC
• 1000 W DC power module: –38.4 V DC to –72 V DC
• 1200 W high-voltage DC power module: 190 V DC to 400 V DC

• 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
• 1000 W DC power module: 30 A (–48 V DC to –60 V DC)
• 1200 W high-voltage DC power module: 8 A

• 600 W AC&240 V DC power module: 600 W
• 1000 W DC power module: 1000 W
• 1200 W high-voltage DC power module: 1200 W

• Complies with safety standards.
• Complies with EMC standards.
• Complies with environmental protection standards.

• AC power supply protection: 6 kV in common mode and 6 kV in differential mode
• 240 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode
• –48 V DC power supply protection: 4 kV in common mode and 2 kV in differential mode
• 380 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode

• Front-to-back airflow: 49.8 dB(A) on average (maximum: 53.6 dB(A))
• Back-to-front airflow: 47.8 dB(A) on average (maximum: 51.2 dB(A))

• Front-to-back airflow: 67.6 dB(A) on average (maximum: 73.4 dB(A))
• Back-to-front airflow: 68 dB(A) on average (maximum: 75.4 dB(A))

0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)

NOTE:

When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Yes.

By default, only 24 of the 48 x 25GE ports are enabled and can work only at 25 Gbit/s, and the eight 100GE ports can work only at 100 Gbit/s. The following RTU licenses can be used:

88036XTL: 24 x 25GE ports are added.

88036YCK: The speed of 24 x 25GE ports is upgraded to 50 Gbit/s.

88036YCL: The speed of eight 100GE ports is upgraded to 200 Gbit/s.
