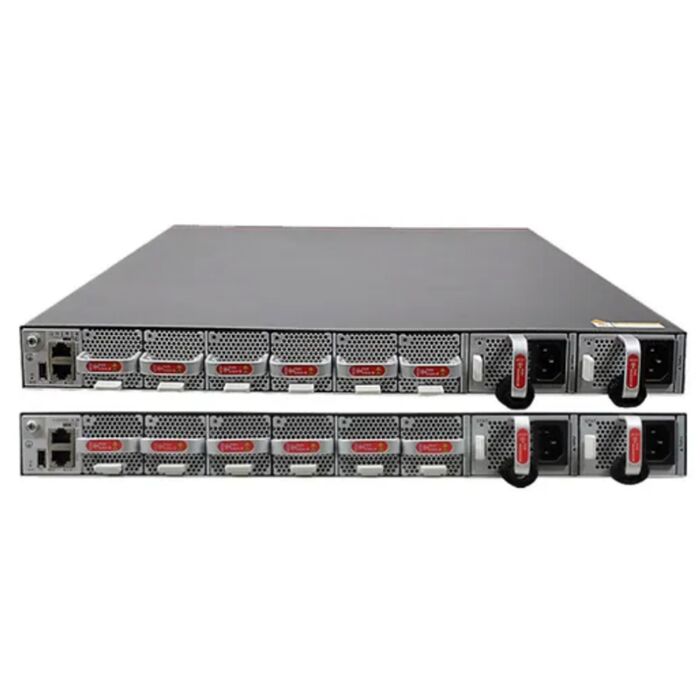

CE8850-SAN (CloudEngine 8850-SAN) is a high-performance data center switch tailored for modern Storage Area Network (SAN) and cloud network environments. It features high-density 100 GE downlink ports and ultra-high-speed uplink ports, offering exceptional throughput and scalability. The base model is shipped without power modules or fans, allowing customizable configurations per deployment requirements.
| Item | Specification |
|---|---|
| Description | CE8850-SAN switch (32 × 100 GE QSFP28, without fan and power modules) |
| Part Number | 02354FPQ |
| Other Part Numbers | 02354FPS (with 2×AC power, 6 fans, port-side intake) 02354FPT (with 2×AC power, 6 fans, port-side exhaust) |
| Model | CE8850-SAN |
| Installation Type | 1U rack-mounted |
| Dimensions (W × D × H) | Without packaging: 442 × 600 × 43.6 mm With packaging: 790 × 590 × 260 mm |
| Weight | Bare chassis: 9.1 kg Full config: 12.2 kg With packaging: 16.5 kg |
| Downlink Ports | 32 × 100 GE QSFP28; supports splitting into 4 × 25 GE or 2 × 50 GE |
| Uplink Ports | 8 × 400 GE QSFP-DD; supports splitting into 4 × 100 GE |
| CPU / Memory / Flash | 4-core 1.4 GHz CPU, 8 GB DRAM, 64 MB NOR Flash, 4 GB NAND Flash |
| Management Ports | RJ45 Console (9600 bit/s), RJ45 Ethernet management, USB 2.0 (reserved) |
| Cooling / Airflow | 6 pluggable fans; supports port-side intake or exhaust |
| Power Supply | AC, DC, or HVDC pluggable; supports 1+1 hot-swappable redundancy |
| Typical Power Consumption | ~560–693 W |
