Brand Name:
Huawei
Model Number:

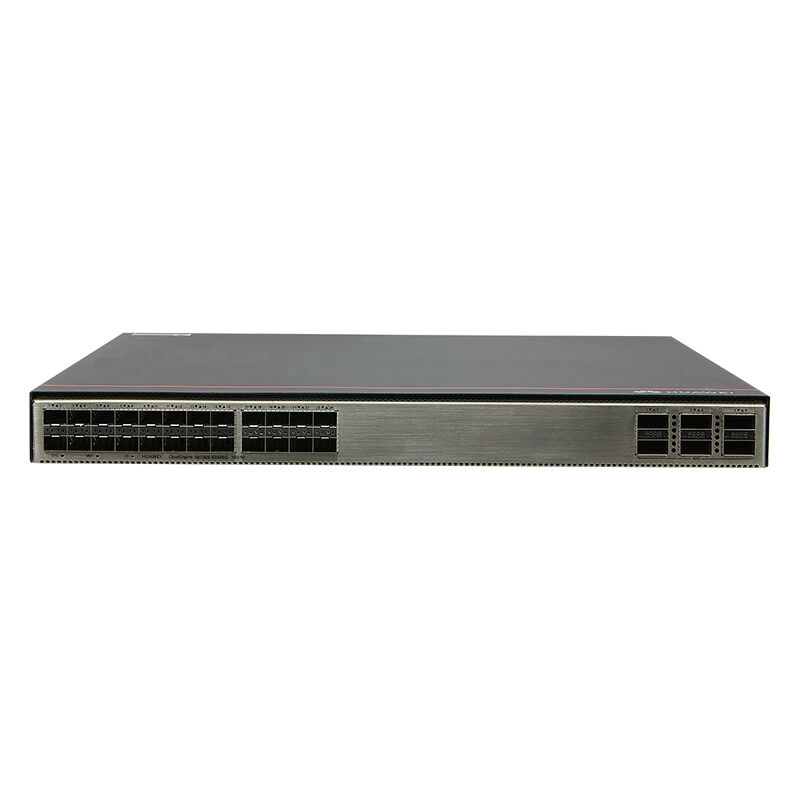

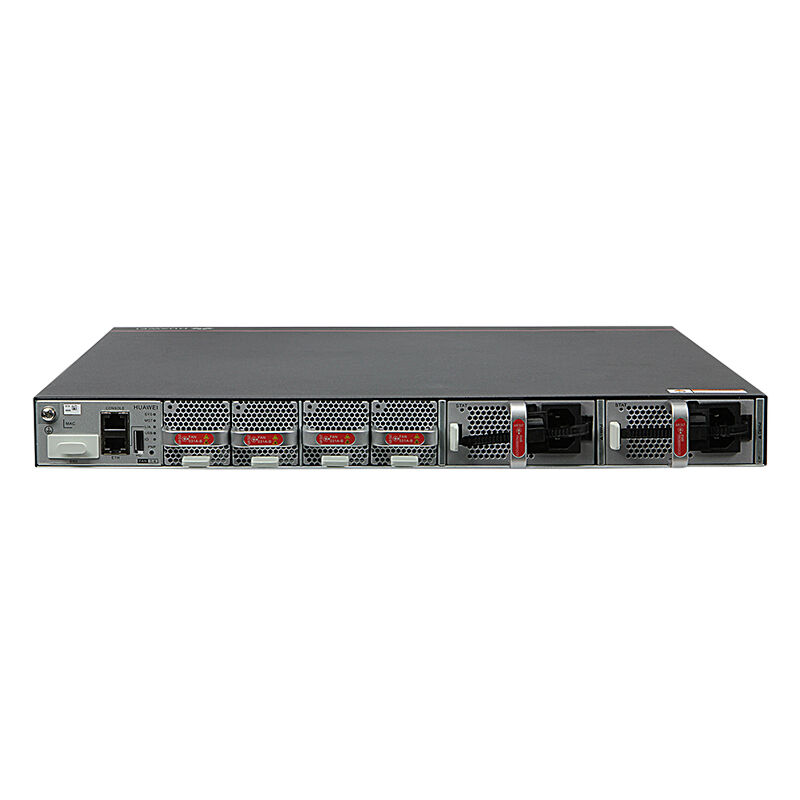

S6730S-S24X6Q-A
Document:
| Model | S6730S-S24X6Q-A |
| Part Number | 02353AJX/02353AJX-001/02353AJX-003/02353AJX-004 |
| Memory | 4 GB |
| Flash Memory | 2 GB total (view available size using display version command) |
| PoE Support | Not supported |
| Weight (with packaging) | 9.84 kg (21.69 lb) |
| Dimensions (H x W x D) | Basic: 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum: 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.) |
| Part Number | Heat Dissipation Mode | Maximum Input Current | Operating Temperature |
|---|---|---|---|
| 02353AJX | Heat dissipation with fan, intelligent fan speed adjustment | Depends on pluggable power modules | -5°C to +45°C (23°F to 113°F) at 0-1800 m altitude |
| 02353AJX-001 | Heat dissipation with fan, intelligent fan speed adjustment | Depends on pluggable power modules | -5°C to +45°C (23°F to 113°F) at 0-1800 m altitude |
| 02353AJX-003 | Air cooling for heat dissipation, intelligent fan speed adjustment | Depends on pluggable power modules | -5°C to +45°C (23°F to 113°F) at 0-1800 m altitude |
| 02353AJX-004 | Air cooling for heat dissipation, intelligent fan speed adjustment | Depends on pluggable power modules | -5°C to +45°C (23°F to 113°F) at 0-1800 m altitude |
| Model | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
| eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| LE2MGSC40DE0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC) |
| LE2MGSC40ED0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC) |
| SFP-GE-ZBXD1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm(Tx)/1490nm(Rx), 80km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx), 80km, LC) |
| SFP-GE-BXU1-SC | 1000Base, BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC) |
| CWDM-SFPGE-1471 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1471nm, 80km, LC) |
| CWDM-SFPGE-1491 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC) |
| CWDM-SFPGE-1511 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1511nm, 80km, LC) |
| CWDM-SFPGE-1531 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1531nm, 80km, LC) |
| CWDM-SFPGE-1551 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1551nm, 80km, LC) |
| CWDM-SFPGE-1571 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1571nm, 80km, LC) |
| CWDM-SFPGE-1591 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1591nm, 80km, LC) |
| CWDM-SFPGE-1611 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1611nm, 80km, LC) |
| DWDM-SFPGE-1560-61 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1560.61nm, 120km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-10G-iLR | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 1.4km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| OSX040N01 | Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 40km, LC) |
| SFP-10G-ER-1310 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 40km, LC) |
| SFP-10G-ZR | 10GBase-ZR Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 80km, LC) |
| SFP-10G-BXU1 | 10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1270nm/RX1330nm, 10km, LC) |
| SFP-10G-BXD1 | 10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1330nm/RX1270nm, 10km, LC) |
| SFP-10G-ER-SM1330-BIDI | Optical Transceiver, SFP+, 10G, BIDI Single-mode Module (TX 1330nm/RX 1270nm, 40km, LC) |
| SFP-10G-ER-SM1270-BIDI | Optical Transceiver, SFP+, 10G, BIDI Single-mode Module (TX 1270nm/RX 1330nm, 40km, LC) |
| SFP-10G-ZCW1471 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1471nm, 70km, LC) |
| SFP-10G-ZCW1491 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1491nm, 70km, LC) |
| SFP-10G-ZCW1511 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1511nm, 70km, LC) |
| SFP-10G-ZCW1531 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1531nm, 70km, LC) |
| SFP-10G-ZCW1551 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1551nm, 70km, LC) |
| SFP-10G-ZCW1571 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1571nm, 70km, LC) |
| SFP-10G-ZCW1591 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1591nm, 70km, LC) |
| SFP-10G-ZCW1611 | Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1611nm, 70km, LC) |
| QSFP-40G-SR4 | 40GBase-SR4 Optical Transceiver, QSFP+, 40G, Multi-mode (850nm, 0.15km, MPO) |
| QSFP-40G-iSR4 | 40GBase-iSR4 Optical Transceiver, QSFP+, 40G, Multi-mode (850nm, 0.15km, MPO) (Connect to four SFP+ Optical Transceiver) |
| QSFP-40G-eSR4 | 40GBase-eSR4 Optical Transceiver, QSFP+, 40G, Multi-mode (850nm, 0.3km, MPO) (Connect to four SFP+ Optical Transceiver) |
| QSFP-40G-iSM4 | 40GBase-iSM4 Optical Transceiver, QSFP+, 40G, Single-mode Module (1310nm, 1.4km, MPO) (Connect to four SFP+ Optical Transceiver) |
| QSFP-40G-eSM4 | 40GBase-eSM4 Optical Transceiver, QSFP+, 40G, Single-mode Module (1310nm, 10km, MPO) (Connect to four SFP+ Optical Transceiver) |
