Brand Name:
Huawei
Model Number:

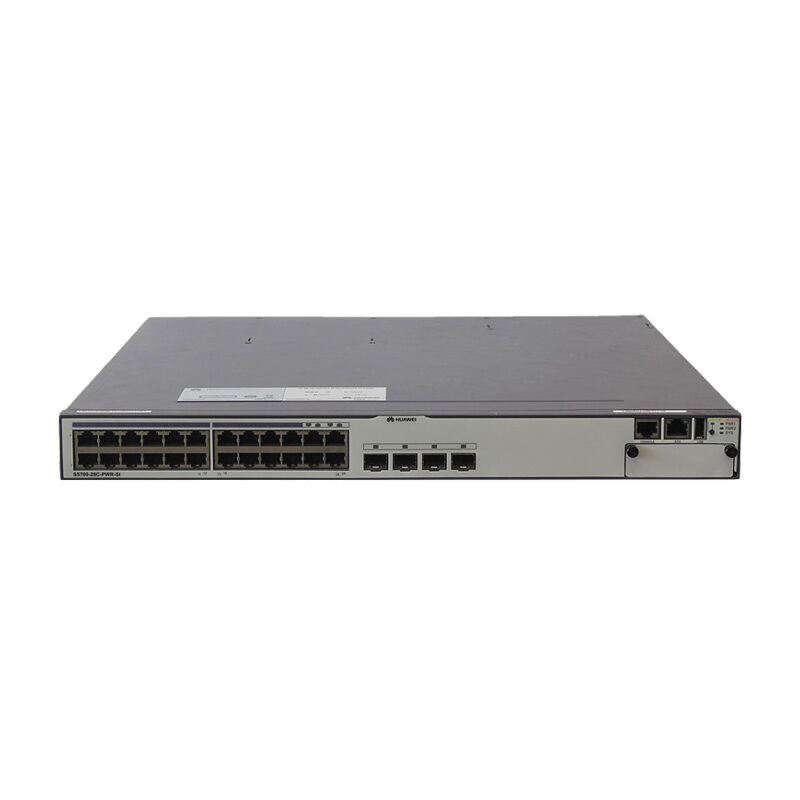

S5700-28C-SI
Document:
| Model | S5700-28C-SI |
|---|---|
| Part Number | 02352341 |
| Ports | 20 GE ports, 4 GE Combo ports |
| Extended Slots | 2 slots (1 for uplink subcard, 1 for stack card) |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| MAC Address Table | 16 MAC |
| Voltage | AC 120/230 V (50/60 Hz) |
| Power Supply | Double hot-swappable AC/DC |
| Power Consumption | < 56W |
| Forwarding Performance | 96 Mpps |
| Switching Capacity | 256 Gbit/s |
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm |
| Weight | 6.6 kg |
| PoE Support | Not supported |
| Model | Description |
|---|---|
| Power Modules | |
| LS5M100PWA00 | 150W AC Power Module (Gray) |
| LS5M100PWD00 | 150W DC Power Module (Gray) |
| Optical Transceivers | |
| OMXD30000 | SFP+, 10G, Multi-mode (850nm, 0.3km, LC) |
| OSX010000 | SFP+, 10G, Single-mode (1310nm, 10km, LC) |
| SFP-10G-USR | 10GBase-USR, SFP+, 10G, Multi-mode (850nm, 0.1km, LC) |
| Cards | |
| ES5D000X2S00 | 2 × 10 Gig SFP+ interface card (for S5700SI/EI series) |
| Feature | S5700-28C-SI | S5700-28C-PWR-SI |
|---|---|---|
| Fixed Ports | 24 × 10/100/1,000 Base-T | 24 × 10/100/1,000 Base-T |
| Extended Slots | 2 slots | 2 slots |
| PoE Support | Not supported | Supported |
| Power Consumption | < 56W | < 836W (PoE model) |
