Brand Name:
Huawei
Model Number:

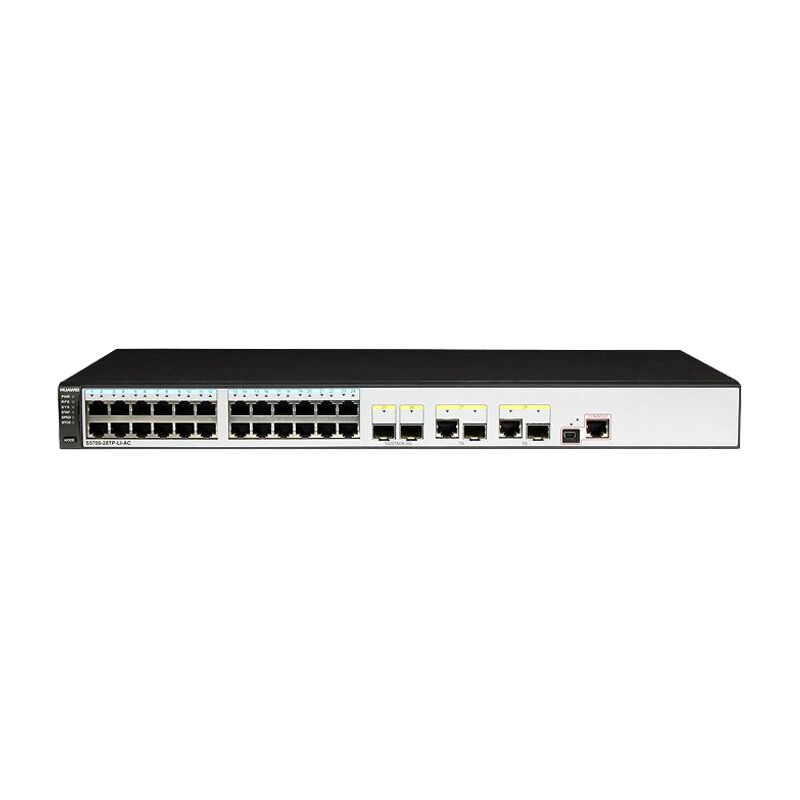

S5700-28TP-LI-AC
Document:
| Model | S5700-28TP-LI-AC |
| Part Number | 98010536 |
| Fixed Ports | 24 x 10/100/1000BASE-T Ethernet ports, 2 Gigabit SFP, and 2 dual-purpose 10/100/1000BASE-T or SFP ports |
| MAC Address Table Size | 16K MAC |
| Voltage Required | AC: Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 47/63 Hz |
| Power Device | AC power supply, supporting RPS |
| Power Consumption | < 26.4W |
| Forwarding Performance | 42 Mpps |
| Switching Capacity | 256 Gbps |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Weight | 4.1 kg |
| (1) | Twenty-four 10/100/1000BASE-T ports | (4) | One mini USB port |
| (2) | Two 1000BASE-X ports | (5) | One console port |
| (3) | Two combo ports |
| (1) | Ground screw | (3) | Jack for AC terminal locking latch |
| (2) | RPS socket | (4) | AC socket |
| Model | Description |
|---|---|
| FE-SFP Optical Transceiver | |
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC) |
| GE-SFP Optical Transceiver | |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| GE Copper Transceiver | |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| Models | S5700-28P-LI-AC | S5700-28P-PWR-LI | S5700-28TP-LI-AC | S5700-28TP-PWR-LI-AC |
|---|---|---|---|---|
| Fixed Ports | 24 x 10/100/1000BASE-T Ethernet ports, 4 x GE SFP ports | 24 x 10/100/1000BASE-T Ethernet ports, 4 x GE SFP ports | 24 x 10/100/1000BASE-T Ethernet ports, 4 x GE SFP ports, 2 x Combo 10/100/1000BASE-T Ethernet ports | 24 x 10/100/1000BASE-T Ethernet ports, 4 x GE SFP ports, 2 x Combo 10/100/1000BASE-T Ethernet ports |
| Power Supply | AC | AC | AC | AC |
| PoE | Not supported | Supported | Not supported | Supported |
| Forwarding Performance | 42 Mpps | 42 Mpps | 42 Mpps | 42 Mpps |
| Switching Capacity | 256 Gbps | 256 Gbps | 256 Gbps | 256 Gbps |
