Brand Name:
Huawei
Model Number:
S5735-S48S4XE-V2
Document:
| Model | S5735-S48S4XE-V2 |
|---|---|
| Part Number | 98012232 |

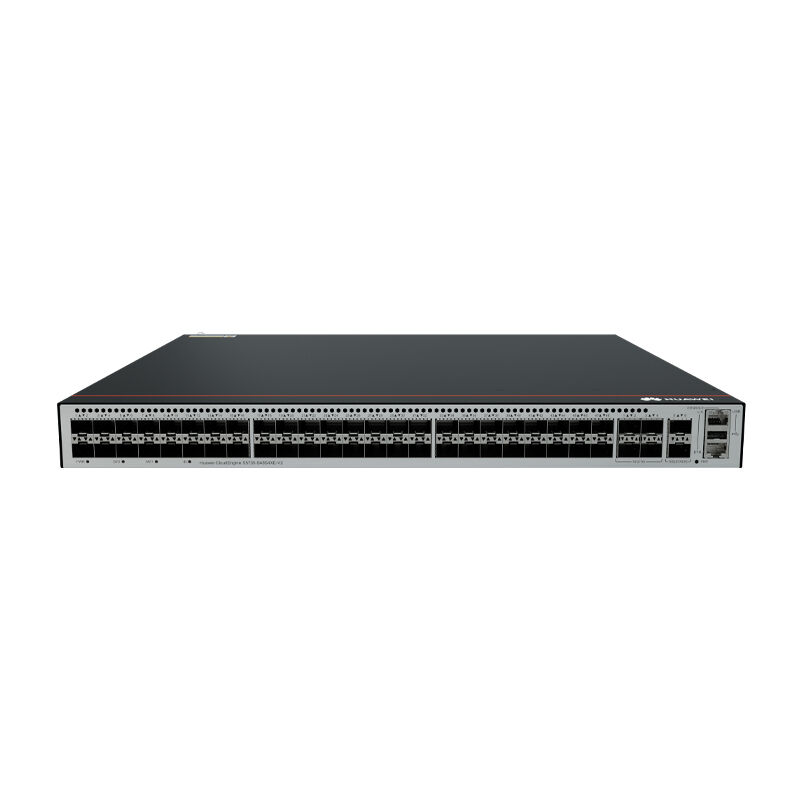

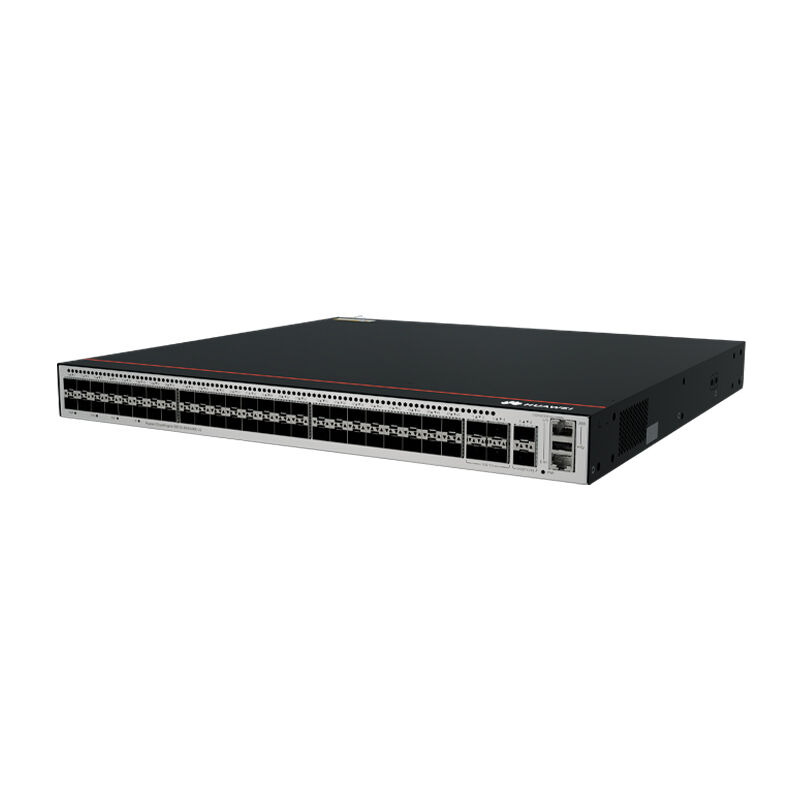

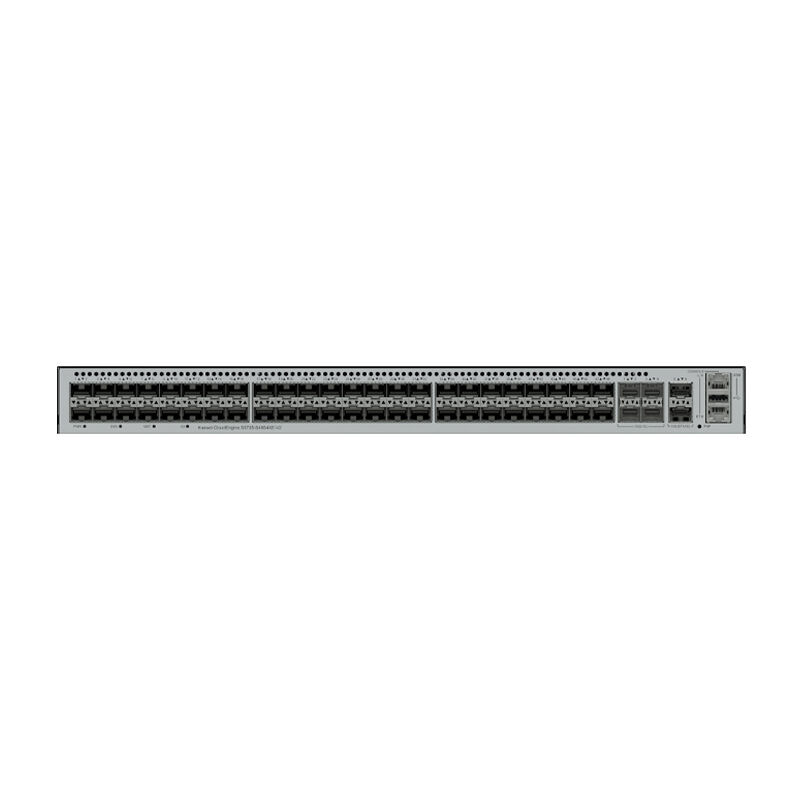

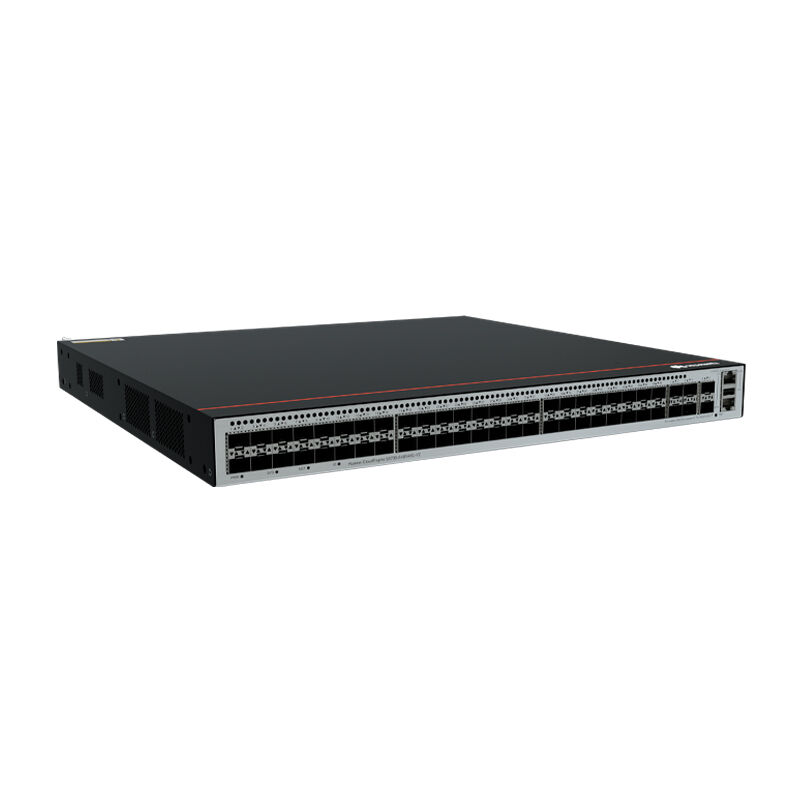

| Description | S5735-S48S4XE-V2 (48*GE SFP ports, 4*10GE SFP+ ports, without power module) |
| Dimensions without packaging (H x W x D) | Basic dimensions: 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions: 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.) |
| Weight with packaging | 7.1 kg (15.65 lb) |
| Typical power consumption | 72.3 W |

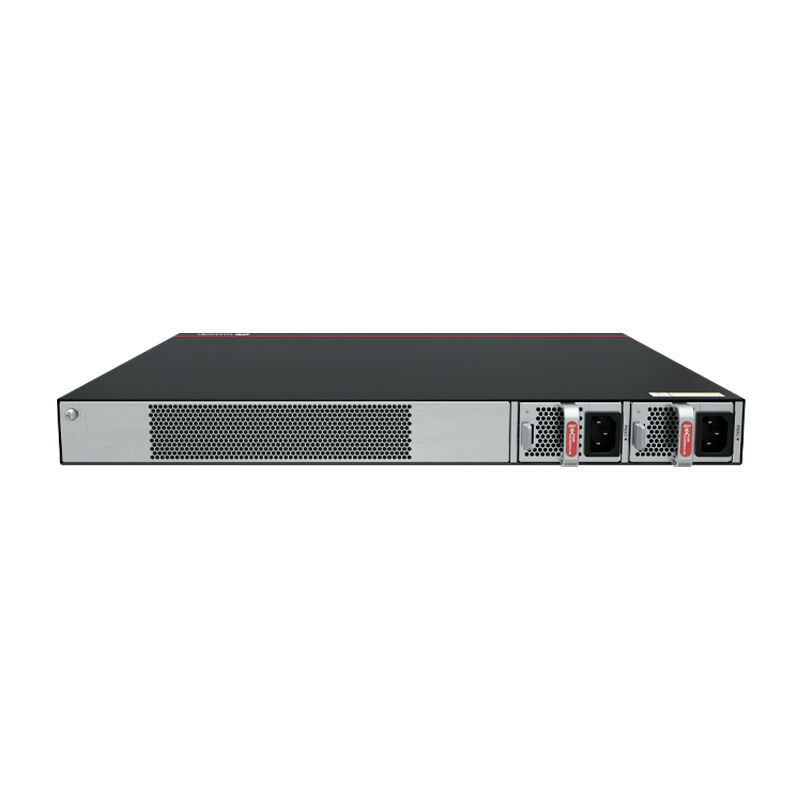

| Maximum power consumption | 96.40 W (with two 80 W AC power modules) 104.70 W (with two 180 W AC power modules) 130.05 W (with two 1200 W DC power modules) |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| PoE | Not supported |
| No. | Indicator | Name | Color | Status | Description |
|---|---|---|---|---|---|
| 1 | PWR | Power module indicator | - | Off | The switch is powered off. |
| Green | Steady on | The power supply is normal. | |||
| Yellow | Steady on | The switch has multiple power modules installed. Any of the following situations occurs in a power module slot: A power module is available in this slot but it is not connected to a power source. The power module in this slot has failed. | |||
| 2 | SYS | System status indicator | - | Off | The system is not running. |
| Green | Fast blinking | The system is starting. | |||
| Green | Steady on | During the system startup preparation phase, the SYS indicator is steady green, which lasts for a maximum of 30 seconds. | |||
| Green | Slow blinking | The system is running normally. | |||
| Red | Steady on | The system does not work normally after registration, or a fan alarm or a temperature alarm has been generated. | |||
| 3 | MST | Stack indicator | - | Off | The switch is not the master switch in a stack. |
| Green | Blinking | The switch is the master switch in a stack or a standalone switch. | |||
| 4 | ID | ID indicator | - | Off | The ID indicator is not used (default state). |
| Blue | Steady on | The indicator identifies the switch to maintain. The ID indicator can be turned on or off remotely to help field engineers find the switch to maintain. | |||
| 5 | - | Service port indicator | Each optical port has two single-color indicators. The one on the left is the ACT indicator (yellow), and the one on the right is the LINK indicator (green). Meanings of service port indicators vary in different modes. If a power failure occurs on a device's PCB board, indicators of the last four GE, 10GE, or 25GE optical ports on the device's front panel blink green cyclically at an interval of 1 second, with each indicator illuminating for 0.25 seconds. | ||
| 6 | L/A | ETH port indicator | - | Off | The ETH port is not connected. |
| Green | Steady on | The ETH port is connected. | |||
| Green | Blinking | The ETH port is sending or receiving data. | |||
| 7 | USB | USB-based deployment indicator | - | Off | No USB flash drive is installed, or the indicator fails. |
| Green | Steady on | USB-based deployment succeeds. If there is no deployment configuration file, deployment will be repeatedly performed. In this case, the indicator is also steady green. | |||
| Green | Blinking | USB-based deployment is in progress. | |||
| Red | Steady on | USB-based deployment fails. | |||
