Brand Name:
Huawei
Model Number:

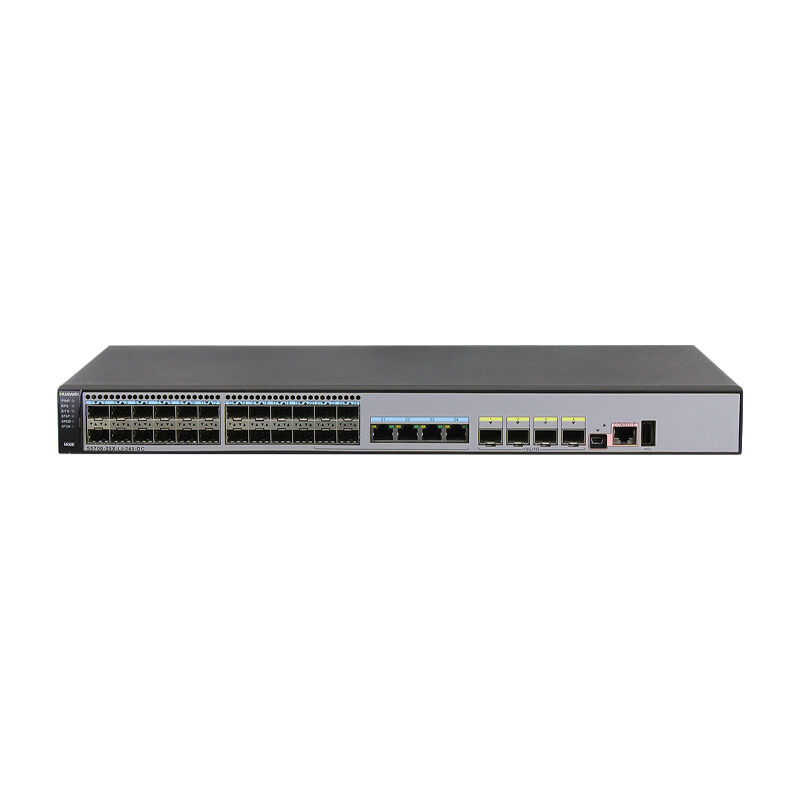

S5700-28X-LI-24S-DC
Document:
| Model | S5700-28X-LI-24S-DC |
|---|---|
| Part Number | 02355303 |
| Fixed Interfaces | 24 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports |
| Power Supply | DC model, supporting RPS |
| Forwarding Performance | 96 Mpps |
| Switching Capacity | 256 Gbit/s |
| Memory (RAM) | 256 MB |
| Flash | 200 MB |
| RPS | Supported |
| PoE | Not supported |
| Maximum Power Consumption | 57 W (100% throughput, full speed of fans) |
| Dimensions (W x D x H) | 442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.) |
| Weight | ≤ 5 kg (11.02 lb) |
| Model | Description |
|---|---|
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC) |
| Model | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| Model | Description |
|---|---|
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| Model | Description |
|---|---|
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| Model | S5700-28X-LI-24S-DC | S5700-28X-LI-DC | S5700-28P-LI-BAT |
|---|---|---|---|
| Fixed Interfaces | 24 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports | 24 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports | 24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports |
| Power Supply | DC model, supporting RPS | DC model, supporting RPS | AC power supply |
| Forwarding Performance | 96 Mpps | 96 Mpps | 42 Mpps |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s | 256 Gbit/s |
| Memory (RAM) | 256 MB | 256 MB | 256 MB |
| Flash | 200 MB | 200 MB | 200 MB |
| RPS | Supported | Supported | Not supported |
| PoE | Not supported | Not supported | Not supported |
| Maximum Power Consumption | 57 W | 42 W | 23 W |
