Brand Name:
Huawei
Model Number:

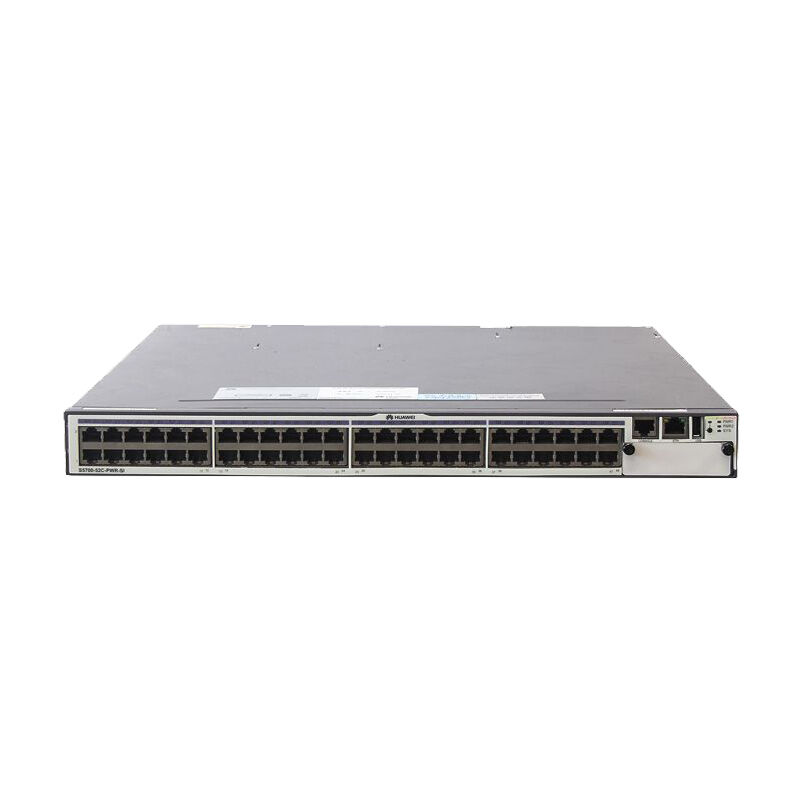

S5700-52C-PWR-SI
| Model | S5700-52C-PWR-SI |
|---|---|
| Part Number | 02354135 |
| Ports | 48 × 10/100/1,000 Base-T |
| Extended Slots | 2 extended slots, one for an uplink subcard and the other for a stack card |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| MAC Address Table Size | 16 MAC |
| Subcard Supported | 4 x 1,000 Base-X SFP subcard 2 x 10 GE SFP+ subcard 4 x 10 GE SFP+ subcard |
| Voltage Required | AC: Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 50/60 Hz |
| Power Device | Dual hot-swappable AC power supplies |
| Power Consumption Operational | <917W (PoE: 740W) |
| Forwarding Performance | 132 Mpps |
| Switching Capacity | 256 Gbit/s |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight | 6.2 kg |
| PoE | Supported |
| Model | Description |
|---|---|
| Power module | W0PSA5000 - 500W AC Power Module (gray) |
| Optical Transceivers |
OMXD30000 - Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) OSX010000 - Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) SFP-10G-USR - 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) eSFP-GE-SX-MM850 - Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) eSFP-GE-ZX100-SM1550 - eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| Copper Transceivers | SFP-1000BaseT - 1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m |
| Card | ES5D000X2S00 - 2 10 Gig SFP+ interface card (used in S5700SI and S5700EI series) |
| Models | S5700-52C-SI | S5700-52C-SI-AC | S5700-52C-PWR-SI |
|---|---|---|---|
| Fixed Ports | 48 x 10/100/1,000 Base-T | 48 x 10/100/1,000 Base-T | 48 x 10/100/1,000 Base-T |
| Extended Slots | 2 extended slots, one for an uplink subcard and the other for a stack card | 2 extended slots, one for an uplink subcard and the other for a stack card | 2 extended slots, one for an uplink subcard and the other for a stack card |
| Power Supply | Double hot-swappable AC/DC | Double hot-swappable AC/DC | Double hot-swappable AC, PoE+ |
| Forwarding Performance | 132 Mpps | 132 Mpps | 132 Mpps |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s | 256 Gbit/s |
| Power Consumption | < 78W | < 78W | < 917W (PoE: 740W) |
