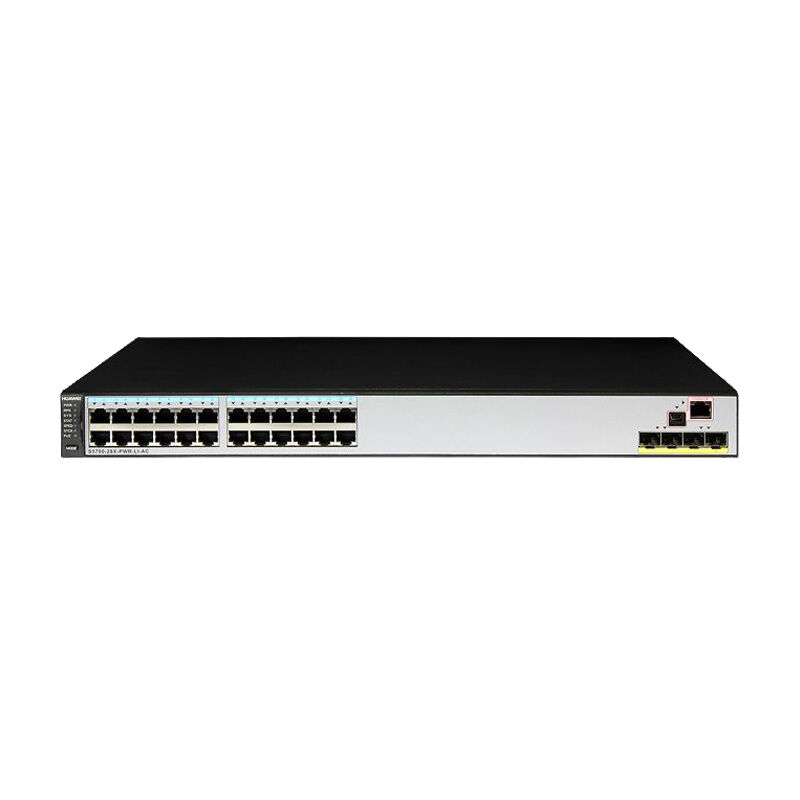

Name: Huawei Switch S5700-28X-PWR-LI-AC with 24 x 10/100/1,000 Base-T Ethernet ports 4 x 10 GE SFP+ ports and 370W PoE
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: S5700-28X-PWR-LI-AC
Price: 1087 USD
Availability: InStock

Home > Products > Huawei Network Switch >

Huawei Switch S5700-28X-PWR-LI-AC with 24 x 10/100/1,000 Base-T Ethernet ports 4 x 10 GE SFP+ ports and 370W PoE

24 x 10/100/1

000 Base-T Ethernet ports Huawei Switch

4 x 10 GE SFP+ ports Network Switch

370W PoE Gigabit Enterprise Switch

Brand Name:

Huawei

Model Number:

S5700-28X-PWR-LI-AC

Document:

huawei-s5700-28x-pwr-li-ac-...et.pdf

Chat Now

Request A Quote

Product Details

Highlight:

24 x 10/100/1

000 Base-T Ethernet ports Huawei Switch

4 x 10 GE SFP+ ports Network Switch

370W PoE Gigabit Enterprise Switch

Payment & Shipping Terms

Minimum Order Quantity

Price

$1087

Delivery Time

3-5 days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

160pcs

Huawei Network Switch S5732-H48UM2CC with 425GE SFP28 Ports 2100GE QSFP28 Ports and 1*Expansion Slot

Chat Now

Huawei Switch S1720-20GFR-4TP 16 Port Network Switch with Gigabit SFP and Dual-Purpose Ports for AC 110/220V

Chat Now

Huawei Network Switch LS-S2318TP-EI-DC with 16 Port 10/100 BASE-T and 2 Combo GE Ports featuring DC -48V Power QoS and Layer 2 Functionality

Chat Now

Huawei Switch S1720-28GWR-4X 24 Port Network Switch with 10 Gig SFP+ 512 MB Memory and Flash Memory

Chat Now

0086-571-86729517

info@hi-network.com

Chat Now

Product Description

Huawei Switch S5700-28X-PWR-LI-AC

The S5700-28X-PWR-LI-AC (Part Number: 02354217) is a next-generation energy-saving gigabit enterprise switch developed by Huawei. With front power sockets and compact 300mm depth cabinet installation, this switch enables front-panel maintenance while saving valuable space in small equipment rooms. Ideal for enterprise park access, network convergence, and gigabit data center applications, it features advanced energy conservation technology, twenty-four 10/100/1,000 Base-T Ethernet ports, four 10 GE SFP+ ports, and comprehensive PoE functionality to help enterprise customers build reliable and secure next-generation IT networks.

Technical Specifications

Model	S5700-28X-PWR-LI-AC
Part Number	02354217
Fixed Ports	24 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports
MAC Address Table Size	16 MAC
Voltage Required	AC: Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 47/63 Hz
Power Device	AC power supply, supporting RPS
Power Consumption Operational	< 448.8W (PoE: 370W)
Forwarding Performance	96 Mpps
Switching Capacity	256 Gbit/s
PoE	Supported
Dimensions (W x D x H)	442 mm x 220 mm x 43.6 mm
Weight	6.6 kg

Product Overview

Front Panel Details

Front Panel Components:
(1) Twenty-four PoE+ 10/100/1000BASE-T ports
(2) Four 10GE SFP+ ports
(3) One mini USB port
(4) One console port

Back Panel Details

Back Panel Components:
(1) Ground screw - used with a ground cable
(2) RPS socket - used with an RPS cable (not hot swappable)
(3) Jack for AC terminal locking latch
(4) AC socket - used with an AC power cable

Additional Notes: A PoE switch can have an RPS power supply connected to provide inputs for system power supply and PoE power supply. The two inputs are independent of each other. The RPS power supply can also be used as a backup of the system power supply when it does not provide PoE power. The AC terminal locking latch is not delivered with the switch.

Recommended Modules

Model	Description
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)
SFP-10G-USR	10G Base-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)

Model Comparison

Models	S5700-28X-LI-AC	S5700-28X-LI-24S-AC	S5700-28X-PWR-LI-AC
Fixed Ports	24 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports	24 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports	24 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports
Forwarding Performance	96 Mpps	96 Mpps	96 Mpps
Switching Capacity	256 Gbit/s	256 Gbit/s	256 Gbit/s
Power Supply	AC model and DC model, supporting RPS	AC model and DC model, supporting RPS	AC power supply, supporting RPS
Power Consumption	< 41W	< 60W	< 448.8W (PoE: 370W)
