Brand Name:
Huawei
Model Number:

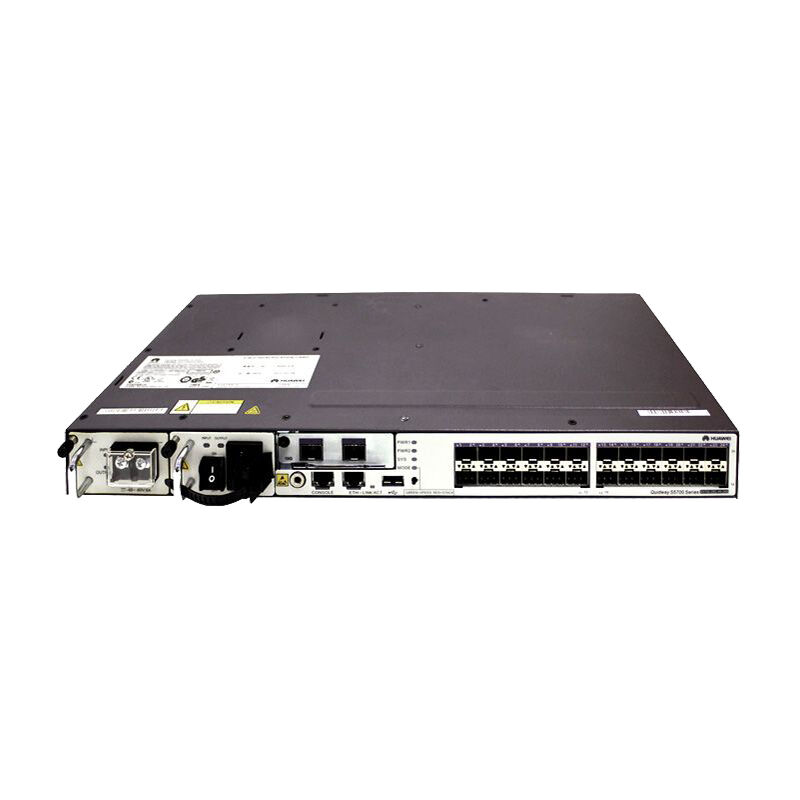

S5700-28C-HI-24S
Document:
| Model | S5700-28C-HI-24S |
|---|---|
| Part Number | 02353631 |
| Ports | 24 ×100/1,000 Base-X ports |
| Extended Slots | 1 extended slot |
| Memory (RAM) | 512 MB |
| Flash | 64 MB |
| MAC Address Table Size | 32 MAC |
| Subcard Supported |
4 x 1000 Base-X SFP subcard 2 x 10 GE SFP+ subcard 4 x 10 GE SFP+ subcard |
| Voltage Required |
AC: Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 50/60 Hz DC: Rated voltage range: -48V to -60V, DC Maximum voltage range: -36V to -72V, DC |
| Power Device | Dual hot-swappable AC/DC power supplies |
| Power Consumption Operational | <80 W |
| Forwarding performance | 96 Mpps |
| Switching capacity | 256 Gbit/s |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Package Weight | 4.2 kg |
| PoE | Not supported |
| Model | Description |
|---|---|
| Power Modules | |
| W0PSA1701 | 170W AC Power Module (Used In HI Series) |
| ES5M0PSD1700 | 170W DC power module (Used In HI Series) |
| Optical Transceivers | |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| Copper Transceivers | |
| SFP-1000BaseT | 1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m |
| Cards | |
| ES5D00X2SA00 | 2 10 Gig SFP+ interface card (used in S5700HI series) |
| ES5D00X4SA00 | 4 10 Gig SFP+ interface card (used in S5700HI series) |
| ES5D00G4SC00 | 4 Gig SFP interface card (used in S5700HI series) |
| Models | S5700-28C-HI | S5700-28C-HI-AC | S5700-28C-HI-24S |
|---|---|---|---|
| Fixed Ports | 24 x 10/100/1,000 Base-T | 24 x 10/100/1,000 Base-T | 24 x 100/1,000 Base-X |
| Extended Slots | 1 extended slot | 1 extended slot | 1 extended slot |
| Power Supply | Double hot-swappable AC/DC | Double hot-swappable AC/DC | Double hot-swappable AC |
| Forwarding Performance | 96 Mpps | 96 Mpps | 96 Mpps |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s | 256 Gbit/s |
| Power Consumption | <76W | <76W | <80W |
