Brand Name:
Huawei
Model Number:
S5735-L24T4S-A-V2
Document:
| Model | S5735-L24T4S-A-V2 |
|---|---|
| Part Number | 98012004 |

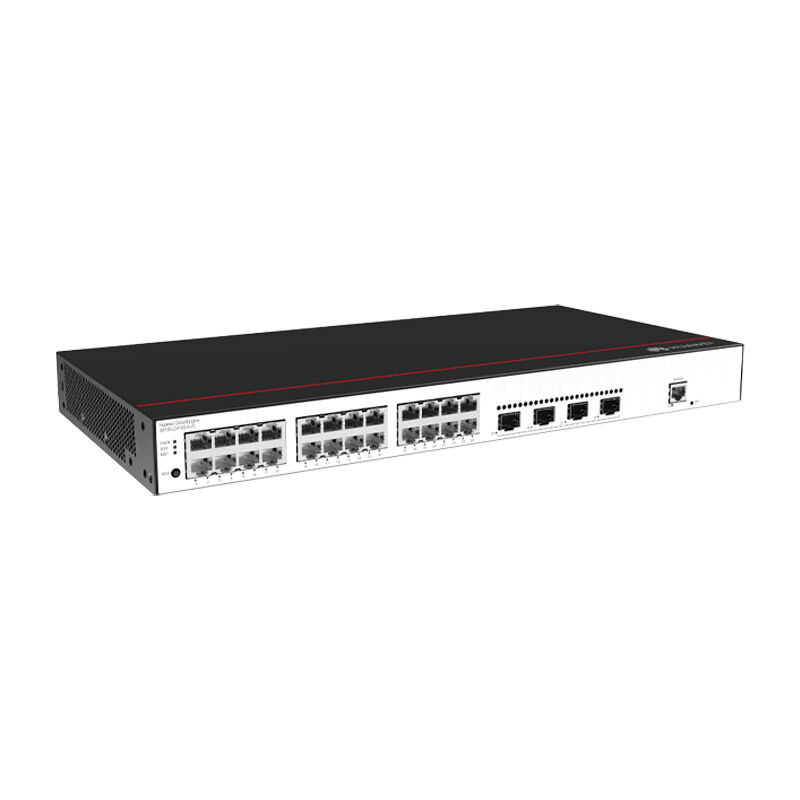

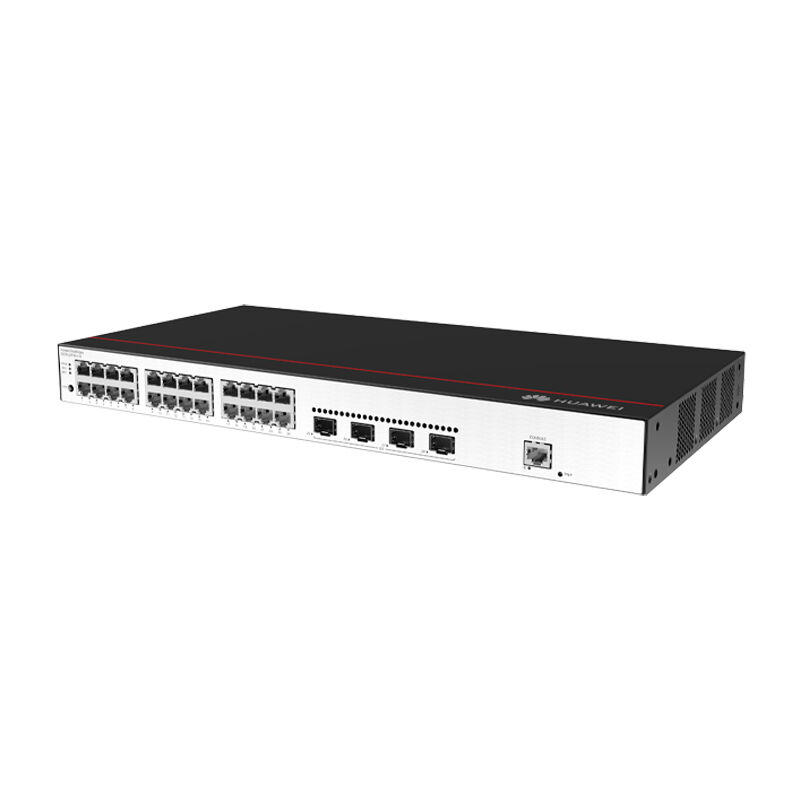

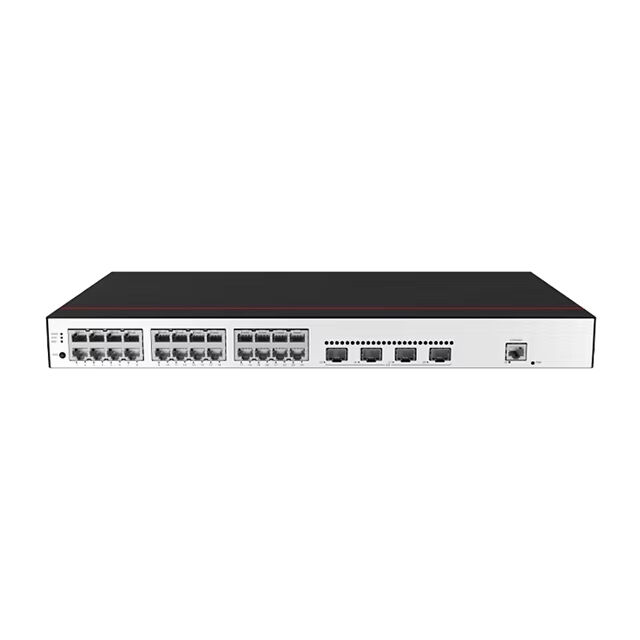

| Description | S5735-L24T4S-A-V2 (24*10/100/1000BASE-T ports, 4*GE SFP ports, built-in AC power) |
| Dimensions without packaging (H x W x D) | Basic dimensions: 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions: 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Weight with packaging | 3.44 kg (7.58 lb) |
| Typical power consumption | 26.37 W |
| Maximum power consumption | 34.04 W |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| PoE | Not supported |
| Model | S5735-L24T4S-A-V2 |
|---|---|
| Part Number | 98012004 |
| Description | S5735-L24T4S-A-V2 (24*10/100/1000BASE-T ports, 4*GE SFP ports, built-in AC power) |
| Dimensions without packaging (H x W x D) | Basic dimensions: 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions: 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height | 1 U |
| Weight without packaging | 2.32 kg (5.11 lb) |
| Weight with packaging | 3.44 kg (7.58 lb) |
| Typical power consumption | 26.37 W |
| Typical heat dissipation | 89.98 BTU/hour |
| Maximum power consumption | 34.04 W |
| Maximum heat dissipation | 116.15 BTU/hour |
| Static power consumption | 19.00 W |
| MTBF | 70.75 years |
| MTTR | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) | 47 dB(A) |
| Noise at normal temperature (acoustic pressure) | 35 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Long-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on operating temperature variation rate | When altitude is 1800-5000 m (5906-16404 ft.), highest operating temperature reduces by 1°C (1.8°F) every 220 m (722 ft.) increase. Devices cannot start when temperature is below 0°C (32°F). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude | 0-5000 m (0-16404 ft.) |
| Storage altitude | 0-5000 m (0-16404 ft.) |

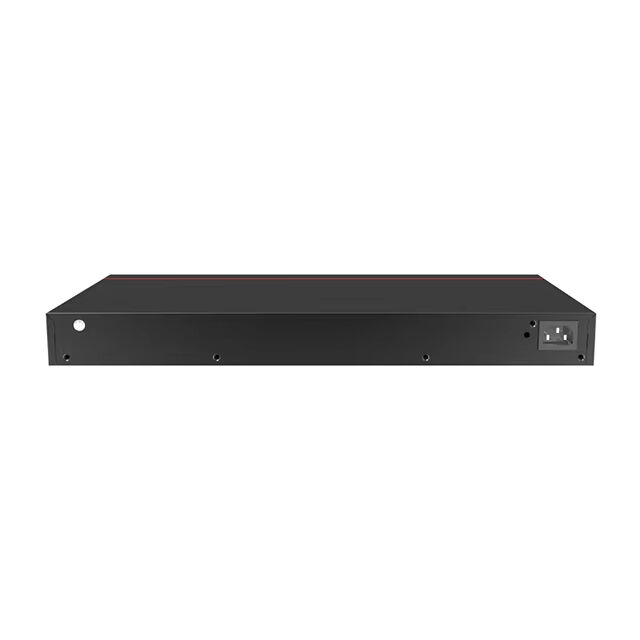

| Power supply mode | AC built-in |
| Rated input voltage | AC input: 100-240 V AC; 50/60 Hz |
| Input voltage range | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current | 0.8 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
