Brand Name:
Huawei
Document:

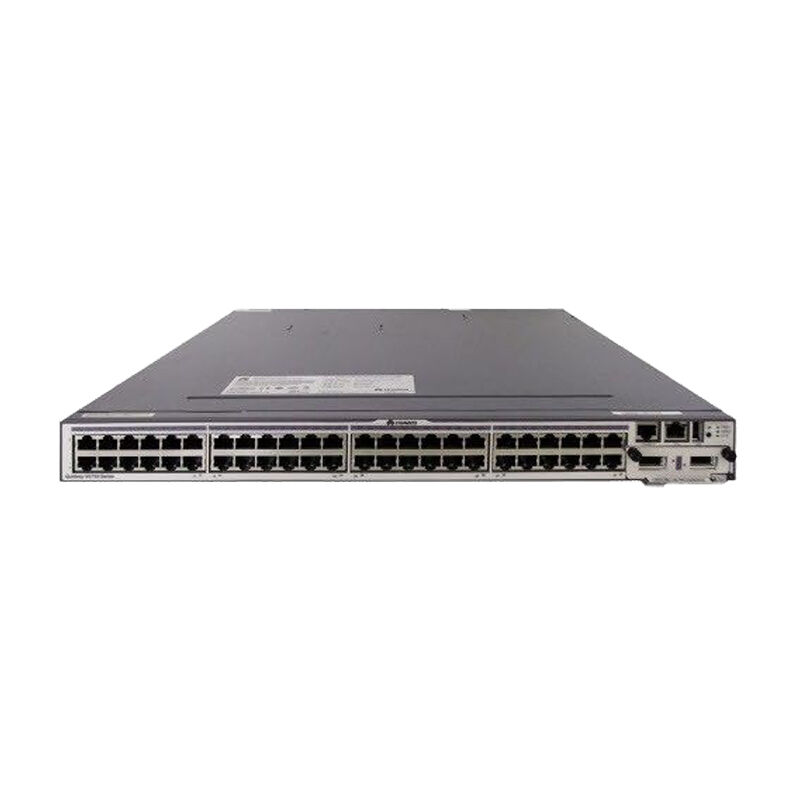

| Model | S5700-52C-SI |
|---|---|
| Part Number | 02352356 |
| Fixed Interfaces | 48 Ethernet 10/100/1,000 ports |
| Subcards Supported | 4 x 1,000 Base-X SFP subcard, 2 x 10 GE SFP+ subcard, and 4 x 10 GE SFP+ subcard |
| Extended Slots | Two extended slots (one for uplink subcard, one for stack card) |
| Power Supply | Double hot swappable AC/DC power supplies |
| Forwarding Performance | 132 Mpps |
| Switching Capacity | 256 Gbit/s |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| RPS | Not supported |
| PoE | Not supported |
| Maximum Power Consumption | 78 W (100% throughput, full fan speed) |
| Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.) |
| Weight | Empty: ≤ 5 kg (11.02 lb) Fully loaded: ≤ 8.5 kg (18.74 lb) |
| Model | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| Model | Description |
|---|---|
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| Model | Description |
|---|---|
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| ES5D000X2S00 | 2 10 Gig SFP+ interface card (used in S5700SI and S5700EI series) |
| Feature | S5700-52C-SI | S5700-52C-EI |
|---|---|---|
| Fixed Interfaces | 48 Ethernet 10/100/1,000 ports | 48 x 10/100/1,000 Base-T ports |
| Subcards Supported | 4 x 1,000 Base-X SFP subcard, 2 x 10 GE SFP+ subcard, and 4 x 10 GE SFP+ subcard | 4 x 1,000 Base-X SFP subcard, 2 x 10 GE SFP+ subcard, and 4 x 10 GE SFP+ subcard |
| Extended Slots | Two extended slots (one for uplink subcard, one for stack card) | Two extended slots (one for uplink sub-card, one for stack card) |
| Power Supply | Double hot swappable AC/DC power supplies | Double hot-swappable AC/DC power supplies |
| Forwarding Performance | 132 Mpps | 132 Mpps |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s |
| Memory (RAM) | 256 MB | 256 MB |
| Flash | 32 MB | 32 MB |
| RPS | Not supported | Not supported |
| PoE | Not supported | Not supported |
| Maximum Power Consumption | 78 W | < 88W |
