Brand Name:
Huawei
Model Number:
S5710-52C-PWR-EI
Document:
| Model | S5710-52C-PWR-EI |
| Part Number | 02355886 |
| Fixed Ports | 48 x 10/100/1,000 Base-T 4 x 10 GE SFP+ |
| Extended Slots | 2 extended slots |
| Memory (RAM) | 512 MB |
| Flash | 200 MB |
| MAC Address Table Size | 32K MAC |
| Forwarding Performance | 192 Mpps |
| Switching Capacity | 416 Gbit/s |
| Power Supply | AC Double hot-swappable AC power supplies |
| Voltage Required | AC: Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 50/60 Hz |
| Power Consumption | < 1,043W with two 580W |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| PoE | Supported |

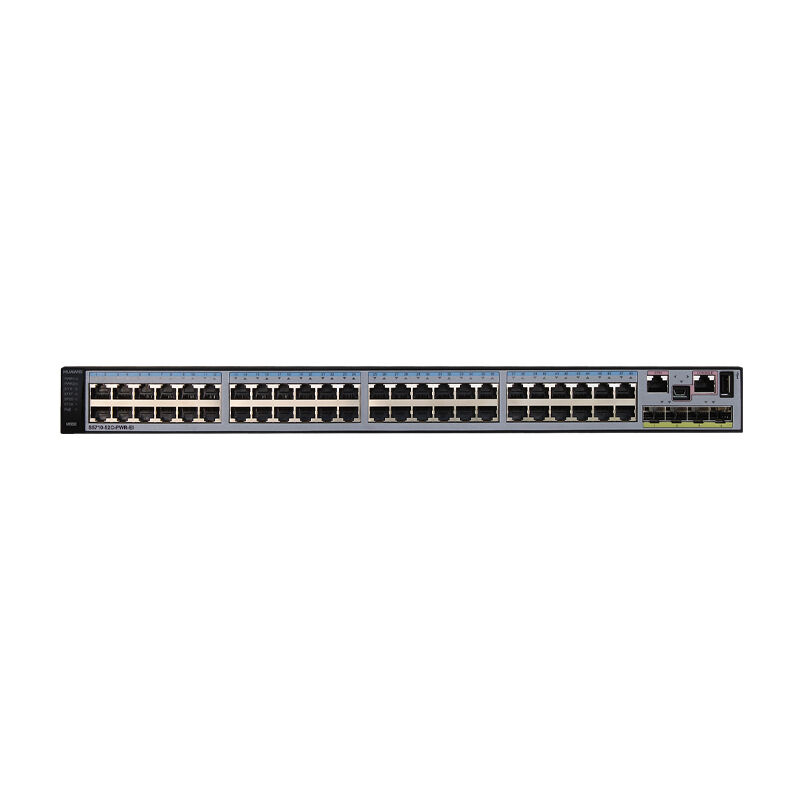

| (1) | Forty-eight PoE+ 10/100/1000BASE-T ports |
| (2) | Four 10GE SFP+ ports |
| (3) | One ETH management port |
| (4) | One mini USB port |
| (5) | One console port |
| (6) | One USB port |

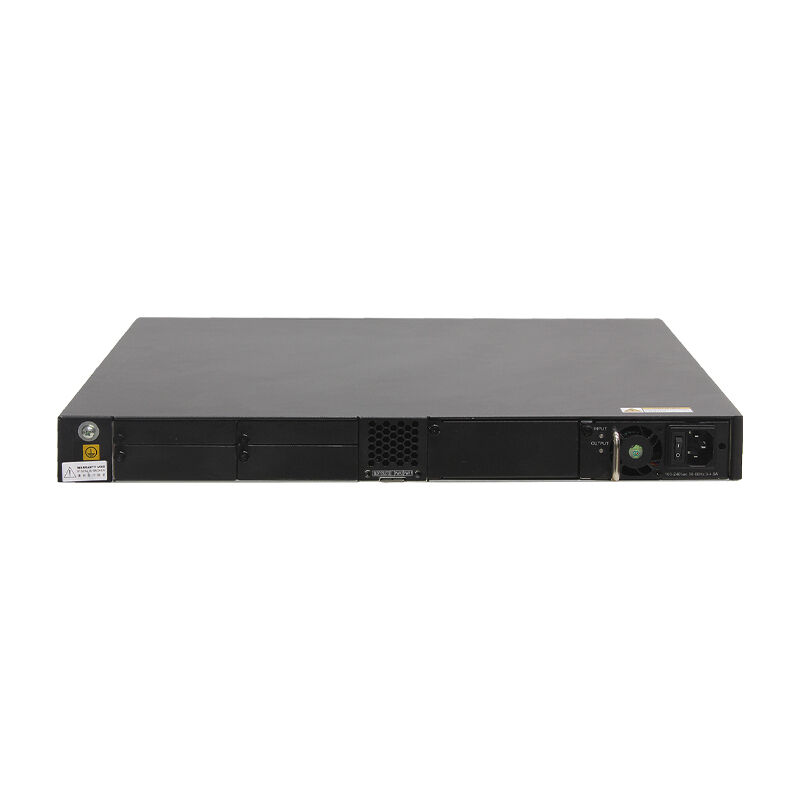

| (7) | Ground screw |
| (8) | Rear card slot 1 |
| (9) | Rear card slot 2 |
| (10) | ESN label |
| (11) | Power module slot 2 |
| (12) | Power module slot 1 |
| Model | Description |
| W2PSA0580 | 580W AC power module |
| W2PSA1150 | 1150W AC Power Module |
| Model | Description |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| Model | Description |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| Model | Description |
| ES5D21X02S00 | 2 10 Gig SFP+ interface card (used in S5710EI series) |
| ES5D21G08S00 | 8 Gig SFP interface card (used in S5710EI series) |
| ES5D21G08T00 | 8 Ethernet 10/100/1000 ports interface card (used in S5710EI series) |
| Models | S5710-52C-EI | S5710-52C-EI-AC | S5710-52C-PWR-EI | S5710-52C-PWR-EI-AC |
|---|---|---|---|---|
| Fixed Ports | 48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+ |
| Extended Slots | 2 extended slots for uplink subcards | 2 extended slots for uplink subcards | 2 extended slots for uplink subcards | 2 extended slots for uplink subcards |
| Power Supply | Double hot-swappable AC/DC | AC power supply | Double hot-swappable AC power supplies | Double hot-swappable AC power supplies |
| Forwarding Performance | 192 Mpps | 192 Mpps | 192 Mpps | 192 Mpps |
| Switching Capacity | 416 Gbit/s | 416 Gbit/s | 416 Gbit/s | 416 Gbit/s |
| Power Consumption | < 165W | < 165W | PoE model: < 1,043W with two 580W AC supplies (PoE: 740W) or < 1,625W with two 1,150W AC supplies (PoE: 1,440W) | PoE model: < 1,043W with two 580W AC supplies (PoE: 740W) or < 1,625W with two 1,150W AC supplies (PoE: 1,440W) |
