Brand Name:
Huawei
Model Number:

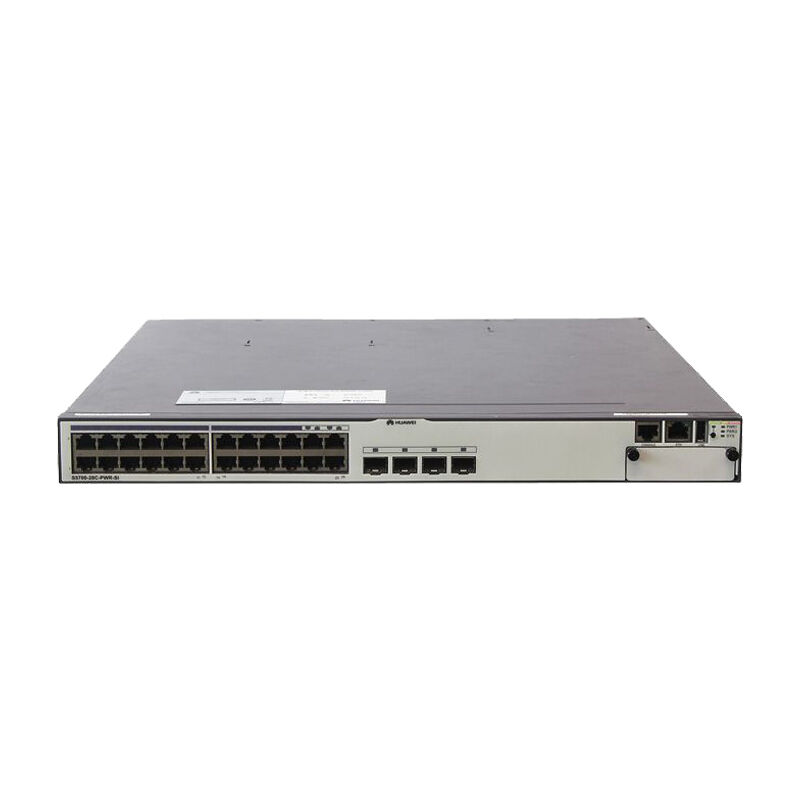

S5700-28C-PWR-SI
Document:
| Model | S5700-28C-PWR-SI |
| Part Number | 02354137 |
| Ports | 24 × 10/100/1,000 Base-T ports |
| Extended Slots | 2 extended slots, one for an uplink subcard and the other for a stack card |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| MAC Address Table Size | 16 MAC |
| Subcard Supported |
4 x 1,000 Base-X SFP subcard 2 x 10 GE SFP+ subcard 4 x 10 GE SFP+ subcard |
| Voltage Required |
AC: Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 50/60 Hz |
| Power Device | Double hot-swappable AC power supplies |
| Power Consumption Operational | < 836W (PoE: 740W) |
| Forwarding performance | 96 Mpps |
| Switching capacity | 256 Gbit/s |
| Dimensions (W × D × H) | 442 mm × 420 mm × 43.6 mm |
| Weight | 8.2 kg |
| PoE | Supported |
| Model | Description |
|---|---|
| Power Module | |
| W0PSA5000 | 500W AC Power Module (gray) |
| Optical Transceivers | |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) |
| eSFP-GE-ZX100-SM1550 | eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC) |
| Copper Transceivers | |
| SFP-1000BaseT | 1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m |
| Card | |
| ES5D000X2S00 | 2 10 Gig SFP+ interface card (used in S5700SI and S5700EI series) |
| Models | S5700-28C-SI | S5700-28C-SI-AC | S5700-28C-PWR-SI |
|---|---|---|---|
| Fixed Ports | 24 × 10/100/1,000 Base-T ports, 4 combo ports | 24 × 10/100/1,000 Base-T ports, 4 combo ports | 24 × 10/100/1,000 Base-T ports, 4 combo ports |
| Extended Slots | 2 extended slots | 2 extended slots | 2 extended slots |
| Power Supply | Double hot-swappable AC/DC | Double hot-swappable AC/DC | Double hot-swappable AC, PoE+ |
| Forwarding Performance | 96 Mpps | 96 Mpps | 96 Mpps |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s | 256 Gbit/s |
| Power Consumption | < 56W | < 56W | < 836W (PoE: 740W) |
