Brand Name:
Huawei
Model Number:
S5720-36C-EI-28S-DC
Document:
| Model | S5720-36C-EI-28S-AC |
|---|---|
| Part Number | 02350NHN |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| PoE | Not supported |
| Weight with packaging [kg(lb)] | 9.7 kg (21.39 lb) |
| Dimensions (H x W x D) |
Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |

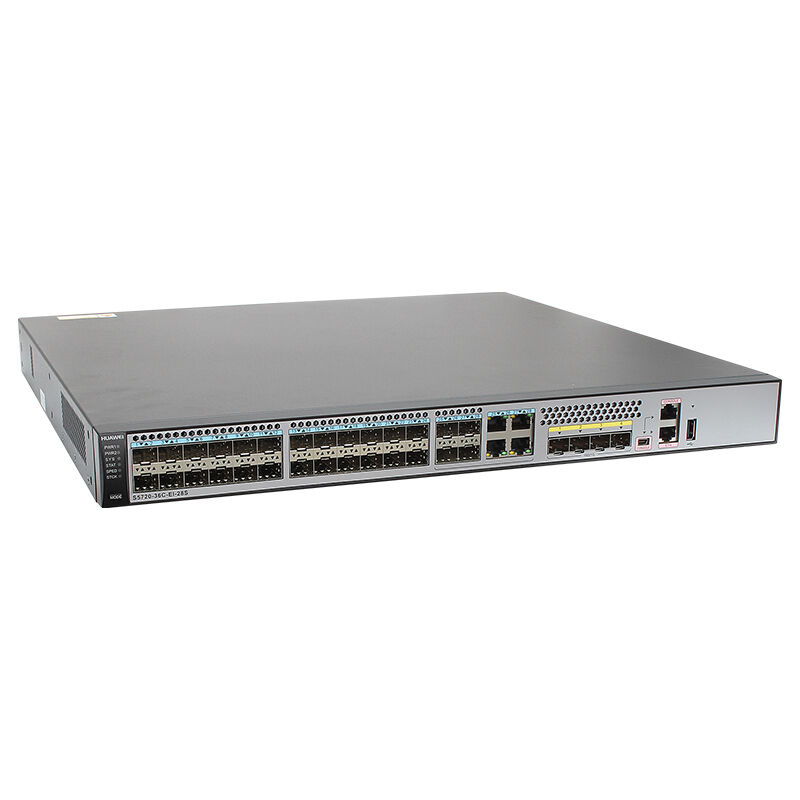

| ① | Twenty-four 100/1000BASE-X ports |
|---|---|
| ② | Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
| ③ | Four 10GE SFP+ ports |
| ④ | One mini USB port |
| ⑤ | One console port |
| ⑥ | One ETH management port |
| ⑦ | One USB port |

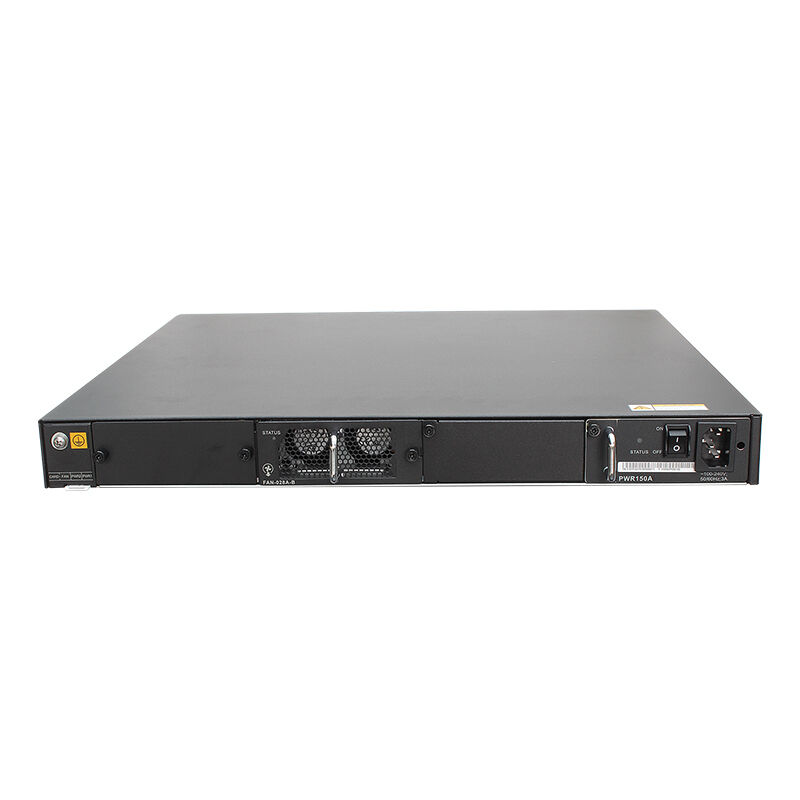

| ⑧ | Ground screw |
| ⑨ | ESN label |
| ⑩ | Rear card slot |
| ⑪ | Fan slot |
| ⑫ | Power module slot 2 |
| ⑬ | Power module slot 1 |
| FE-SFP Optical Transceiver | |
|---|---|
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) |
| GE-SFP Optical Transceiver | |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
| 10G-SFP+ Optical Transceiver | |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.1km,LC) |
| OMXD30000 | Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm,10km,LC) |
| GE Copper Transceiver | |
| SFP-1000BaseT | Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
| 10GE Interface Card | |
| ES5D21X02T01 | 2 10 Gig RJ45 Interface Card(used in S5720EI series) |
| ES5D21X02S01 | 2 10 Gig SFP+ Interface Card(used in S5720EI series) |
| Stack Card | |
| ES5D21VST000 | Dedicated stack card with 2*QSFP+ interface(Including one PCS of 1M QSFP+ cable ,Used in S5720EI series) |
| Product Code | S5720-36C-EI-28S-DC | S5720-32P-EI-AC | S5720-32X-EI-24S-DC |
|---|---|---|---|
| Switching Capacity | 598 Gbit/s | 598 Gbit/s | 598 Gbit/s |
| Forwarding Performance | 132 Mpps | 48 Mpps | 102 Mpps |
| Fixed Interfaces | 28 x 100/1,000 Base-X SFP ports, 4 x combo 10/100/1,000 Base-T Ethernet ports, and 4 x 10G SFP+ ports | 24 x 10/100/1,000 Base-T, 4 x 100/1,000 Base-X SFP, 4 Gig SFP | 24 x 100/1,000 Base-X SFP ports, 4 x 10/100/1,000 Base-T Ethernet ports, and 4 x 10G SFP+ ports |
| Extended Slot | One extended slot supporting a service subcard or stack card | No | No |
| Dimensions (W x D x H) | 442 mm x 420 mm x 44.4 mm | 442 mm x 220 mm x 43.6 mm | 442.0 mm x 220.0 mm x 43.6 mm |
| Front Power Input | Yes | Yes | No |
