Brand Name:
Huawei
Model Number:
AR6710-L8T3TS1X2
Document:
| Model | AR6710-L8T3TS1X2 |
|---|---|
| Part Number | 02354PUH |
| Description | 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB 2.0, 2*SIC |
| First Supported Version | V600R022C00 |
| Memory | 4 GB |
| NAND Flash | 2 GB |
| Typical Power Consumption | 27 W |
| Maximum Power Consumption | 33 W |

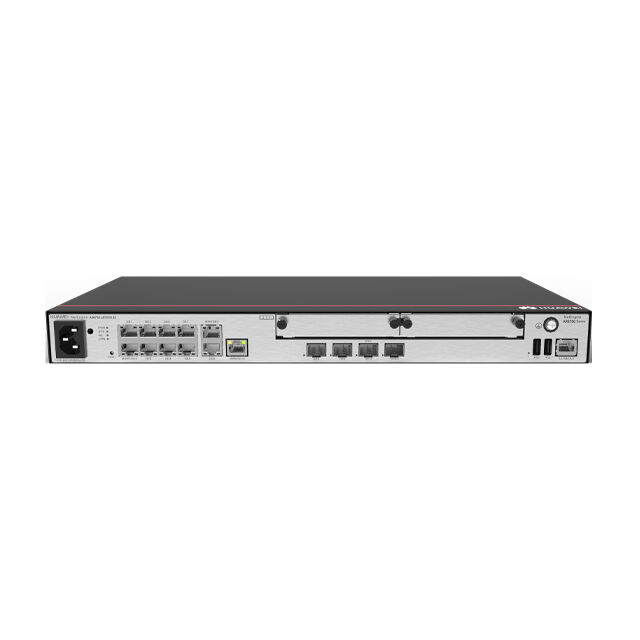

| (1) | Product model silkscreen | (8) | RESET button |
| (2) | LAN interfaces: eight GE electrical interfaces (GE0 to GE7) | (9) | LAN interface: GE combo interface (GE8) |
| (3) | WAN interfaces: two GE combo interfaces (GE9 and GE10) | (10) | WAN interface: one 10GE optical interface (10GE0) |
| (4) | Two SIC slots | (11) | USB 2.0 interface (host) |
| (5) | Ground point | (12) | USB 2.0 interface (host) |
| (6) | AC power socket | (13) | Console interface |
| (7) | Jack for power cable locking strap |
| (1) | From top to bottom: PWR indicator SYS indicator HA indicator CTRL indicator | (5) | GE optical interface indicator (WAN) |
| (2) | GE electrical interface indicators (LAN) | (6) | 10GE optical interface indicator (WAN) |
| (3) | GE electrical interface indicators (WAN) | (7) | ACT (USB) indicator |
| (4) | GE optical interface indicator (LAN) |
| Specification | Details |
|---|---|
| Model | AR6710-L8T3TS1X2 |
| Part Number | 02354PUH |
| Description | 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB 2.0, 2*SIC |
| Installation Type | Rack, Work bench, Against the wall |
| Chassis Height [U] | 1 U |
| Dimensions without Packaging | Basic: 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.) Maximum: 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.) |
| Dimensions with Packaging | 90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.) |
| Weight with Packaging | 4.6 kg (10.12 lb) |
| Weight without Packaging | 3.2 kg (7.04 lb) |
| CPU | 1.4 GHz, quad-core |
| Memory | 4 GB |
| NAND Flash | 2 GB |
| Console Port | RJ45 |
| RTC | Supported |
| LAN Ports | 8 x GE electrical, 1 x GE combo |
| WAN Ports | 1 x 10GE SFP+, 2 x GE combo |
| Service Board Slots | 2 |
| SIC Slots (default/maximum) | 2/2 |
| WSIC Slots (default/maximum) | 0/1 |
| IP Rating | IP20 |
| MTBF | 41.89 years |
| MTTR | 2 hours |
| Availability | 0.9999945502 |
| Typical Power Consumption | 27 W |
| Maximum Power Consumption | 33 W |
| Power Supply Mode | AC built-in |
| Number of Power Modules | 1 |
| Rated Input Voltage | 100 V to 240 V, 50 Hz/60 Hz |
| Input Voltage Range | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum Input Current | 2 A |
| Maximum Output Power | 70 W |
| Heat Dissipation Mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at Normal Temperature | 45.3 dB(A) |
| Long-term Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Long-term Operating Relative Humidity | 5% RH to 95% RH, non-condensing |
| Long-term Operating Altitude | < 5000 m (16404.2 ft.) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature Alarm | Supported |
