Name: Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: CE9855-32DQ-B
Price: 4550 USD
Availability: InStock

Home > Products > Huawei Network Switch >

Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis

32*400GE QSFP-DD Ports Huawei CE9855-32DQ-B

25.6 Tbps Switching Capacity CloudEngine 9800 Series Switch

1U Chassis Height Data Center Switch

Brand Name:

Huawei

Model Number:

CE9855-32DQ-B

Document:

huawei-ce9855-32dq-b-brochu...et.pdf

Chat Now

Request A Quote

Product Details

Description:

CE9855-32DQ Switch (32*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Intake)

Condition:

New Original; In Stock

Highlight:

32*400GE QSFP-DD Ports Huawei CE9855-32DQ-B

25.6 Tbps Switching Capacity CloudEngine 9800 Series Switch

1U Chassis Height Data Center Switch

Payment & Shipping Terms

Minimum Order Quantity

Price

$4550

Delivery Time

3-5 work days

Payment Terms

D/P,T/T,Western Union

Supply Ability

230

Huawei CE5855E-48T4S2Q-B Network Switch with 48 GE RJ45 Ports 4 10GE SFP+ and 2 40GE QSFP+ Ports

Chat Now

Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis

Chat Now

Huawei CloudEngine Switch S5731S-S24P4X-A with 2410/100/1000BASE-T Ports 410GE SFP+ Ports and PoE+ Support

Chat Now

Huawei CloudEngine Switch S5731S-S48P4X-A with 4810/100/1000BASE-T Ports 410GE SFP+ Ports and PoE+ Support

Chat Now

0086-571-86729517

info@hi-network.com

Chat Now

Product Description

Huawei CE9855-32DQ-B Data Center Switch

CloudEngine 9800 series switches are high-performance 100G Ethernet switches designed for data center networks, featuring high-density 100 GE ports and low latency. Compatible with CloudEngine 16800, 12800, 8800, 6800, and 5800 series, these switches build elastic, virtualized, high-quality fabrics for demanding cloud-computing data center requirements.

Quick Specifications

Model	CE9855-32DQ-B
Part Number	02355YSF
Description	CE9855-32DQ switch (32400GE QSFP-DD, 2AC Power Modules, 6*Fans, Port-side Intake)
Memory	16 GB
Flash Memory	128 MB
Static Power Consumption	453 W
Static Heat Dissipation	1546 BTU/hour

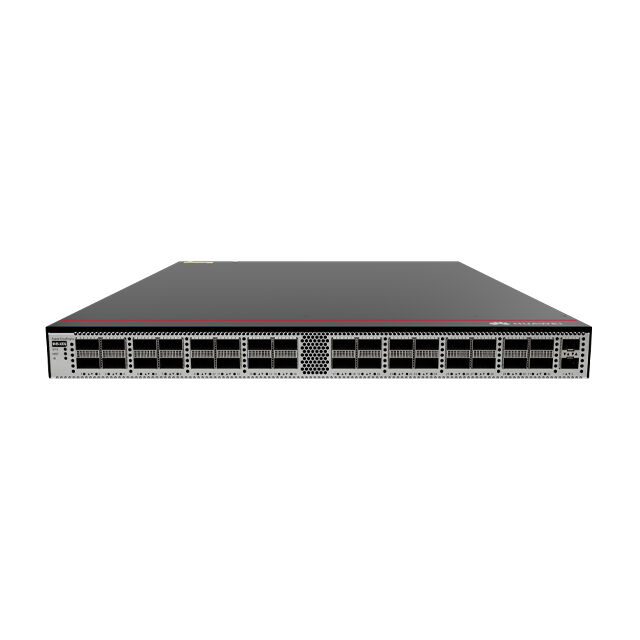

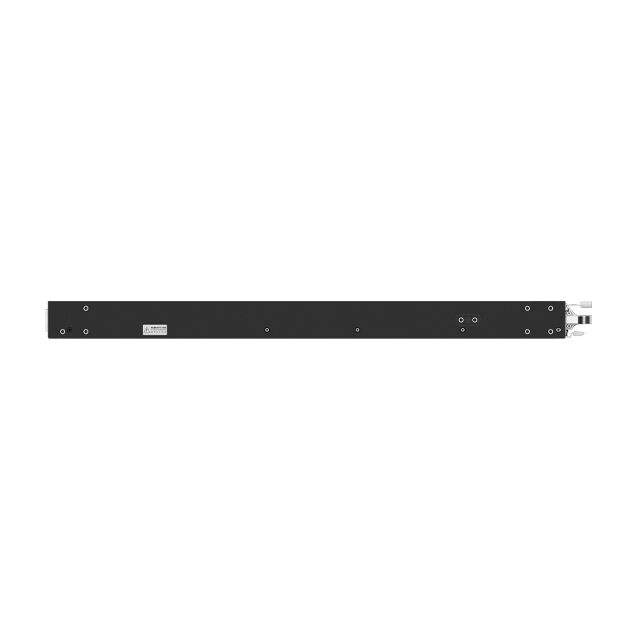

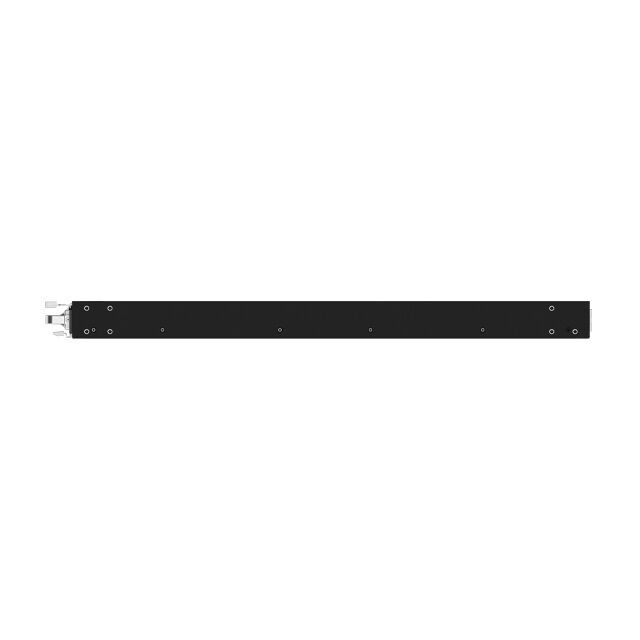

Product Appearance

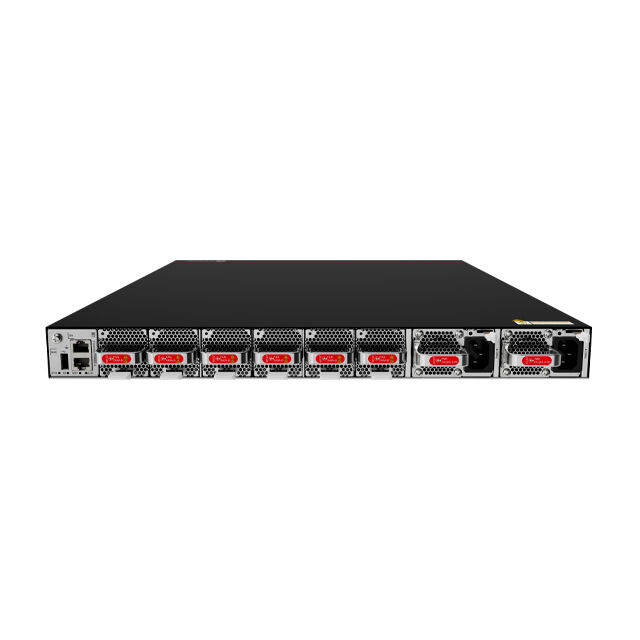

Physical Structure

Structure Components:
(1) Ground screw | (7) Two Power supply slots
(2) Equipment serial number (ESN) and MAC address | (8) Thirty-two 400GE QSFP-DD Ethernet optical ports
(3) Console port | (9) Two 10GE SFP+ Ethernet optical ports
(4) ETH management port (RJ45) | (10) Three port-side mounting holes for mounting brackets
(5) USB port | (11) Equipotential bonding
(6) Six Fan slots | (12) Four power-supply-side mounting holes for mounting brackets

Indicator Panel

Indicator Functions:
(1) System status indicator | (4) Service port indicator (400GE optical port)
(2) Stack master/slave indicator | (5) Service port indicator (10GE optical port)
(3) ID indicator | (6) ETH management port indicator

Technical Specifications

Dimensions with Packaging

260 mm x 590 mm x 790 mm (10.24 in. x 23.23 in. x 31.10 in.)

Dimensions without Packaging

Basic: 43.6 mm x 442 mm x 600 mm
Maximum: 43.6 mm x 442 mm x 633.4 mm

Weight

Without packaging: 9.94 kg
Full configuration: 12.78 kg
With packaging: 15.16 kg

Chassis Height

1 U

Switching Capacity

25.6 Tbps

Processor

16-core, 2 GHz

Port Configuration

32 x 400GE QSFP-DD + 2 x 10GE SFP+

Power Supply

Dual modules with 1+1 redundancy

Cooling System

6 fan modules with 5+1 redundancy

Operating Temperature

0°C to 40°C (32°F to 104°F)

MTBF

26.01 years

Availability

0.9999934176
