Brand Name:
Huawei
Model Number:

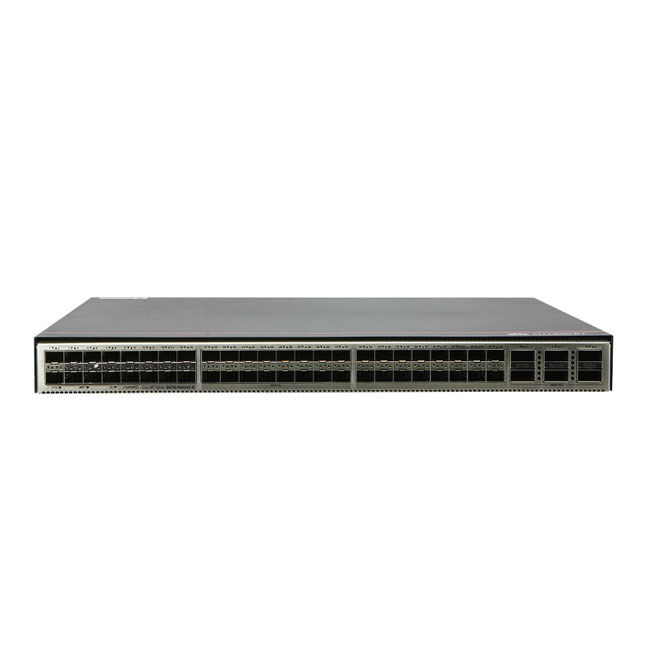

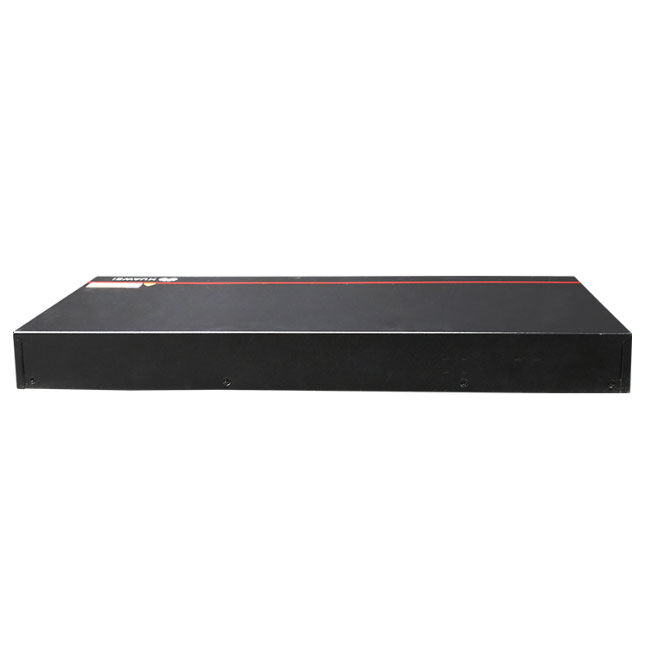

S6730-H48Y6C-V2
| Specification | Details |
|---|---|
| Description | 48-port 1GE/10GE/25GE SFP28, 6-port 40GE/100GE QSFP28, 2 power slots |
| Dimensions (H×W×D) | 43.6 mm × 442.0 mm × 420.0 mm (basic) 43.6 mm × 442.0 mm × 446.0 mm (maximum) |
| Packaged Dimensions | 175 mm × 650 mm × 550 mm |
| Chassis Height | 1U |
| Weight | 7.03 kg (without packaging) 10.01 kg (with packaging) |
| Power Consumption | Typical: 256W | Maximum: 384W | Static: 167W |
| Heat Dissipation | Typical: 873.50 BTU/hour | Maximum: 1310.25 BTU/hour |
| Reliability | MTBF: 47.81 years | MTTR: 2 hours | Availability: >0.99999 |
| Noise Level | 67 dB(A) acoustic power | 58 dB(A) acoustic pressure |
| Operating Temperature | -5°C to +45°C (23°F to 113°F) at 0-1800m altitude Temperature decreases 1°C per 220m above 1800m |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Power Supply | AC: 100-240V AC, 50/60Hz High-voltage DC: 240V DC DC: -48V to -60V DC |
| Memory | 4GB RAM | 4GB Flash |
| Ports | Console: RJ45 | Management: RJ45 | USB: Supported |
| Heat Dissipation | Air cooling with intelligent fan speed adjustment Front-to-rear airflow |
| Part Number | 02354NGU |
| Certifications | EMC, Safety, and Manufacturing certifications |
Send your inquiry directly to us
