Brand Name:
Huawei
Model Number:

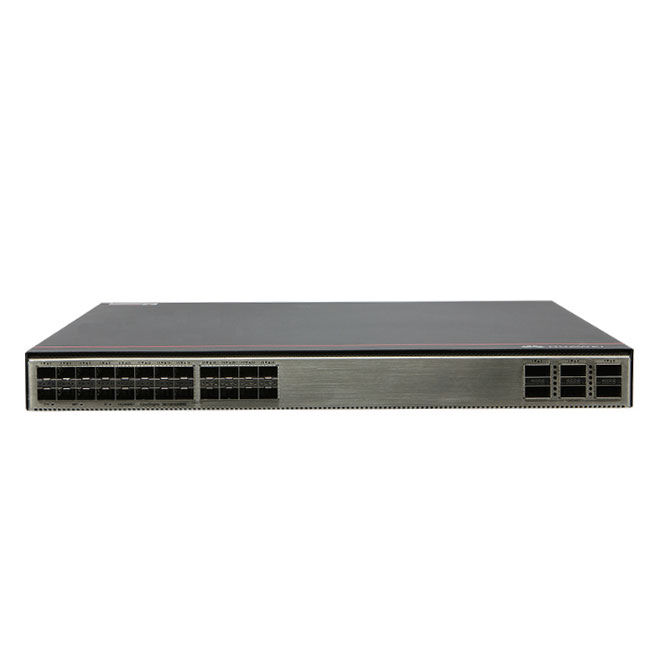

S6730-H24X6Y
| Model | S6730-H24X6Y |
| Part Number | Bundle version: 02353GFC/02353GFC-001/02353GFC-003/02353GFC-004 Without bundle: 02353FSG/02353FSG-001/02353FSG-005/02353FSG-007 |
| Memory | 4 GB |
| Flash Memory | 2 GB total (view available size via display version command) |
| PoE Support | Not supported |
| Weight with Packaging | 8.9 kg (19.62 lb) |
| Weight without Packaging | 5.62 kg (12.39 lb) |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| ① | Twenty-four 10GE SFP+ ports |
| ② | Six 40GE QSFP28 optical ports |
| ③ | Ground screw |
| ④ | SSD card slot |
| ⑤ | One console port |
| ⑥ | One ETH management port |
| ⑦ | One USB port |
| ⑧ | One PNP button |
| ⑨-⑫ | Four fan module slots |
| ⑬-⑭ | Two power module slots |
| Model | Description |
|---|---|
| eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| LE2MGSC40DE0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC) |
| LE2MGSC40ED0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC) |
| SFP-GE-ZBXD1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm(Tx)/1490nm(Rx), 80km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx), 80km, LC) |
| SFP-GE-BXU1-SC | 1000Base, BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC) |
| CWDM-SFPGE-1471 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1471nm, 80km, LC) |
| CWDM-SFPGE-1491 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC) |
| DWDM-SFPGE-1560-61 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1560.61nm, 120km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-10G-iLR | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 1.4km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| OSX040N01 | Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 40km, LC) |
| SFP-10G-ER-1310 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 40km, LC) |
| SFP-10G-ZR | 10GBase-ZR Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 80km, LC) |
| SFP-10G-BXU1 | 10GBase, BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1270nm/RX1330nm, 10km, LC) |
| Feature | S6730-H24X6Y | S6730-H48X6C |
|---|---|---|
| Fixed Ports | 24 x 10 Gig SFP+ 6 x 40G QSFP28 | 48 x 10 Gig SFP+ 6 x 40/100 Gig QSFP28 |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm | 442 mm x 420 mm x 43.6 mm |
| Chassis Height (U) | 1U | 1U |
| Input Voltage | AC: 100-240V AC, 50/60 Hz DC: -48V to -60V DC | AC: 100-240V AC, 50/60 Hz DC: -48V to -60V DC |
| Input Current | AC 600W: Max 8A DC 1000W: Max 30A | AC 600W: Max 8A DC 1000W: Max 30A |
| Maximum Power Consumption | 231W | 274W |
| Minimum Power Consumption | 97W | 97W |
