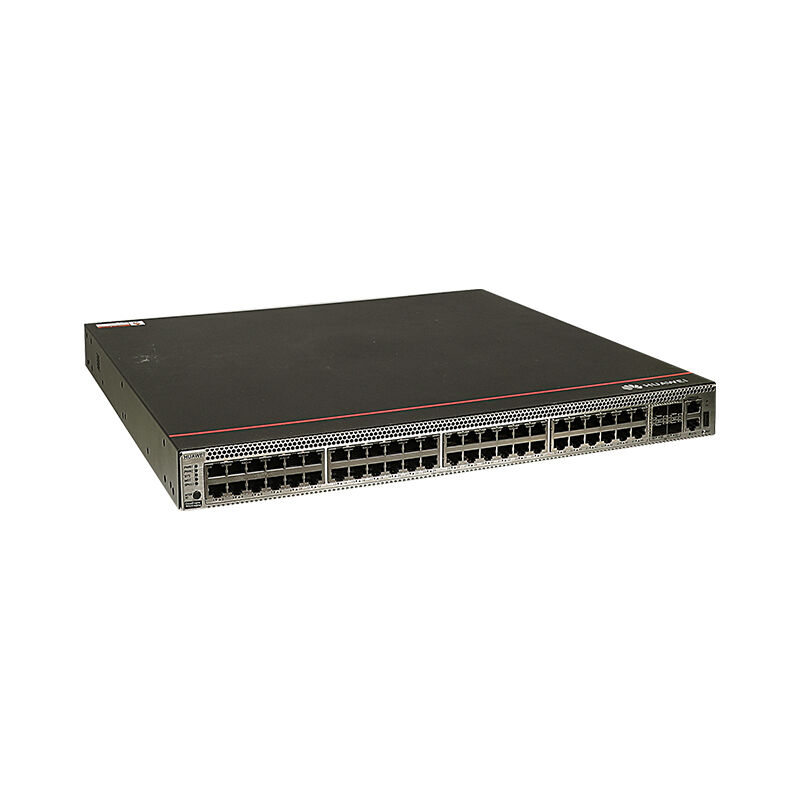

Brand Name:
Huawei
Model Number:
S5731S-S48P4X-A
Document:
| Model | S5731S-S48P4X-A |
| Part Number | 02353AJJ/02353AJJ-001/02353AJJ-003 |
| Memory (RAM) | 2 GB |
| Flash Memory | 1 GB total (view available size using display version command) |
| PoE Support | Supported |
| Dimensions (H x W x D) | Basic: 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum: 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Weight (with packaging) | 9.9 kg (21.83 lb) |
| ① | Forty-eight PoE+ 10/100/1000BASE-T ports |
| ② | Four 10GE SFP+ ports |
| ③ | One console port |
| ④ | One ETH management port |
| ⑤ | One USB port |
| ⑥ | One PNP button |

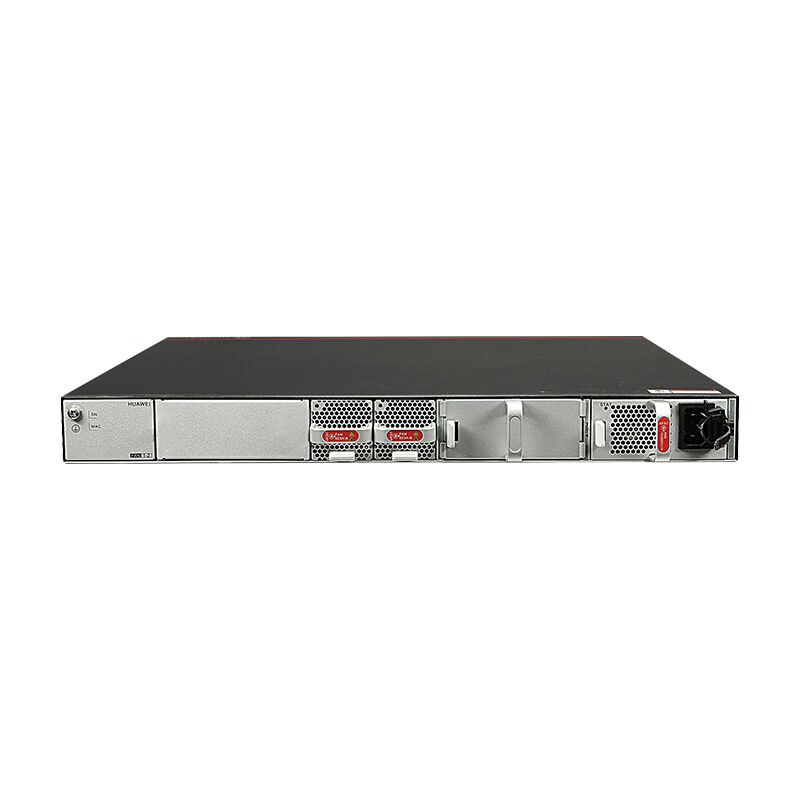

| ⑦ | Ground screw |
| ⑧ | Fan module slot 1 |
| ⑨ | Fan module slot 2 |
| ⑩ | Power module slot 1 |
| ⑪ | Power module slot 2 |
| Model | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx), 80km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| SFP-GE-ZBXD1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm(Tx)/1490nm(Rx), 80km, LC) |
| LE2MGSC40DE0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| LE2MGSC40ED0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC) |
| SFP-GE-BXU1-SC | 1000Base BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC) |
| SFP-10G-iLR | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 1.4km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-10G-BXU1 | 10GBase BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1270nm/RX1330nm, 10km, LC) |
| SFP-10G-ER-1310 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 40km, LC) |
| SFP-10G-ER-SM1330-BIDI | Optical Transceiver, SFP+, 10G, BIDI Single-mode Module (TX 1330nm/RX 1270nm, 40km, LC) |
| SFP-10G-BXD1 | 10GBase BIDI Optical Transceiver, SFP+, 10G, Single-mode Module (TX1330nm/RX1270nm, 10km, LC) |
| SFP-10G-ZR | 10GBase-ZR Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 80km, LC) |
| OSX040N01 | Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 40km, LC) |
| Product Code | S5731S-S24P4X-A | S5731S-S24T4X-A | S5731S-S48P4X-A | S5731S-S48T4X-A |
|---|---|---|---|---|
| Memory (RAM) | 4 GB | 4 GB | 4 GB | 4 GB |
| Flash Memory | 1 GB total | 1 GB total | 1 GB total | 1 GB total |
| MTBF | 57.21 years | 57.73 years | 54.96 years | 55.31 years |
| Stack Ports | 10GE SFP+ ports | 10GE SFP+ ports | 10GE SFP+ ports | 10GE SFP+ ports |
| RTC | Supported | Supported | Supported | Supported |
| RPS | Not supported | Not supported | Not supported | Not supported |
| PoE | Supported | Not supported | Supported | Not supported |
| Max Power Consumption | • No PoE: 121 W • 100% PoE: 977 W |
114 W | • No PoE: 132 W • 100% PoE: 1750 W |
124 W |
| Typical Power Consumption | 95 W | 88 W | 108 W | 101 W |
| Part Number | 02353AJJ/02353AJJ-001/02353AJJ-003 |
| Model | S5731S-S48P4X-A |
| Memory (RAM) | 2 GB |
| Flash Memory | 1 GB total (view available size using display version command) |
| MTBF | 54.96 years |
| MTTR | 2 hours |
| Availability | > 0.99999 |
| Service Port Surge Protection | Common mode: ±6 kV |
| Power Supply Surge Protection | AC: ±6 kV differential, ±6 kV common mode DC: ±2 kV differential, ±4 kV common mode |
| Stack Ports | 10GE SFP+ ports on front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated Voltage Range | AC: 100-240 V AC, 50/60 Hz HVDC: 240 V DC DC: -48 V to -60 V DC |
| Maximum Voltage Range | AC: 90-290 V AC, 45-65 Hz HVDC: 190-290 V DC DC: -38.4 V to -72 V DC |
| Operating Temperature | -5°C to +45°C (23°F to 113°F) at 0-1800 m altitude |
| Storage Temperature | -40°C to +70°C (-40°F to 158°F) |
| Noise Level | < 62.3 dB(A) at 27°C |
| Relative Humidity | 5% to 95%, noncondensing |
| Operating Altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC, Safety, and Manufacturing certifications |
