Brand Name:
Huawei
Model Number:
S5731-S24P4X
Document:
| Specification | Details |
|---|---|
| Model | S5731-S24P4X |
| Part Number | 02353AHX/02353AHX-001/02353AHX-003/02353AHX-004 |
| Memory (RAM) | 2 GB |
| Flash Memory | 1 GB total (view available size using display version command) |
| PoE Support | Supported |
| Dimensions (H x W x D) | Basic: 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum: 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Weight (with packaging) | 8.6 kg (18.96 lb) |
| Component | Description |
|---|---|

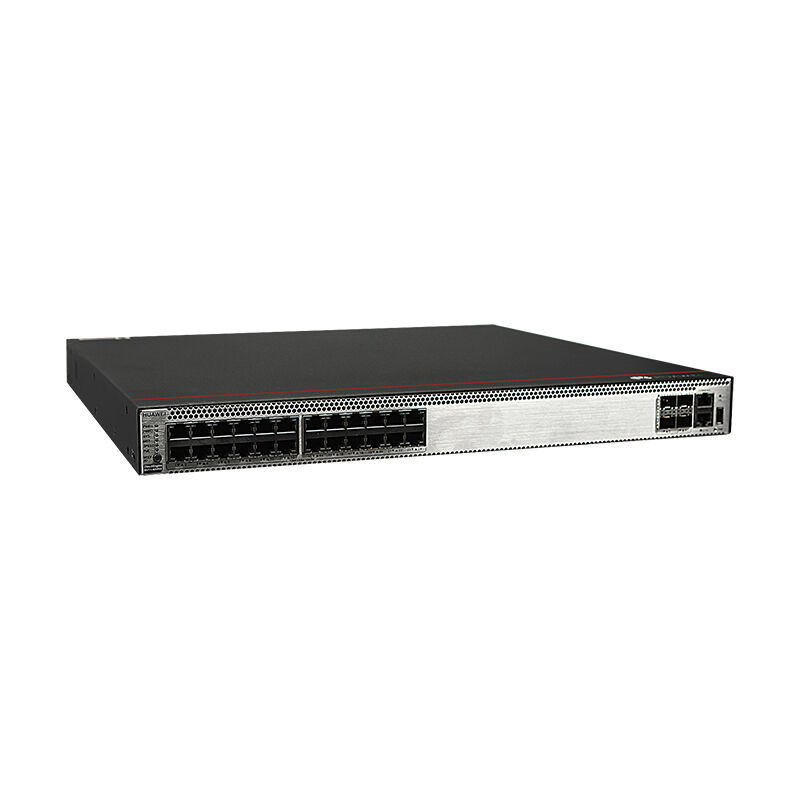

| ① | Twenty-four PoE+ 10/100/1000BASE-T ports |
| ② | Four 10GE SFP+ ports |
| ③ | One console port |
| ④ | One ETH management port |
| ⑤ | One USB port |
| ⑥ | One PNP button |

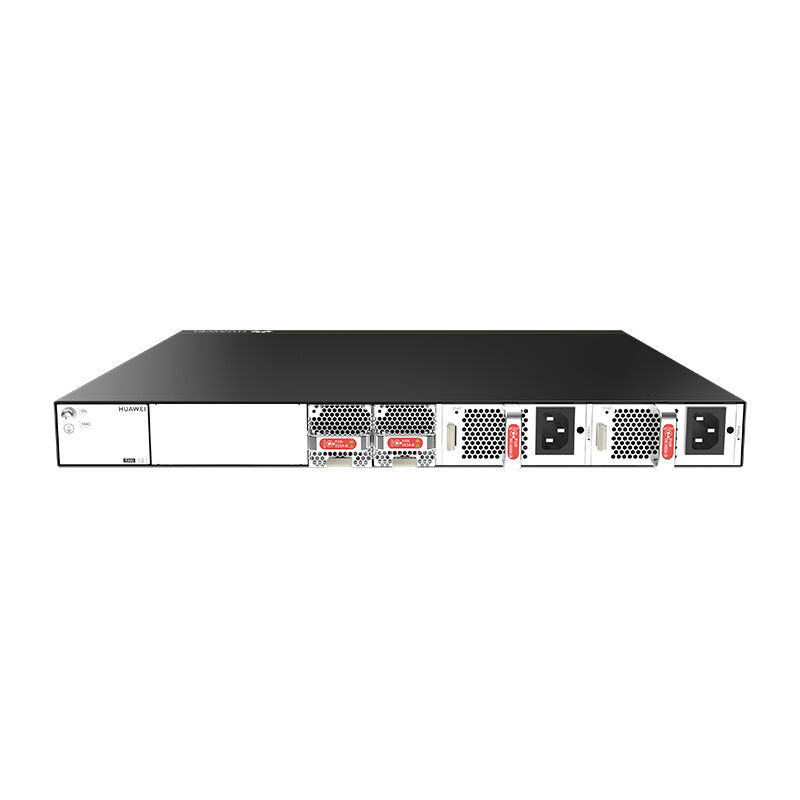

| ⑦ | Ground screw |
| ⑧ | Fan module slot 1 |
| ⑨ | Fan module slot 2 |
| ⑩ | Power module slot 1 |
| ⑪ | Power module slot 2 |
| Product | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx), 80km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| SFP-10G-iLR | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 1.4km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| DWDM-SFPGE-1560-61 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1560.61nm, 120km, LC) |
| SFP-10G-ER-SM1270-BIDI | Optical Transceiver, SFP+, 10G, BIDI Single-mode Module (TX 1270nm/RX 1330nm, 40km, LC) |
| Feature | S5731-S24P4X | S5731-S24T4X | S5731-S48P4X | S5731-S48T4X |
|---|---|---|---|---|
| Fixed Ports | 24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports | 442 mm x 420 mm x 43.6 mm | 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports | 48 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm | 1 U | 442 mm x 420 mm x 43.6 mm | 442 mm x 420 mm x 43.6 mm |
| Chassis Height | 1 U | 8.4 kg | 1 U | 1 U |
| Chassis Weight (with packaging) | 8.6 kg | • 150 W AC (pluggable) • 600 W AC (pluggable) • 1000 W DC (pluggable) | 8.8 kg | 8.55 kg |
| Power Supply Type | 1000 W PoE AC (pluggable) | • AC input (150 W AC): 100 V AC to 240 V AC, 50/60 Hz • AC input (600 W AC): 100 V AC to 240 V AC, 50/60 Hz • DC input (1000 W DC): -48 VDC to -60 V DC | 1000 W PoE AC (pluggable) | • 150 W AC (pluggable) • 600 W AC (pluggable) • 1000 W DC (pluggable) |
| Rated Voltage Range | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz | • AC input (150 W AC): 100 V AC to 240 V AC, 50/60 Hz • AC input (600 W AC): 100 V AC to 240 V AC, 50/60 Hz • DC input (1000 W DC): -48 VDC to -60 V DC | |
| Maximum Power Consumption | • 121 W (without PD) • 977 W (with PD, PD power consumption of 720 W) | 114 W | • 132 W (without PD) • 1750 W (with PD, PD power consumption of 1440 W) | 124 W |
