Brand Name:
Huawei
Model Number:
CE6865E-48S8CQ-B
Document:
| Model | CE6865E-48S8CQ-B |
|---|---|
| Part Number | 02354CPN, 02354CPN-001, 02354CPN-003 |

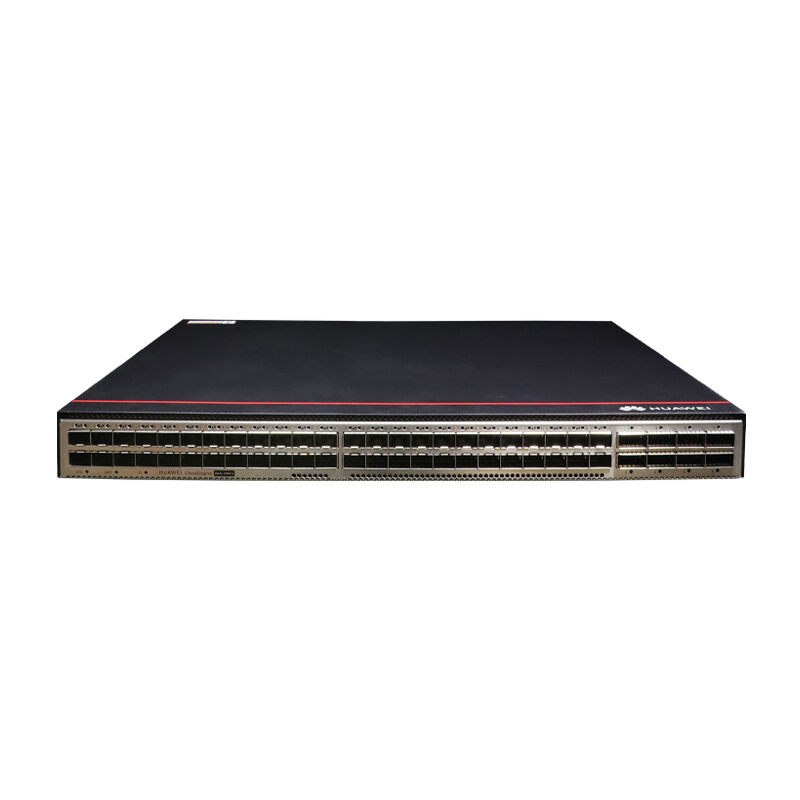

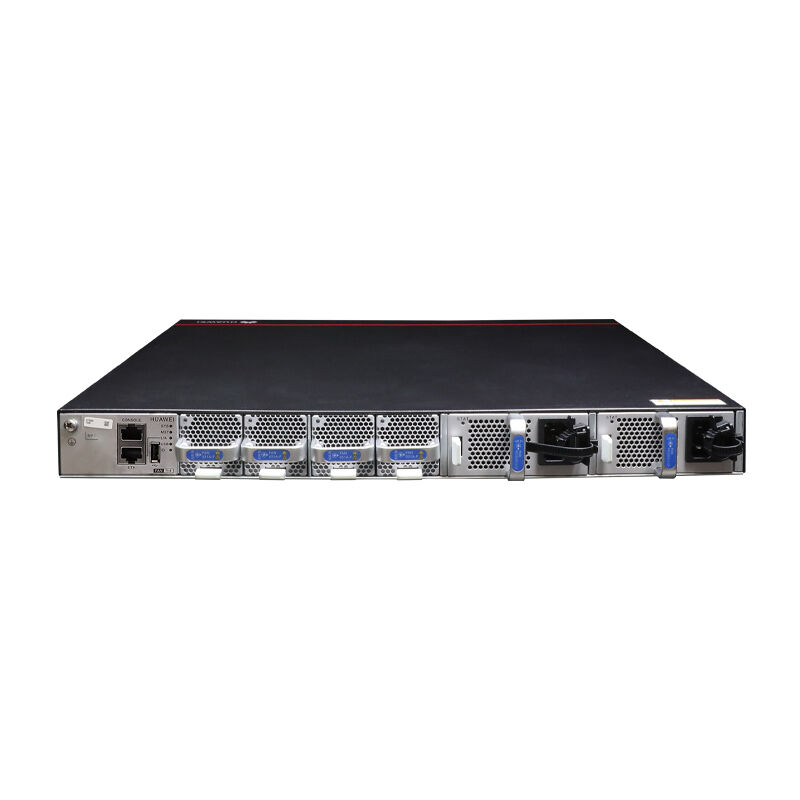

| Description | CE6865E-48S8CQ switch (48*25G SFP28, 8*100G QSFP28, 2*AC power modules, 4*fan modules, port-side intake) |
| Memory | 4 GB |
| Flash Memory | 4 GB |
| Static Power Consumption | 133 W |
| Static Heat Dissipation | 453 BTU/hour |
| Specification | Details |
|---|---|
| Dimensions with Packaging | 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.) |
| Dimensions without Packaging | Basic: 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum: 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.) |
| Weight without Packaging | 6.2 kg (13.67 lb) |
| Weight without Packaging (Full Configuration) | 8.8 kg (19.40 lb) |
| Weight with Packaging | 9.45 kg (20.83 lb) |
| Weight with Packaging (Full Configuration) | 11.75 kg (25.9 lb) |
| Chassis Height | 1U |
| Installation Type | Cabinet Installation |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 64 MB |
| NAND Flash | 4 GB |
| USB | Supported |
| Power Supply Mode | DC pluggable, AC pluggable, HVDC pluggable |
| Console Port | RJ45 |
| Downlink Service Interface | 48x 25GE SFP28 ports |
| Uplink Service Interface | 8x 100GE QSFP28 ports |
| Service Port Stack Function | 25GE optical ports, and 100GE optical ports |
| RTC | Supported |
| Typical Power Consumption | 179 W (50% throughput, dual power modules) 232 W (50% throughput, short-distance optical modules) |
| Typical Heat Dissipation | 610 BTU/hour (100% traffic load) 791 BTU/hour (100% traffic load, short-distance optical modules) |
| Static Power Consumption | 133 W |
| Static Heat Dissipation | 453 BTU/hour |
| Maximum Power Consumption | 378 W |
| Maximum Heat Dissipation | 1290 BTU/hour |
| Number of Power Modules | 2 |
| Redundant Power Supply | 1+1 backup |
| Rated Input Voltage | 600 W AC&240 V DC: AC: 100-240 V AC, 50/60 Hz; DC: 240 V DC 1000 W DC: -48 V DC to -60 V DC 1200 W HVDC: 240 V DC to 380 V DC |
| Input Voltage Range | 600 W AC&240 V DC: AC: 90-290 V AC, 45-65 Hz; DC: 190-290 V DC 1000 W DC: -38.4 V DC to -72 V DC 1200 W HVDC: 190 V DC to 400 V DC |
| Maximum Input Current | 600 W AC&240 V DC: 8 A (100-240 V AC); 4 A (240 V DC) 1000 W DC: 30 A (-48 V DC to -60 V DC) 1200 W HVDC: 8 A |
| Rated Output Power | 600 W AC&240 V DC: 600 W 1000 W DC: 1000 W 1200 W HVDC: 1200 W |
| Certification | Compliance with safety, EMC, environment and environmental protection standards |
| Power Supply Surge Protection | AC: 6 kV common mode, 6 kV differential mode DC: 4 kV common mode, 2 kV differential mode HVDC: 4 kV common mode, 2 kV differential mode |
| Types of Fans | Pluggable |
| Number of Fans | 4 |
| Redundant Fans | 3+1 backup with hot standby mode |
| Heat Dissipation Mode | Air cooling |
| Airflow Direction | Front-to-back or back-to-front airflow |
| Availability | 0.9999966836 |
| MTBF | 36.9 years |
| MTTR | 1.85 hours |
| Noise at Normal Temperature (27°C) | Front-to-back: 49.8 dB(A) avg (53.6 dB(A) max) Back-to-front: 47.8 dB(A) avg (51.2 dB(A) max) |
| Noise at High Temperature (40°C) | Front-to-back: 67.6 dB(A) avg (73.4 dB(A) max) Back-to-front: 68 dB(A) avg (75.4 dB(A) max) |
| Long-term Operating Altitude | ≤ 5000 m (16404 ft.) |
| Long-term Operating Relative Humidity | 5% RH to 95% RH, noncondensing |
| Long-term Operating Temperature | 0°C to 40°C (32°F to 104°F) at 0-1800 m altitude |
| Storage Altitude | ≤ 5000 m (16404 ft.) |
| Storage Relative Humidity | 5% to 95% RH, non-condensing |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
