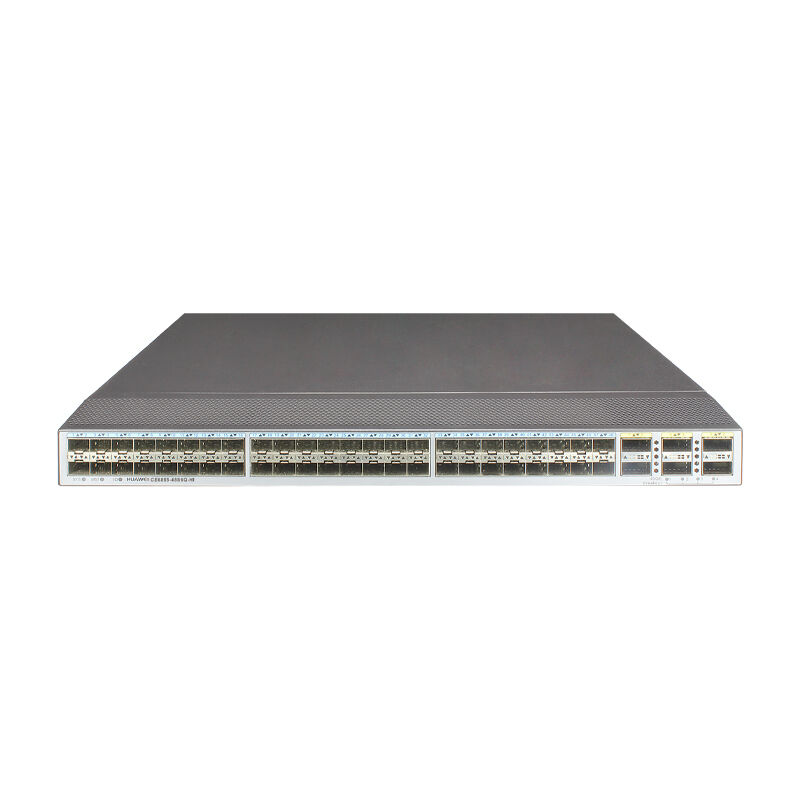

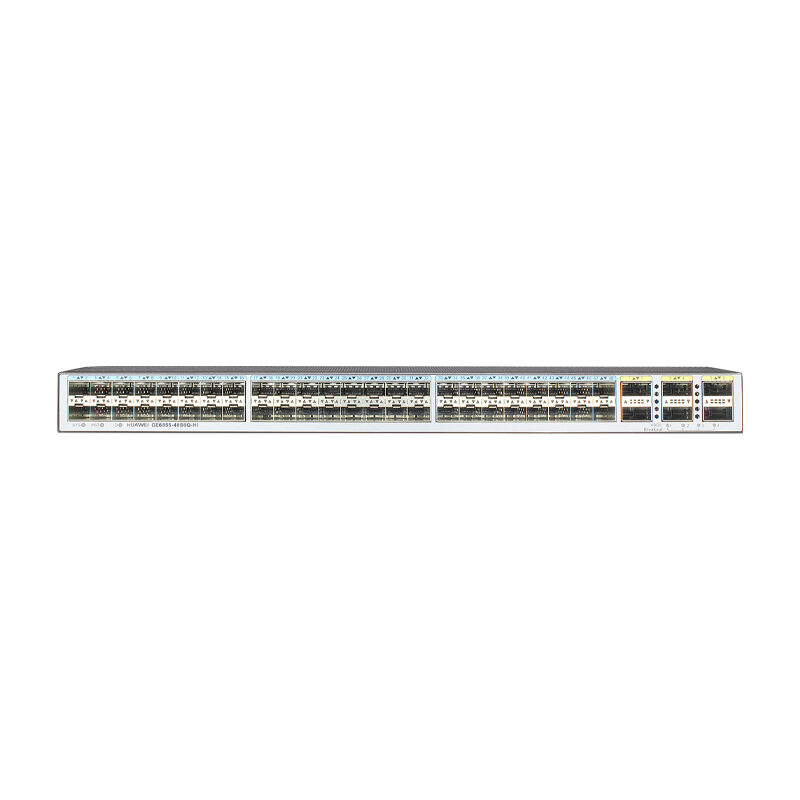

Brand Name:
Huawei
Model Number:
CE6855-48S6Q-HI
Document:
| Model | CE6855-48S6Q-HI |
|---|---|
| Part Number | 02350SRQ |
| Processor | 1.2 GHz, quad-core |
| DRAM Memory | 2 GB |
| NOR Flash | 16 MB |
| NAND Flash | 1 GB |
| Mean time between failures (MTBF) | 48.83 years |
| Mean time to repair (MTTR) | 1.73 hours |
| Availability | 0.99999595166 |
| Hot swap | Supported by all power modules and fan modules |

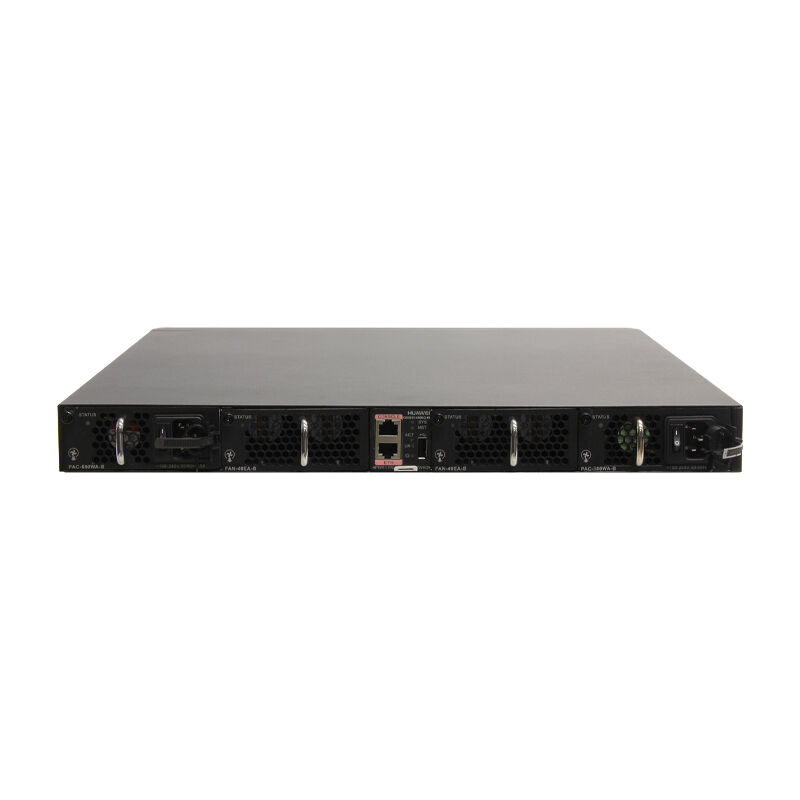

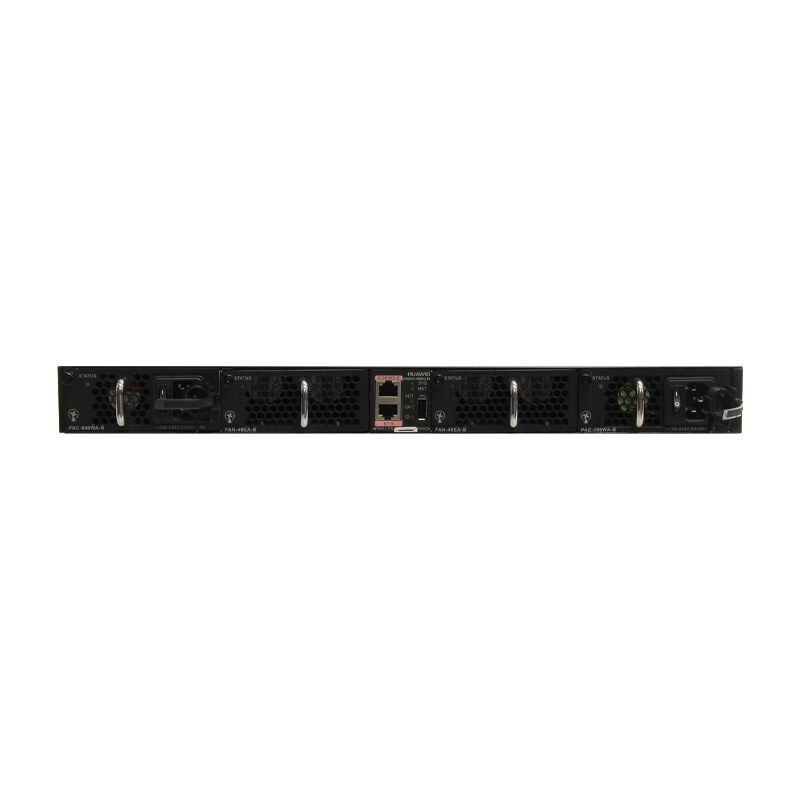

| (1) | Power supply slot 1 | (5) | Console port |
|---|---|---|---|
| (2) | Power supply slot 2 | (6) | ETH management port (RJ45) |
| (3) | Fan slot 1 | (7) | Barcode label |
| (4) | Fan slot 2 | (8) | USB port |
| Model | Description |
|---|---|
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
| Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.) |
|---|---|
| Weight | 8.7 kg (19.18 lb) with two power modules and two fan modules |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) |
|---|---|
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Relative Humidity | 5% RH to 95% RH, noncondensing |
| Altitude | < 5000 m (16404 ft.) |
| Noise (sound pressure, 27°C) | Back-to-front airflow: < 56 dBA Front-to-back airflow: < 58 dBA |
| Power Source Type | AC/DC |
|---|---|
| AC Power Input | Rated: 100 V AC to 240 V AC, 50/60 Hz Maximum: 90 V AC to 290 V AC, 47 Hz to 63 Hz |
| DC Power Input | Rated: -48 V DC to -60 V DC Maximum: -38.4 V DC to -72 V DC |
| High-voltage DC Power Input | Not supported |
| Chassis Power Consumption | Maximum: 216 W Typical: 116 W (100% throughput) |
| Chassis Heat Dissipation | Maximum: 737 BTU/hr Typical: 396 BTU/hr (100% throughput) |
| Power Module Backup | 1+1 backup |
|---|---|
| Fan Module Backup | 3+1 backup (four fans in chassis) |
| Hot Swap | Supported by all power modules and fan modules |
| Mean Time Between Failures (MTBF) | 48.83 years |
| Mean Time To Repair (MTTR) | 1.73 hours |
| Availability | 0.99999595166 |
| Processor | 1.2 GHz, quad-core |
|---|---|
| DRAM Memory | 2 GB |
| NOR Flash | 16 MB |
| NAND Flash | 1 GB |
| Stack | Service port supporting the stack function: 10GE optical ports and 40GE optical ports |
| Certification | Safety standards compliance, EMC standards compliance, Environmental standards compliance |
