Brand Name:
Huawei
Model Number:
S5731-H24P4XC
| Model | S5731-H24P4XC |
| Part Number | 02352QPV/02352QPV-001/02352QPV-003 |
| Memory (RAM) | 4 GB |
| Flash Memory | 1 GB total (run "display version" command to view available size) |
| PoE Support | Yes |
| Dimensions (H x W x D) | Basic: 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum: 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| Weight (with packaging) | 8.6 kg (18.96 lb) |
| Part Number | Heat Dissipation | Operating Temperature | Operating Humidity |
|---|---|---|---|
| 02352QPV | Heat dissipation with fan, intelligent fan speed adjustment | -5°C to +45°C (23°F to 113°F) at 0-1800 m altitude | 5% to 95%, noncondensing |
| 02352QPV-001 | Heat dissipation with fan, intelligent fan speed adjustment | -5°C to +45°C (23°F to 113°F) at 0-1800 m altitude | 5% to 95%, noncondensing |
| 02352QPV-003 | Air cooling for heat dissipation, intelligent fan speed adjustment | -5°C to +45°C (23°F to 113°F) at 0-1800 m altitude | 5% RH to 95% RH (non-condensing) |

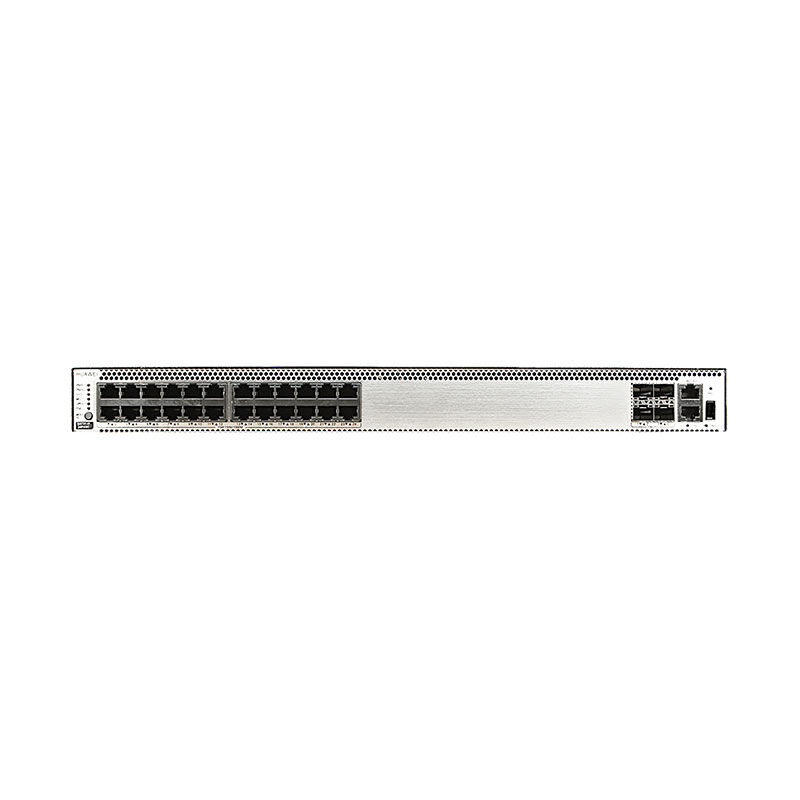

| ① | Twenty-four PoE+ 10/100/1000BASE-T ports |
| ② | Four 10GE SFP+ ports |
| ③ | One console port |
| ④ | One ETH management port |
| ⑤ | One USB port |
| ⑥ | One PNP button |

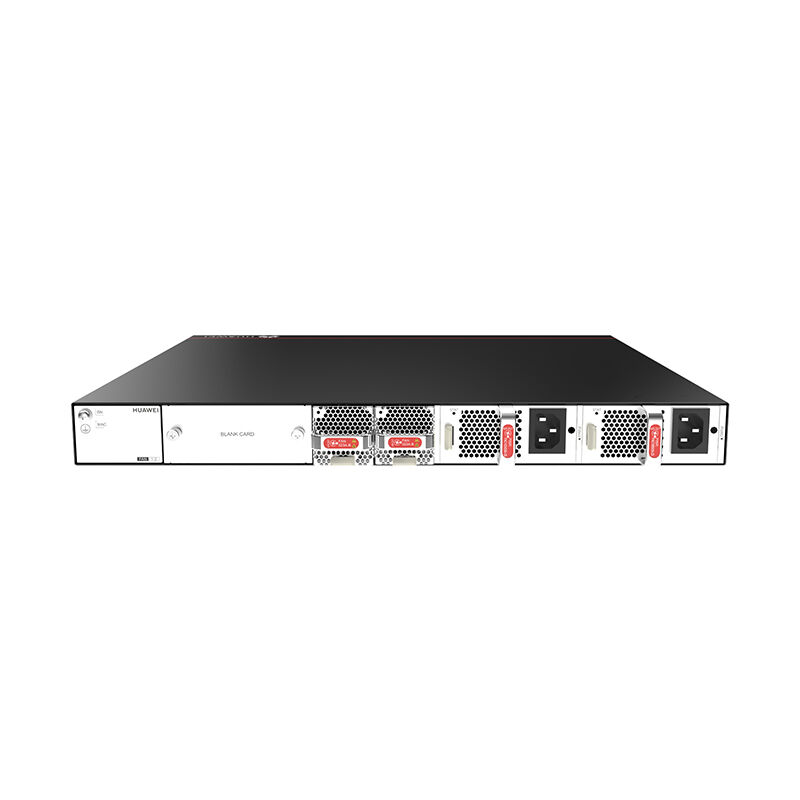

| ⑦ | Ground screw |
| ⑧ | Rear card slot |
| ⑨ | Fan module slot 1 |
| ⑩ | Fan module slot 2 |
| 11 | Power module slot 1 |
| 12 | Power module slot 2 |
| Model | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm(Tx)/1570nm(Rx), 80km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| SFP-GE-ZBXD1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm(Tx)/1490nm(Rx), 80km, LC) |
| eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| LE2MGSC40DE0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| LE2MGSC40ED0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC) |
| SFP-GE-BXU1-SC | 1000Base, BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC) |
| Feature | S5731-H24P4XC | S5731-H24T4XC | S5731-H48P4XC | S5731-H48T4XC |
|---|---|---|---|---|
| Fixed Ports | 24 x PoE+ 10/100/1000Base-T, 4 x 10GE SFP+ | 24 x 10/100/1000Base-T, 4 x 10GE SFP+ | 48 x PoE+ 10/100/1000Base-T, 4 x 10GE SFP+ | 48 x 10/100/1000Base-T, 4 x 10GE SFP+ |
| Dimensions | 43.6 x 442 x 420 mm | 43.6 x 442 x 420 mm | 43.6 x 442 x 420 mm | 43.6 x 442 x 420 mm |
| Chassis Height | 1 U | 1 U | 1 U | 1 U |
| Weight | 8.6 kg | 8.4 kg | 8.8 kg | 8.55 kg |
| Extended Slot | One slot supporting 2x40GE, 8x10GE Base-T, 2x25GE SFP28 or 8x10GE SFP+ cards | One slot supporting 2x40GE, 8x10GE Base-T, 2x25GE SFP28 or 8x10GE SFP+ cards | One slot supporting 2x40GE, 8x10GE Base-T, 2x25GE SFP28 or 8x10GE SFP+ cards | One slot supporting 2x40GE, 8x10GE Base-T, 2x25GE SFP28 or 8x10GE SFP+ cards |
| Power Supply | 1000 W PoE AC (pluggable) | 600 W AC, 150 W AC, or 1000 W DC (pluggable) | 1000 W PoE AC (pluggable) | 600 W AC, 150 W AC, or 1000 W DC (pluggable) |
| Max Power Consumption | 121 W (without PD) 977 W (with PD) |
114 W | 132 W (without PD) 1750 W (with PD) |
124 W |
| MTBF | 57.21 years |
| MTTR | 2 hours |
| Availability | > 0.99999 |
| Service Port Surge Protection | Common mode: ±6 kV |
| Power Supply Surge Protection | AC modules: ±6 kV differential, ±6 kV common mode DC modules: ±2 kV differential, ±4 kV common mode |
| Stack Ports | 10GE SFP+ ports on front panel, or ports on rear card |
| RTC | Supported |
| RPS | Not supported |
| Voltage Range | AC: 100-130V/200-240V, 50/60Hz High-Voltage DC: 240V DC DC: -48V to -60V DC |
| Max Voltage Range | AC: 90-290V, 45-65Hz High-Voltage DC: 190-290V DC DC: -38.4V to -72V DC |
| Typical Power Consumption | 95 W (30% traffic load, without card) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise Level | < 62.3 dB(A) at 27°C |
| Operating Altitude | 0-5000 m (0-16404 ft.) |
| Certifications | EMC, Safety, Manufacturing |
