Place of Origin:
China
Brand Name:
Huawei
Certification:
CE
Model Number:
S6750-H36C

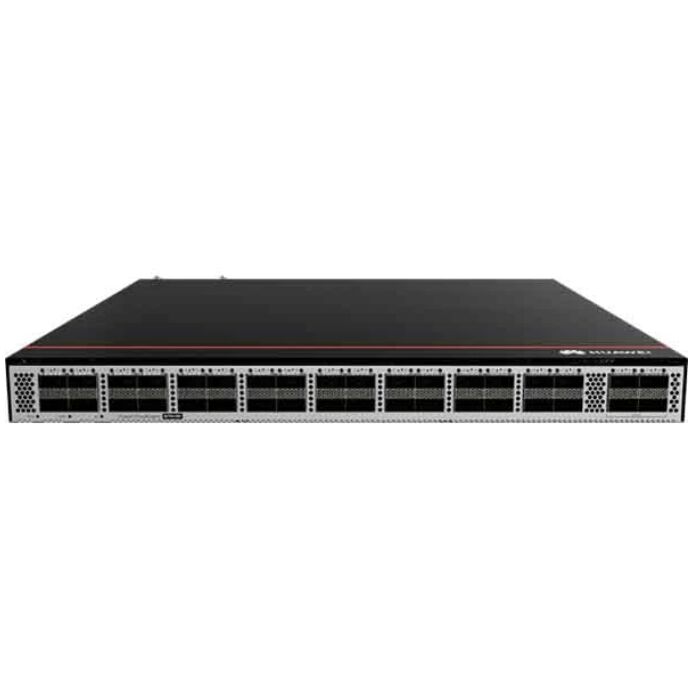

CloudEngine S6750-S Series Switches
CloudEngine S6750-S series switches are Huawei's next-generation enterprise-class core and aggregation switches that provide downlink GE electrical ports, downlink 10GE/25GE optical ports, and uplink 25GE/100GE optical ports.
Huawei CloudEngine S6750-S series Ethernet switches are ideal for campus networks. They provide GE, 10GE, 25GE, and 100GE ports, and feature high performance, high reliability, cloud-based management, and intelligent O&M. Based on Huawei's industry-leading software and hardware platform, the switches are launched for security, Internet of Things (IoT), and cloud-network. Moreover, the switches adopt technologies, such as free mobility, VXLAN, SRv6, and slicing. They also provide many types of ports to meet diversified network bandwidth requirements. With these, the switches can deliver ultimate user experience and carrier-class reliability. These make CloudEngine S6750-S series switches the ideal core or aggregation switches on a cloud campus network to facilitate digital transformation of global customers. Therefore, they can be widely used at the aggregation layer of large campus networks or at the core layer of small and medium-sized campus networks in various industries, such as transportation, manufacturing, and education.
Specifications
| Product Model | CloudEngine S6750-H36C |
| Forwarding Performance | 1200 Mpps |
| Switching Capacity2 | 7.2Tbps/ 8Tbps |
| Fixed Ports | 32 × 40/100 Gig QSFP+, 4 x 40/100 Gig QSFP ports* *Note:In the future, 4 x 200G optical ports will be supported for uplink ports. |
| Power Supply Type | 1+1 power backup |
| MAC Features | MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses MAC address learning limiting based on ports and VLANs |
| VXLAN Features | Distributed and centralized VXLAN gateways BGP EVPN VXLAN configuration through NETCONF VXLAN to the access and aggregation layers |
| iPCA quality awareness | Direct marking of service packets to obtain real-time statistics about dropped packets and packet loss rate Statistics about dropped packets and packet loss rate on Layer 2/Layer 3 networks and devices |
| QoS | Traffic classification based on information from the link layer to the application layer Complete queue scheduling and congestion control algorithms Accurate multi-level scheduling for data flows Hardware-based low-latency QoS queues for multicast packets |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports, click HERE. |
