Place of Origin:
China
Brand Name:
Huawei
Certification:
CE
Model Number:
S16700-4/S16700-8

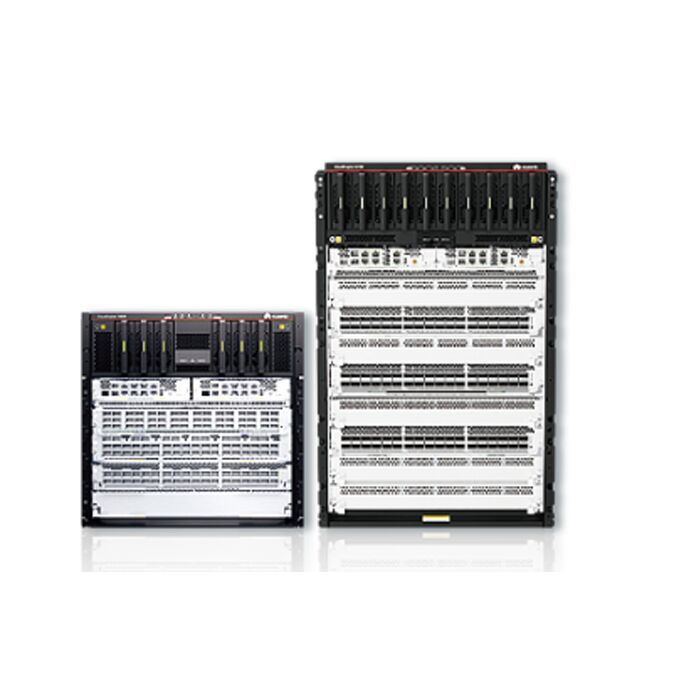

CloudEngine S16700 Series Campus Switches
Specifications
| Parameters | CloudEngine S16700-4 | CloudEngine S16700-8 |
| Forwarding Performance | 14400 Mpps | 28800 Mpps |
| Switching Capacity | 38.4 Tbps | 76.8 Tbps |
| MPU Slots | 2 | 2 |
| Service Card Slots | 4 | 8 |
| SFU Slots | 9 * | 9 * |
| Fan Slots | 3 | 3 |
| iPCA | Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels | |
| VXLAN | VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol |
|
| Reliability | Link Aggregation Control Protocol (LACP) VRRP and BFD for VRRP BFD for BGP/IS-IS/OSPF/static routes Eth-OAM 802.3ah and 802.1ag Smart Link |
|
| Interoperability | VBST (compatible with PVST, PVST+, and RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
|
*Note:The maximum number of SFUs varies with SFU type.
