Brand Name:
Huawei
Model Number:
S5735S-L24P4X-A1
Document:
| Model | S5735S-L24P4X-A1 |
|---|---|
| Part Number | 98011328 |
| Description | S5735S-L24P4X-A1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power) |
| First supported version | V200R020C10 |
| Memory | 512 MB |
| Flash memory | 512 MB |
| PoE | Supported |
| Weight with packaging [kg(lb)] | 3.91 kg (8.62 lb) |
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |

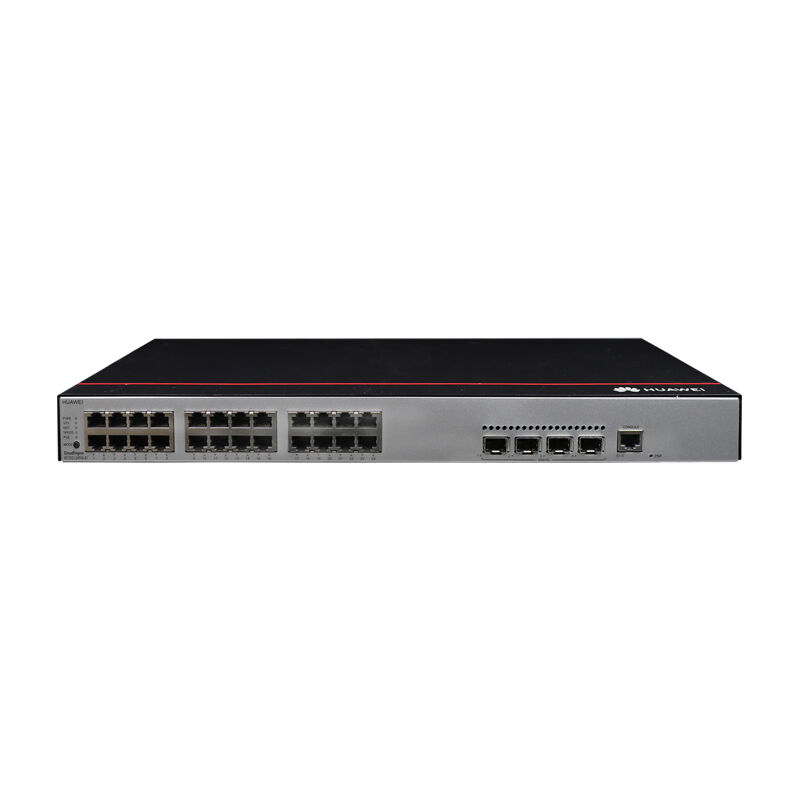

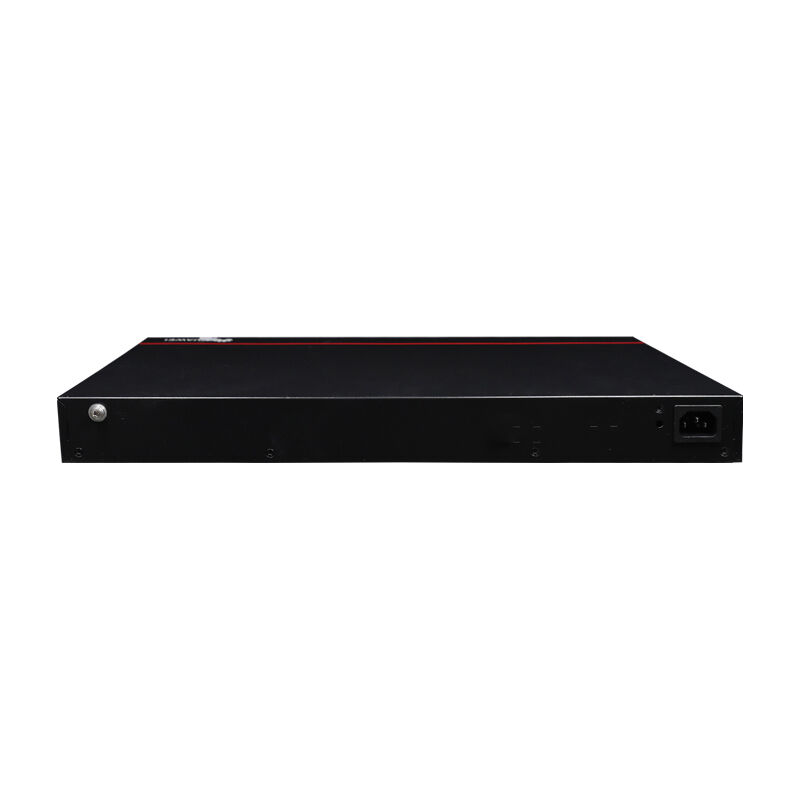

| (1) | Twenty-four 10/100/1000BASE-T PoE+ ports | (5) | Ground screw |
| (2) | Four 10GE SFP+ ports | (6) | Jack for AC power cable locking strap |
| (3) | One console port | (7) | AC socket |
| (4) | One PNP button |
