Brand Name:
Huawei
Model Number:
S5735S-L48P4S-A
Document:
| Model | S5735S-L48P4S-A |
| Part Number | 98010946 |
| Description | S5735S-L48P4S-A bundle (48*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, 1*1000W PoE AC power module) |
| First Supported Version | V200R019C00 |
| Memory | 1 GB |
| Flash Memory | 512 MB in total. To view the available flash memory size, run the display version command. |
| PoE | Supported |
| Weight with Packaging | 8.7 kg (19.18 lb) |
| Dimensions without Packaging |
Basic dimensions: 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions: 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.40 in. x 17.49 in.) |

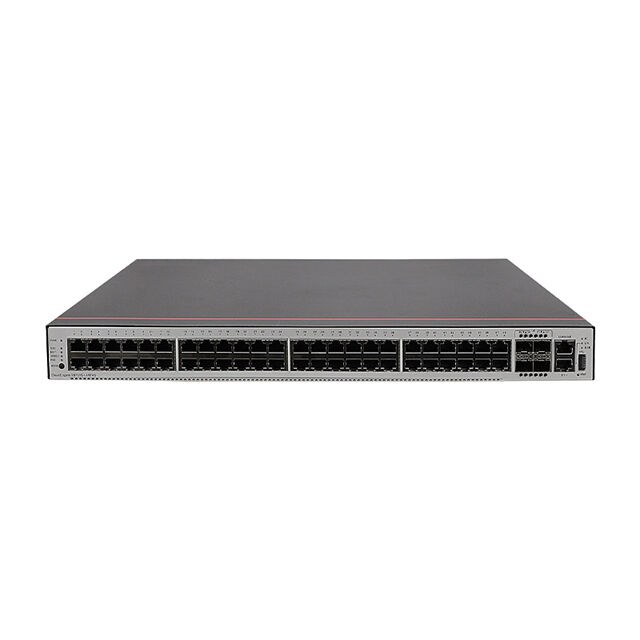

| (1) | Forty-eight PoE+ 10/100/1000BASE-T ports | (5) | One USB port |
| (2) | Four 1000BASE-X ports | (6) | One PNP button |

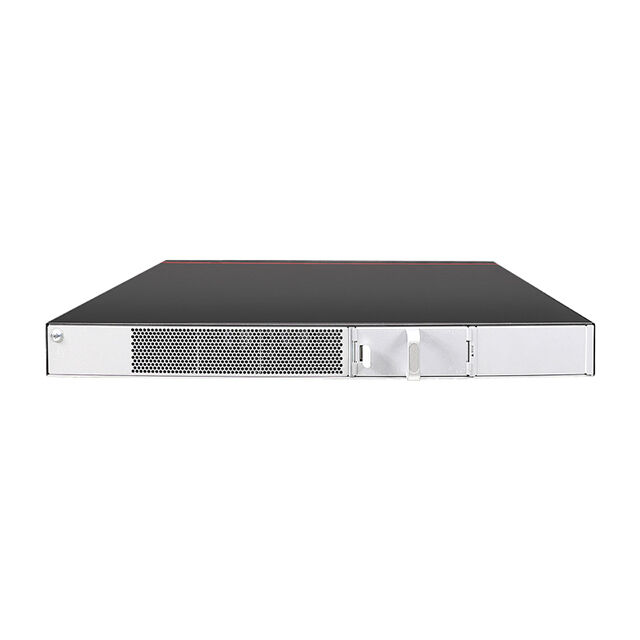

| (3) | One console port | (7) | Ground screw |
| (4) | One ETH management port | (8) | Power module slot |
