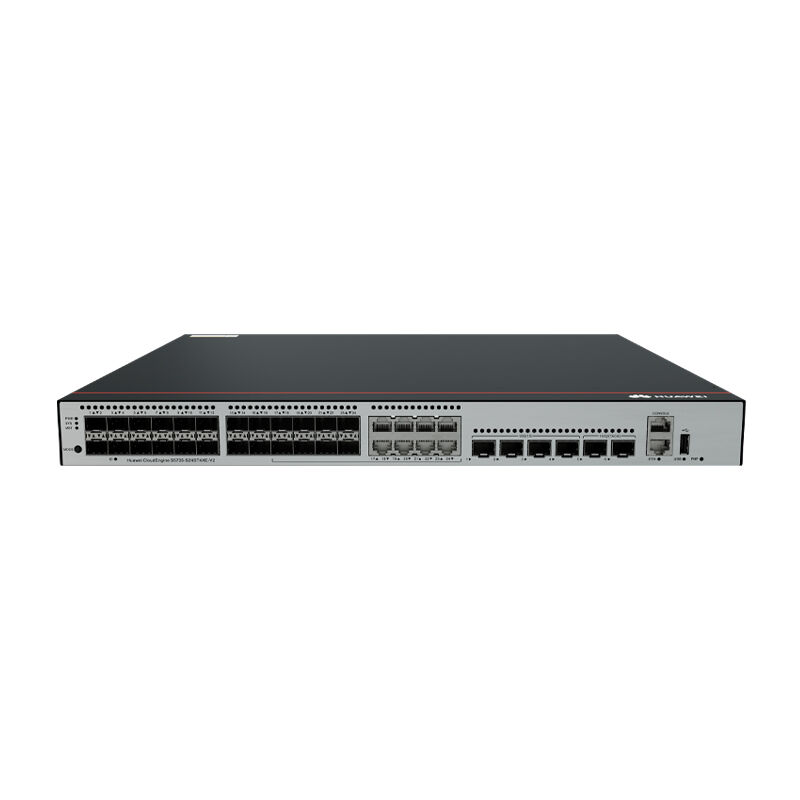

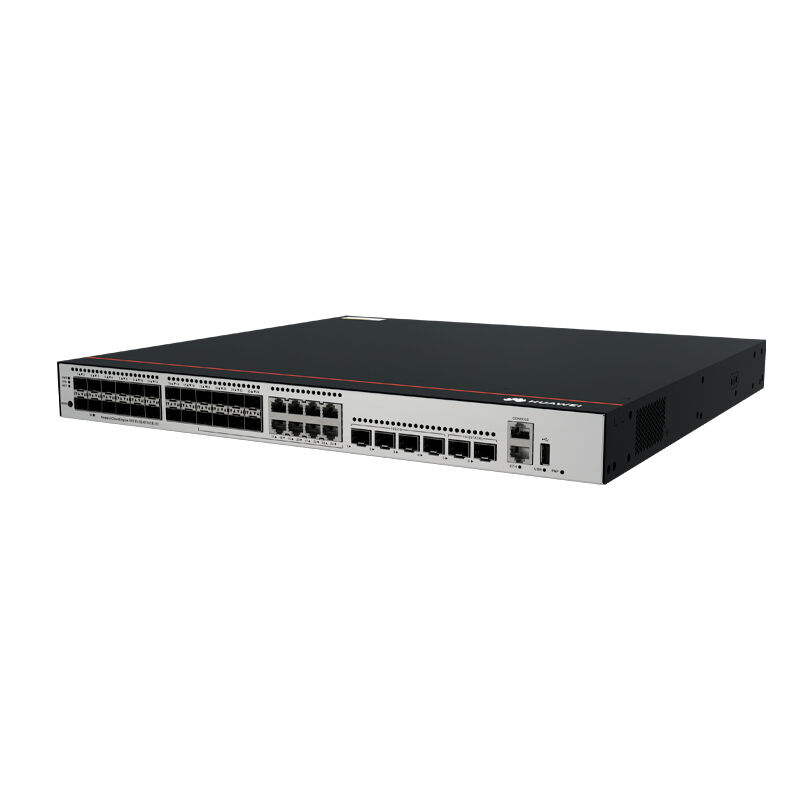

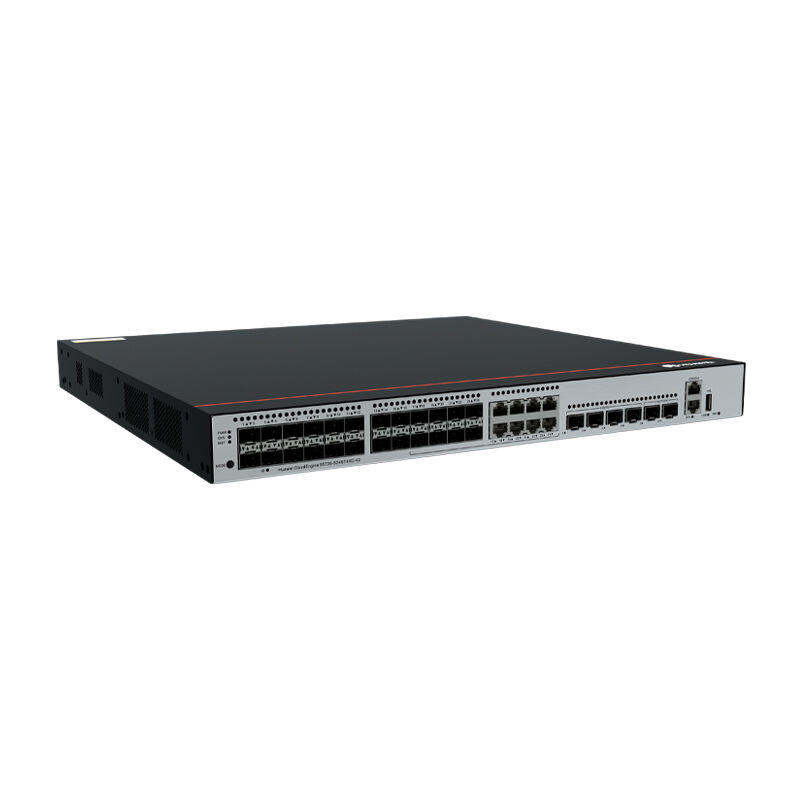

Brand Name:
Huawei
Model Number:
S5735-S24ST4XE-V2
Document:
| Model | S5735-S24ST4XE-V2 |
|---|---|
| Part Number | 98012231 |
| Description | S5735-S24ST4XE-V2 (24*GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+ ports, 2*12GE stack ports, without power module) |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions: 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions: 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.) |
| Weight with packaging [kg(lb)] | 6.85 kg (15.1 lb) |
| Typical power consumption [W] | 31.6 W |
| Maximum power consumption [W] | 48.70 W (with two 80 W AC power modules) 85.78 W (with two 1200 W DC power modules) |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| PoE | Not supported |
| (1) | One MODE button | (7) | One ETH management port |
| (2) | Sixteen 100/1000BASE-X ports | (8) | One USB port |
| (3) | Eight Combo ports (100/1000BASE-X optical ports and 10/100/1000BASE-T electrical ports) | (9) | One PNP button |
| (4) | Four 10GE SFP+ ports | (10) | Ground screw |

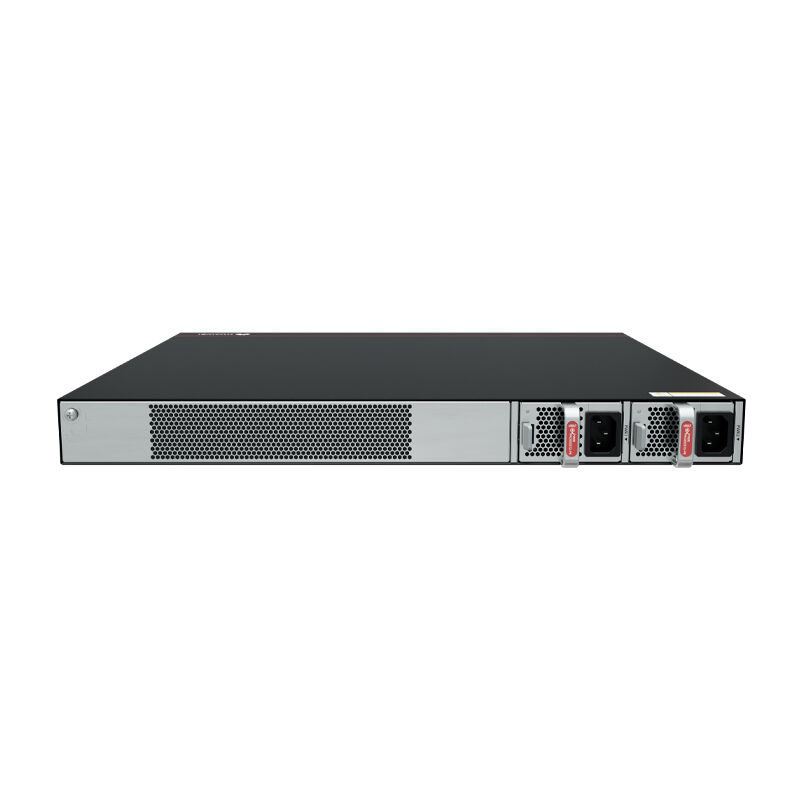

| (5) | Two stack ports | (11) | Power module slot 1 |
| (6) | One console port | (12) | Power module slot 2 |
| No. | Indicator | Name | Color | Status | Description |
|---|---|---|---|---|---|
| 1 | PWR | Power module indicator | - | Off | The switch is powered off. |
| Green | Steady on | The power supply is normal. | |||
| Yellow | Steady on | The switch has multiple power modules installed. Any of the following situations occurs in a power module slot: • A power module is available but not connected to power source • The power module in this slot has failed |
|||
| 2 | SYS | System status indicator | - | Off | The system is not running. |
| Green | Fast blinking | The system is starting. | |||
| Green | Steady on | During system startup preparation phase (maximum 30 seconds). | |||
| Green | Slow blinking | The system is running normally. | |||
| Red | Steady on | The system does not work normally after registration, or a fan/temperature alarm has been generated. | |||
| 3 | MST | Stack indicator | - | Off | Default: Switch is standby/slave in stack or stacking not enabled Mode change: Stack mode not selected |
| Green | Steady on | Stack mode selected. Switch is standby/slave in stack, service port indicators show stack ID. | |||
| Green | Blinking | Default: Switch is master in stack or standalone with stacking enabled Mode change: Stack mode selected, service port indicators show master stack ID |
|||
| 4 | MODE | Mode switch button | - | - | • Press once: Service port indicators change to stack mode showing local stack ID • Press again: Service port indicators restore to default mode showing connection status • Auto-restore after 45 seconds inactivity • Hold 6s in V600R023C00+: Starts web initial login mode |
| 5 | ID | ID indicator | - | Off | ID indicator not used (default state) |
| Blue | Steady on | Identifies switch for maintenance (remote activation) | |||
| 6 | - | Optical service port indicator | Two indicators per port (ACT: yellow, LINK: green) | Various | Meanings vary by mode (see detailed tables) |
| 7 | - | Electrical/optical service port indicator | One indicator per port | Various | Port position indicators with arrowheads |
| 8 | ETH | ETH port indicator | - | Off | ETH port not connected |
| Green | Steady on | ETH port connected | |||
| Green | Blinking | ETH port sending or receiving data | |||
| 9 | USB | USB-based deployment indicator | - | Off | No USB flash drive installed or indicator failure |
| Green | Steady on | USB-based deployment successful | |||
| Green | Blinking | USB-based deployment in progress | |||
| Red | Steady on | USB-based deployment failed |
