Brand Name:
Huawei
Model Number:
S5735-S24T4XE-V2
Document:
| Model | S5735-S24T4XE-V2 |
|---|---|
| Part Number | 98012016 |
| Description | S5735-S24T4XE-V2 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, without power module) |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding protruding parts): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (including protruding parts): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.) |
| Weight with packaging [kg(lb)] | 7.48 kg (16.49 lb) |
| Typical power consumption [W] | 26.20 W |
| Maximum power consumption [W] | 33.10 W (with two 80 W AC power modules) 45.75 W (with two 180 W AC power modules) 85.20 W (with two 1200 W DC power modules) |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| PoE | Not supported |

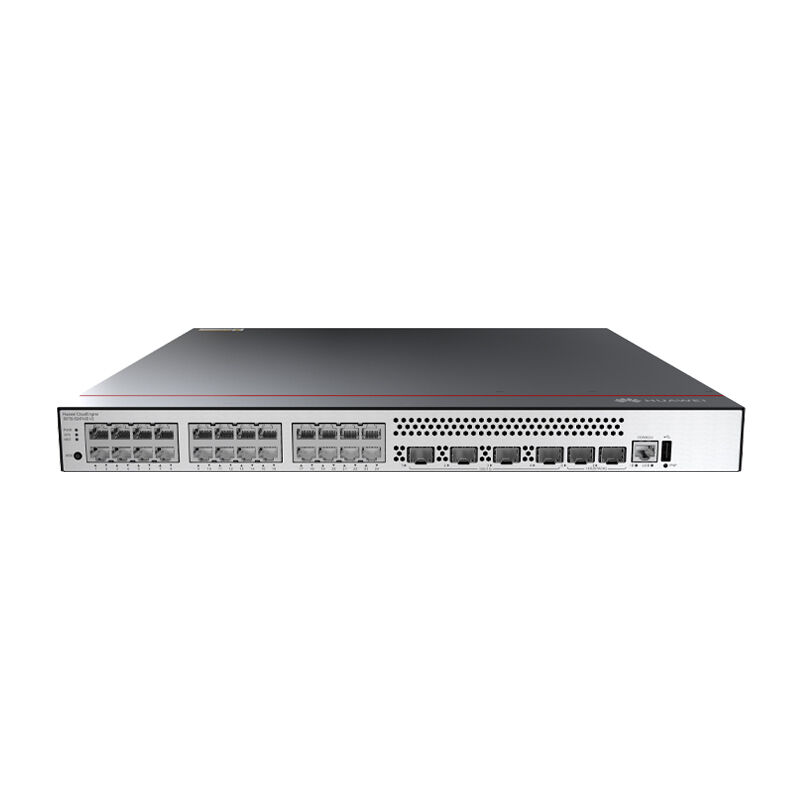

| (1) | One MODE button | (6) | One USB port |
| (2) | Twenty-four 10/100/1000BASE-T ports | (7) | One PNP button |
| (3) | Four 10GE SFP+ ports | (8) | Ground screw |
| (4) | Two stack ports | (9) | Power module slot 1 |
| (5) | One console port | (10) | Power module slot 2 |
