Brand Name:
Huawei
Model Number:
S5735-L8P4S-A-V2
Document:
| Model | S5735-L8P4S-A-V2 |
|---|---|
| Part Number | 98011986 |

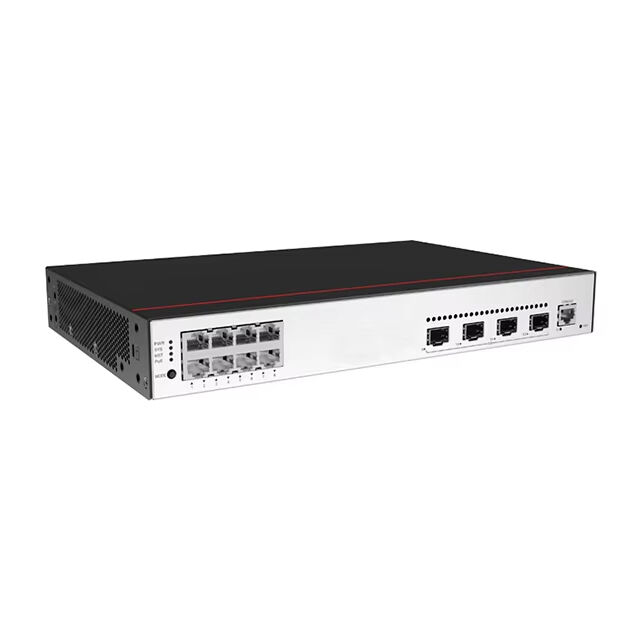

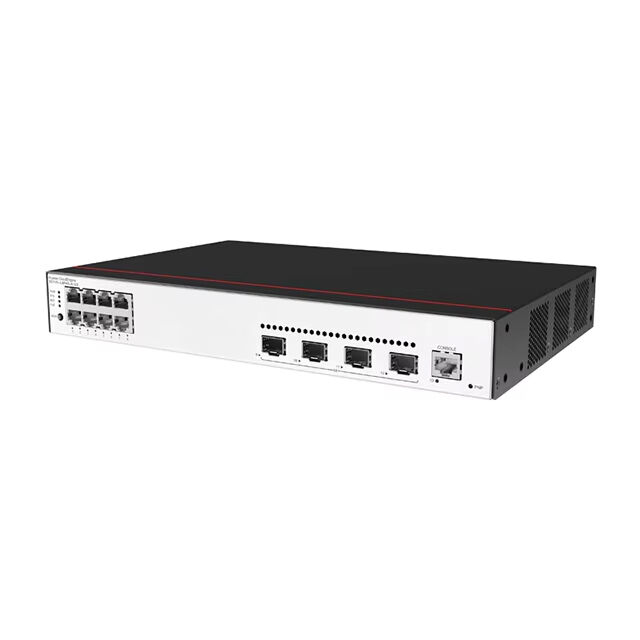

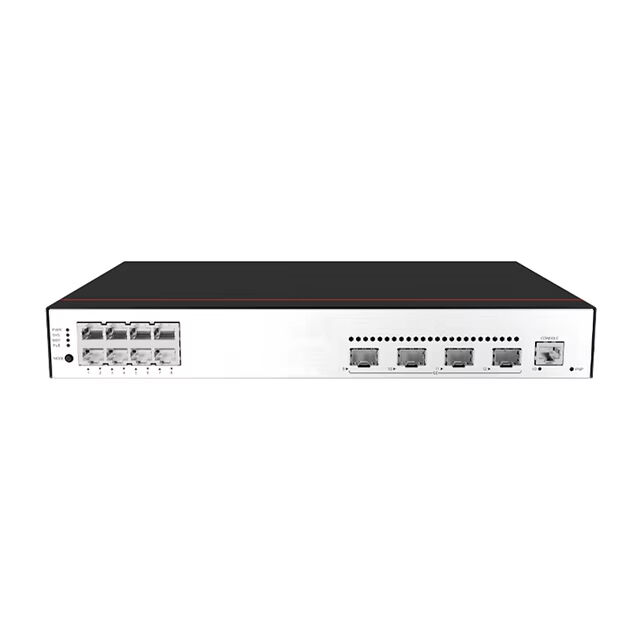

| Description | S5735-L8P4S-A-V2 (8*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, built-in AC power) |
| Dimensions without packaging | Basic dimensions: 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.) Maximum dimensions: 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.) |
| Weight with packaging | 3.05 kg (6.72 lb) |
| Typical power consumption | 19.99 W |
| Maximum power consumption | Without PoE: 25.09 W Full PoE load: 166.65 W (PoE: 125 W) |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| PoE | Supported |
| Model | S5735-L8P4S-A-V2 |
|---|---|
| Part Number | 98011986 |
| Description | S5735-L8P4S-A-V2 (8*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, built-in AC power) |
| Dimensions without packaging | Basic dimensions: 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.) Maximum dimensions: 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.) |
| Dimensions with packaging | 90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.) |
| Chassis height | 1 U |
| Weight without packaging | 2.23 kg (4.92 lb) |
| Weight with packaging | 3.05 kg (6.72 lb) |
| Typical power consumption | 19.99 W |
| Typical heat dissipation | 68.21 BTU/hour |
| Maximum power consumption | Without PoE: 25.09 W Full PoE load: 166.65 W (PoE: 125 W) |
| Maximum heat dissipation | Without PoE: 85.61 BTU/hour Full PoE load: 568.63 BTU/hour |
| Static power consumption | 17.19 W |
| MTBF | 69.71 years |
| MTTR | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) | 47 dB(A) |
| Noise at normal temperature (acoustic pressure) | 35 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Long-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on operating temperature variation rate | When altitude is 1800-5000 m (5906-16404 ft.), highest operating temperature reduces by 1°C (1.8°F) every 220 m (722 ft.) increase. Devices cannot start below 0°C (32°F). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude | 0-5000 m (0-16404 ft.) |
| Storage altitude | 0-5000 m (0-16404 ft.) |

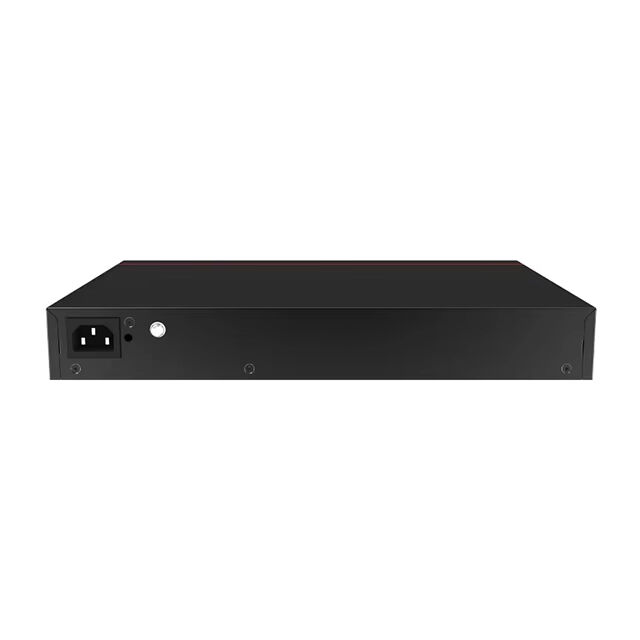

| Power supply mode | AC built-in |
| Rated input voltage | AC input: 100-240 V AC; 50/60 Hz |
| Input voltage range | AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
| Maximum input current | 3 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
