Brand Name:
Huawei
Model Number:
S5735-L24P4XE-A-V2
Document:

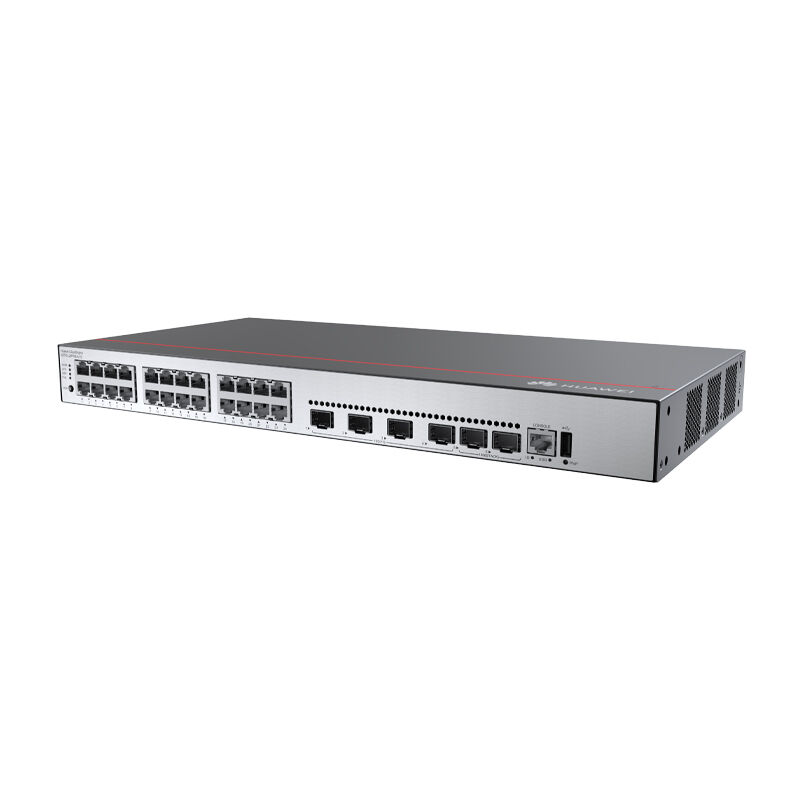

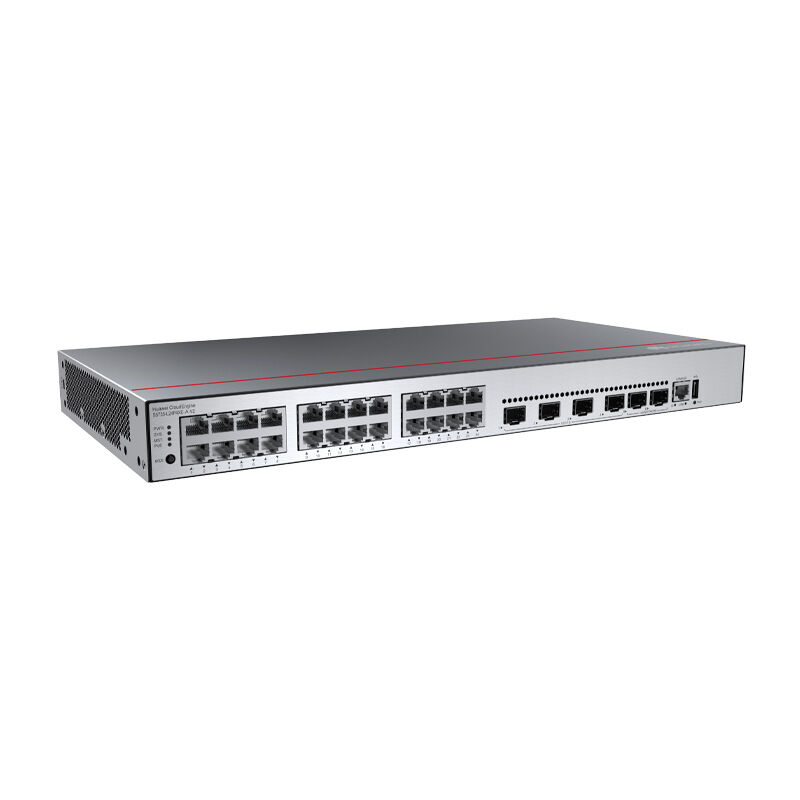

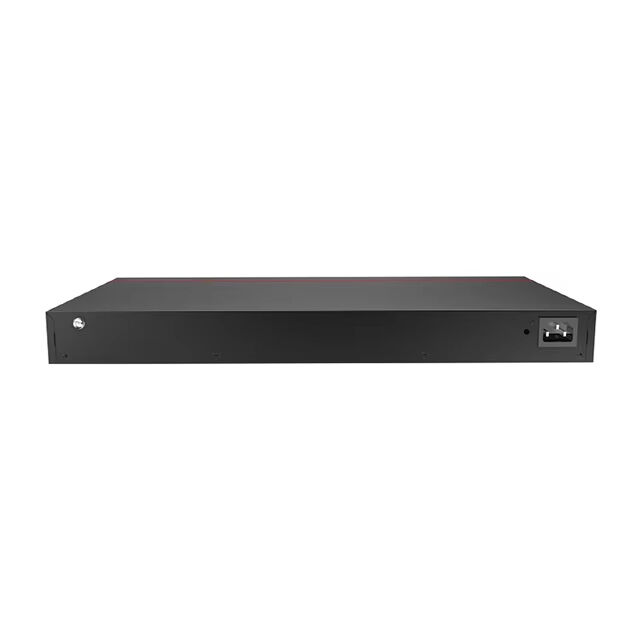

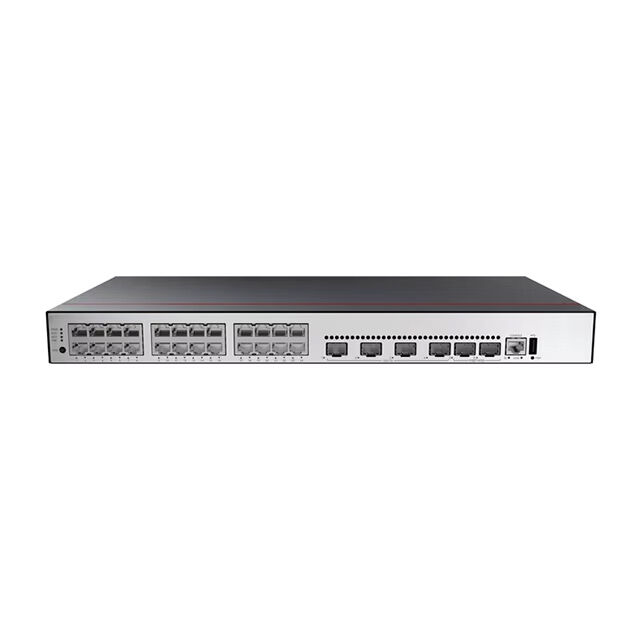

The Huawei Switch S5735-L24P4XE-A-V2 (Part Numbers: 98012026, 98012026-001) is built on next-generation high-performance hardware and Huawei's unified software platform. These CloudEngine S5735-L-V2 series switches deliver flexible Ethernet networking, comprehensive security control methods, and simplified operations and maintenance.
Supporting multiple Layer 3 routing protocols, these switches provide enhanced performance and expanded service processing capabilities, making them ideal for various industries including healthcare, retail, mining, and internet services.
| Model | S5735-L24P4XE-A-V2 |
|---|---|
| Part Number | 98012026/98012026-001 |
| Description | S5735-L24P4XE-A-V2 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, PoE+, built-in AC power) |
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding protruding parts): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (depth from front panel ports to rear protruding parts): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Weight with packaging [kg(lb)] | 3.81 kg (8.4 lb) |
| Typical power consumption [W] | 39.84 W |
| Maximum power consumption [W] |
Without PoE: 55.40 W Full PoE load: 496.08 W (PoE: 400 W) |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| PoE | Supported |
