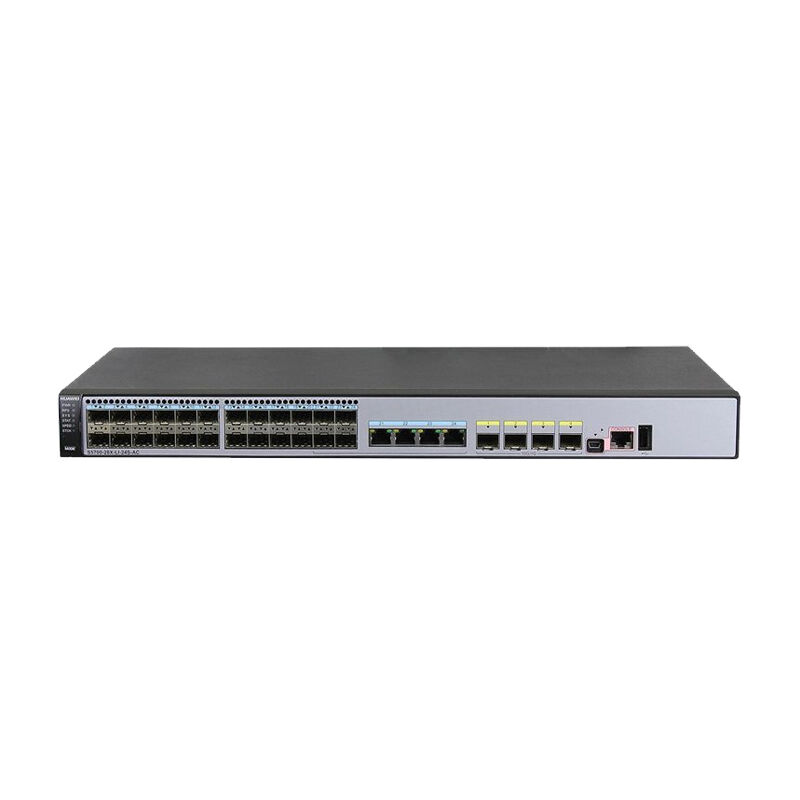

Brand Name:
Huawei
Model Number:
S5700-28X-LI-24S-AC
Document:
| Model | S5700-28X-LI-24S-AC |
| Part Number | 02355271 |
| Ports | 24 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports |
| Forwarding Performance | 96 Mpps |
| Switching Capacity | 256 Gbit/s |
| MAC Address Table | 16K MAC |
| VLAN Features | 4K VLANs |
| Power | AC Power Supply |
| Dimensions (W x D x H) | 44.2 cm x 22 cm x 4.36 cm |
| (1) | Twenty 100/1000BASE-X ports | (4) | One mini USB Port |
| (2) | Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) | (5) | One console port |
| (3) | Four 10GE SFP+ ports | (6) | One USB port |
| (1) | Ground screw | (3) | Jack for AC terminal locking latch |
| (2) | AC socket | (4) | RPS socket |
| Model | Description |
|---|---|
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| Models | S5700-28P-LI-24S-BAT | S5700-28X-LI-24S-AC |
|---|---|---|
| Ports | 28 Gig SFP, 4 of which are dual-purpose 10/100/1000 or SFP | 24 x GE SFP ports 4 x Combo 10/100/1,000 Base-T Ethernet ports |
| Power Supply | AC model, not supporting RPS | AC model, supporting RPS |
| Support Battery Module | AC model, supporting RPS | AC model, supporting RPS |
| Software Image | Lite software Image | Lite software Image |
