Brand Name:
Huawei
Model Number:

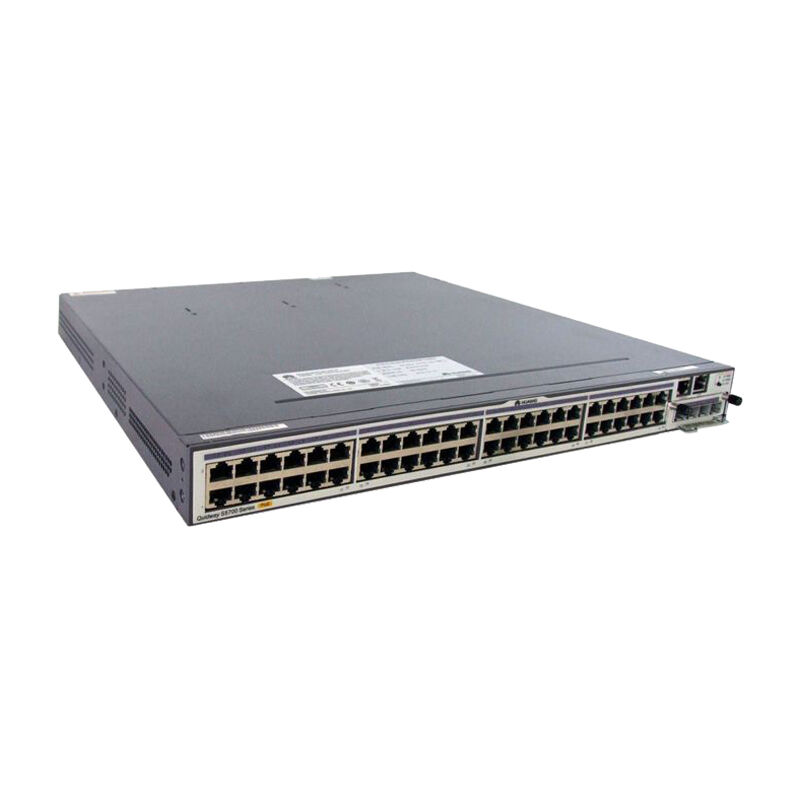

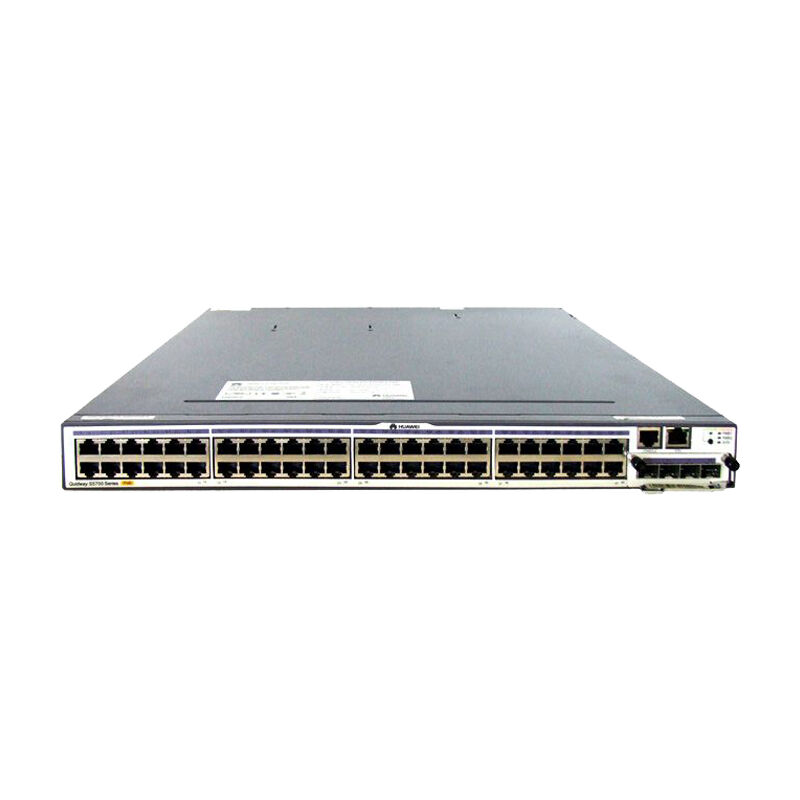

S5700-52C-PWR-EI
Document:
| Model | S5700-52C-PWR-EI |
|---|---|
| Part Number | 02352366 |
| Downlink Ports | 48 × PoE+ 10/100/1000BASE-T ports |
| Extended Slots | 2 |
| Forwarding Performance | 132 Mpps |
| Switching Capacity | 256 Gbit/s |
| Stack Support | Supported |
| Stack Ports | Two stack ports available on each stack card |
| Power Supply | 2 power modules (Purchase Separately) |
| Heat Dissipation | Pluggable fan modules for forced air cooling |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| Dimensions (W x D x H) | 44.2 cm x 42 cm x 4.36 cm |
| Model | Description |
|---|---|
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| Feature | S5700-52P-LI-AC | S5700-52C-PWR-EI |
|---|---|---|
| Downlink Ports | 48 x 10/100/1000 Base-T Ethernet Ports | 48 × PoE+ 10/100/1000BASE-T ports |
| Uplink Ports | 4 x GE SFP Ports | Sub-cards supported the uplink ports |
| Power Supply | AC Power Supply | No Power Supply (This module should purchase separately) |
| PoE Supported | None | Yes |
