Brand Name:
Huawei
Model Number:

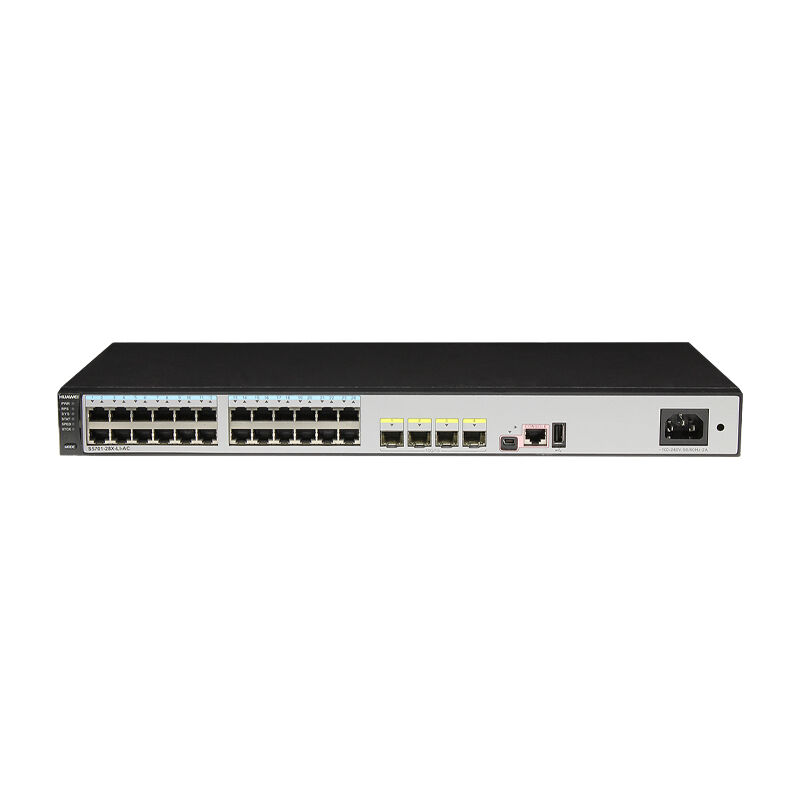

S5701-28X-LI-AC
Document:
| Model | S5701-28X-LI-AC |
|---|---|
| Part Number | 02357675 |
| Fixed Ports | 24 x 10/100/1,000 Base-T Ethernet ports 4 x 10 GE SFP+ ports |
| MAC Address Table Size | 16 MAC |
| Voltage Required | AC: Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 47/63 Hz |
| Power Device | AC power supply, supporting RPS |
| Power Consumption Operational | < 39.5W |
| Forwarding Performance | 96 Mpps |
| Switching Capacity | 256 Gbit/s |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Weight | 4.5 kg |
| Model | Description |
|---|---|
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-10G-USR | 10G Base-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| Feature | S5701-28X-LI-AC | S5701-28X-LI-24S-AC |
|---|---|---|
| Fixed Ports | 24 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports | 24 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports |
| Forwarding Performance | 96 Mpps | 96 Mpps |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s |
| Power Supply | AC power supply, front power sockets, front access | AC power supply, front power sockets, front access |
| Power Consumption | < 39.5W | < 60W |
