Brand Name:
Huawei
Model Number:

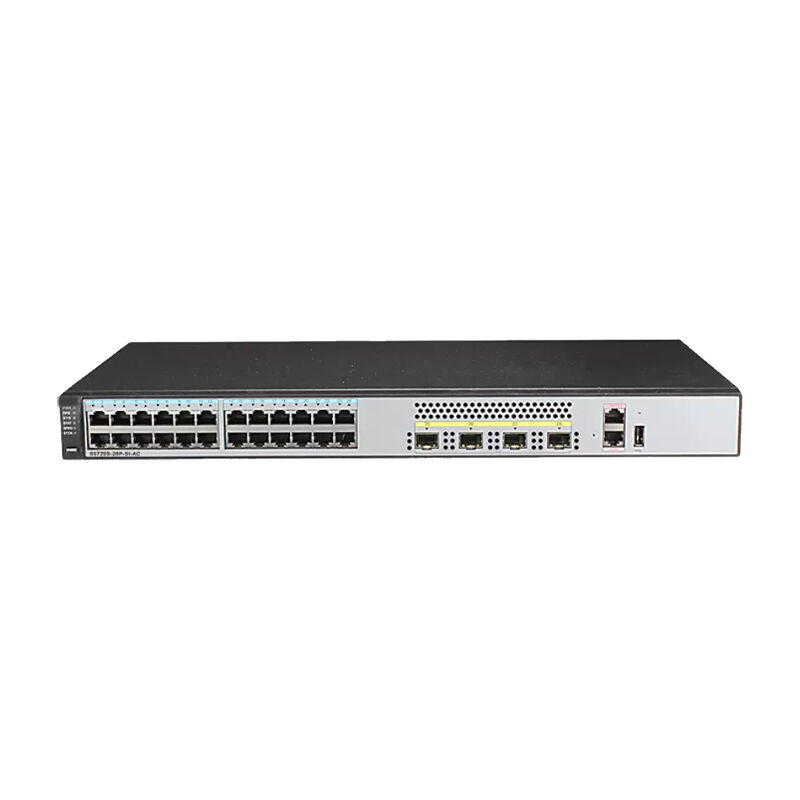

S5700S-28X-LI-AC
Document:
| Specification | Details |
|---|---|
| Model | S5700S-28X-LI-AC |
| Part Number | 02350HEC |
| Downlink Ports | Twenty-four 10/100/1000BASE-T ports |
| Uplink Ports | Four 10GE SFP+ ports |
| MAC Address | 16K |
| VLAN | 4K |
| Forwarding Performance | 96 Mpps |
| Switching Capacity | 256 Gbit/s |
| Stack | Supported |
| Stack Connection Mode | Service port connection |
| Power | AC 110/220V & RPS1800 redundant power supply |
| Heat Dissipation | Forced air cooling by Built-in fans |
| Installation Mode | Rack mounting, desk mounting, wall mounting |
| 300-mm deep cabinet | Not Supported |
| Dimensions (W x D x H) | 44.2 cm x 22 cm x 4.36 cm |
| Model | Description |
|---|---|
| LE2MGSC40DE0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC) |
| LE2MGSC40ED0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
| SFP-GE-BXU1-SC | 1000Base, BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| SFP-GE-ZBXD1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm (Tx) / 1490nm (Rx), 80km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm (Tx) / 1570nm (Rx), 80km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) |
| eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| Feature | S5700S-28X-LI-AC | S5700-28X-LI-24S-AC |
|---|---|---|
| Downlink Ports | 24 x 10/100/1,000 Base-T Ethernet ports | 24 x GE SFP ports 4 x Combo 10/100/1,000 Base-T Ethernet ports |
| Uplink Ports | 4 x 10 GE SFP+ ports | 4 x 10 GE SFP+ ports |
| Power Supply | AC model, supporting RPS | AC model, supporting RPS |
