Brand Name:
Huawei
Model Number:
S5720-52X-PWR-SI-AC
Document:

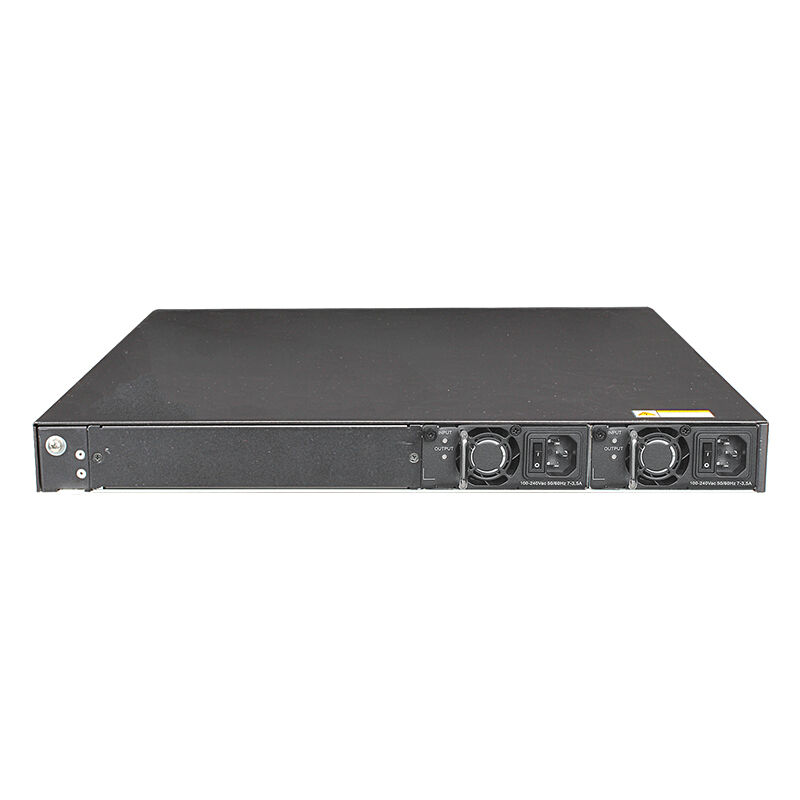

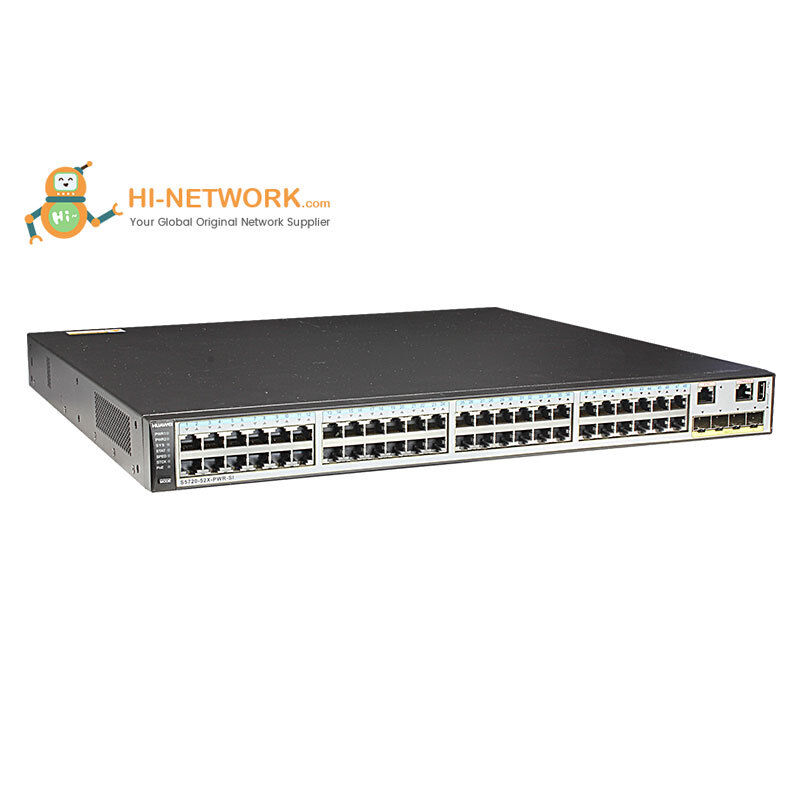

The Huawei S5720-52X-PWR-SI-AC (02350DLX) is a high-performance Layer 3 Ethernet switch designed for enterprise networking applications. This model features forty-eight 10/100/1000BASE-T PoE+ ports and four 10G SFP+ uplink ports, providing robust connectivity and power delivery capabilities.
| Model | S5720-52X-PWR-SI-AC |
| Part Number | 02350DLX |
| Memory (RAM) | 512 MB |
| Flash Memory | 512 MB total (view available size using display version command) |
| PoE Support | Supported |
| Weight with Packaging | 9.6 kg (21.17 lb) |
| Dimensions (H x W x D) |
Basic: 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum: 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| Feature | S5720-52X-PWR-SI-AC | S5720-52X-SI-AC |
|---|---|---|
| Downlink Ports | 48 x Ethernet 10/100/1,000 PoE+ ports | 48 x Ethernet 10/100/1,000 ports |
| Uplink Ports | 4 x 10 Gig SFP+ | 4 x 10 Gig SFP+ |
| Power Supply | AC Power Supply | AC Power Supply |
| PoE Support | Supported | None |
