Brand Name:
Huawei
Model Number:
S5730-68C-PWR-SI-AC
Document:
| Model | S5730-68C-PWR-SI-AC |
|---|---|
| Part Number | 98010714 |
| Memory | 1 GB |
| Flash Memory | 512 MB in total. To view the available flash memory size, run the display version command. |
| PoE | Supported |
| Weight (including package) | 8.8 kg (19.4 lb) |
| Dimensions (H x W x D) | Basic dimensions (excluding protruding parts): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.) Maximum dimensions (depth from front panel ports to rear handle): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.) |

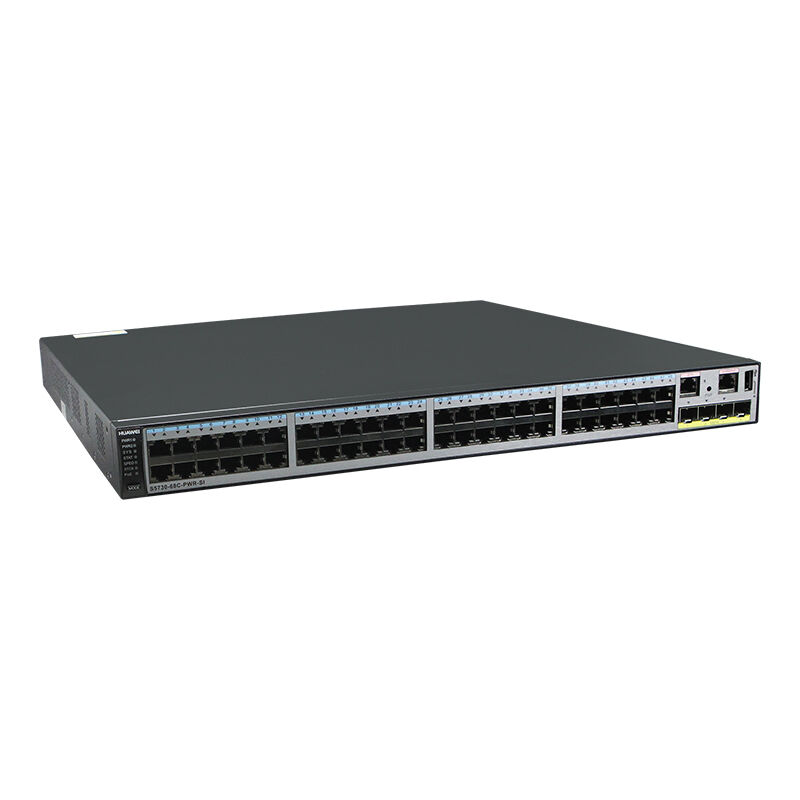

| Component | Description |
|---|---|
| ① | Forty-eight PoE+ 10/100/1000BASE-T ports |
| ② | Four 10GE SFP+ ports |
| ③ | One ETH management port |
| ④ | One PNP button |
| ⑤ | One console port |
| ⑥ | One USB port |

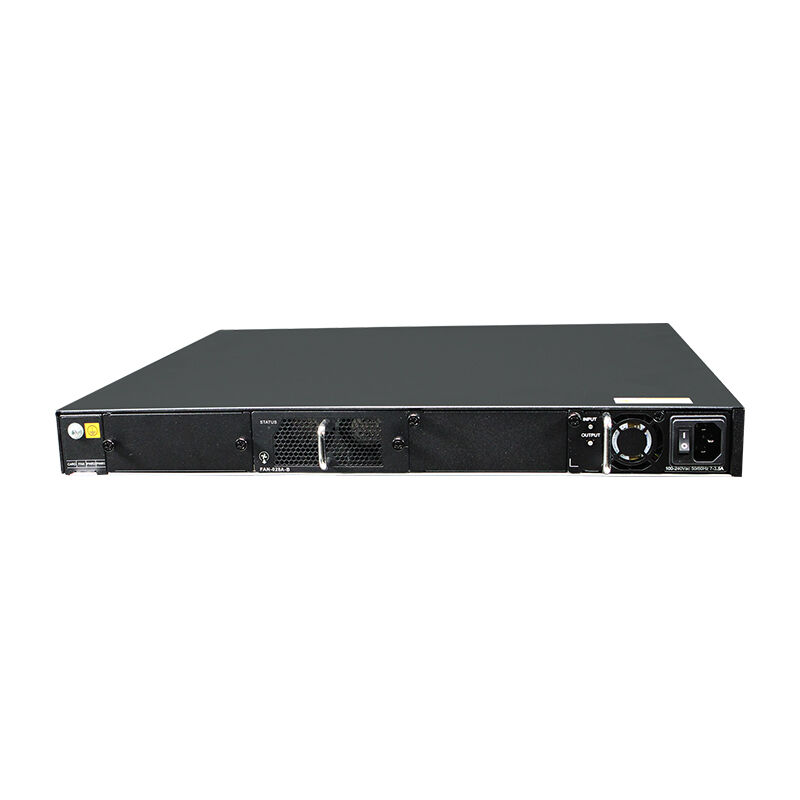

| ⑦ | Ground screw |
| ⑧ | ESN label |
| ⑨ | Rear card slot |
| ⑩ | Fan slot |
| ⑪ | Power module slot 2 |
| ⑫ | Power module slot 1 |
| Model | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
| eSFP-GE-ZX100-SM1550 | eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| SFP-1000BaseT | 1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OSXD22N00 | Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-10G-iLR | Optical Transceiver, SFP+, 9.8G, Single-mode Module (1310nm, 1.4km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| OSX040N01 | SFP+, 10G, Single-mode Module (1550nm, 40km, LC) |
| SFP-10G-ER-1310 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 40km, LC) |
| SFP-10G-CU3M | Huawei SFP+, 10G, High Speed Direct-attach Cables, 3m, SFP+20M, CC2P0.254B(S), SFP+20M, Used indoor |
| Item | S5730-48C-SI-AC | S5730-48C-PWR-SI-AC | S5730-68C-SI-AC | S5730-68C-PWR-SI-AC | S5730-68C-PWR-SI |
|---|---|---|---|---|---|
| Fixed Ports | 24 x 10/100/1,000 Base-T, 8 x 10 Gig SFP+ | 24 x 10/100/1,000 Base-T, 8 x 10 Gig SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ |
| MAC Address Table | 32K MAC | 32K MAC | 32K MAC | 32K MAC | 32K MAC |
| Dimensions (W x D x H) | 442 mm x 420 mm x 44.4 mm | 442 mm x 420 mm x 44.4 mm | 442 mm x 420 mm x 44.4 mm | 442 mm x 420 mm x 44.4 mm | 442 mm x 420 mm x 44.4 mm |
| Slot | One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card | One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card | One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card | One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card | One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card |
