Brand Name:
Huawei
Model Number:
S5720-36C-EI-28S-AC
Document:
| Model | S5720-36C-EI-28S-AC |
|---|---|
| Part Number | 02359503 |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| PoE | Not supported |
| Weight with packaging [kg(lb)] | 9.9 kg (21.83 lb) |
| Dimensions (H x W x D) | Basic dimensions (excluding protruding parts): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (depth from front panel ports to rear handle): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |

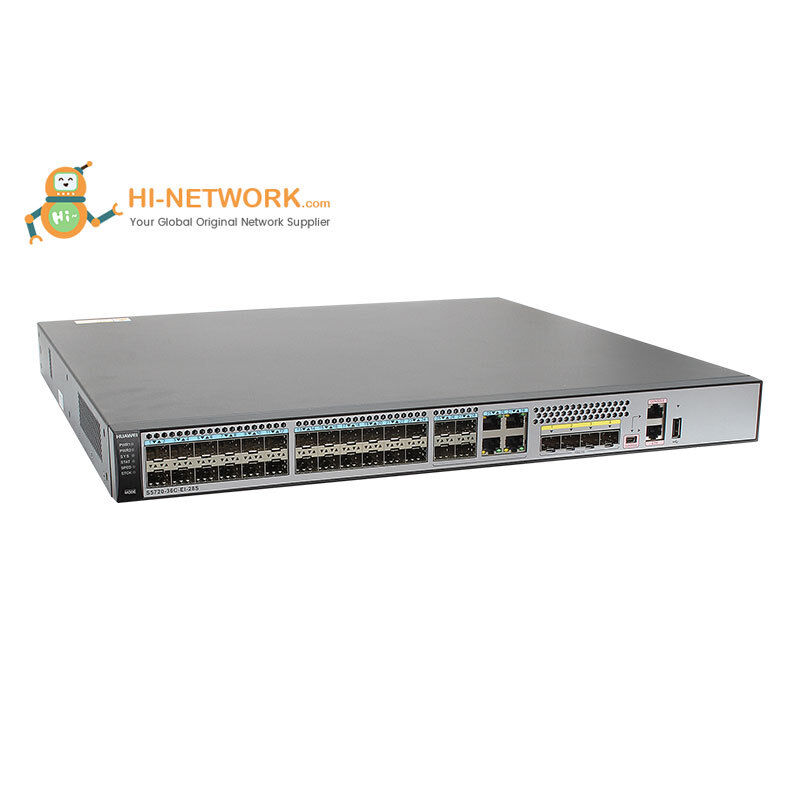

| Component | Description |
|---|---|
| ① | Twenty-four 100/1000BASE-X ports |
| ② | Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
| ③ | Four 10GE SFP+ ports |
| ④ | One mini USB port |
| ⑤ | One console port |
| ⑥ | One ETH management port |
| ⑦ | One USB port |

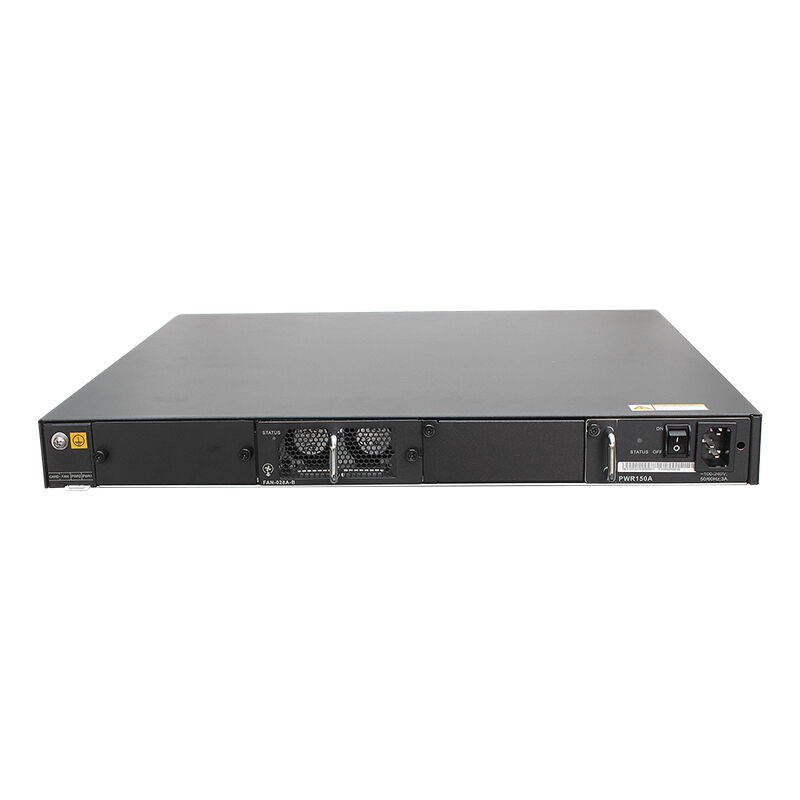

| ⑧ | Ground screw |
| ⑨ | ESN label |
| ⑩ | Rear card slot |
| ⑪ | Fan slot |
| ⑫ | Power module slot 2 |
| ⑬ | Power module slot 1 |
| Model | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) |
| Model | Description |
|---|---|
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.1km,LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.3km,LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm,10km,LC) |
| Model | Description |
|---|---|
| ES5D21X02S01 | 2 10 Gig SFP+ Interface Card (used in S5720EI series) |
| ES5D21X02T01 | 2 10 Gig RJ45 Interface Card (used in S5720EI series) |
| ES5D21VST000 | Dedicated stack card with 2*QSFP+ interface (Including one PCS of 1M QSFP+ cable, Used in S5720EI series) |
| Feature | S5720-36C-EI-AC | S5720-36C-PWR-EI-AC | S5720-36C-EI-28S-AC |
|---|---|---|---|
| Fixed Ports | 28 x 10/100/1,000 Base-T (4 GE Combo SFP), 4 x 10 Gig SFP+ | 28 x 10/100/1,000 Base-T (4 GE Combo SFP), 4 x 10 Gig SFP+ | 28 x 100/1,000 Base-X SFP (4 GE Combo), 4 x 10 Gig SFP+ |
| Extended Slots | One extended slot | One extended slot | One extended slot |
| PoE | Not supported | Supported | Not supported |
| Forwarding Performance | 132 Mpps | 132 Mpps | 132 Mpps |
| Switching Capacity | 598 Gbit/s | 598 Gbit/s | 598 Gbit/s |
| Front Power Input | No | No | No |
| Power Consumption | 39.5W | without PD: 48.5W, with PD: < 864.3W (PoE: 740W) | 47.9W |
