Brand Name:
Huawei
Model Number:
S5720S-28X-LI-24S-AC
Document:
| Model | S5720S-28X-LI-24S-AC |
|---|---|
| Part Number | 98010630 |
| Memory (RAM) | 512 MB |
| Flash Memory | 512 MB total (view available size using display version command) |
| PoE Support | Not supported |
| Weight with Packaging | 4.1 kg (9.04 lb) |
| Dimensions (H x W x D) |
Basic: 43.6 mm x 442.0 mm x 224.8 mm (1.72 in. x 17.4 in. x 8.85 in.) Maximum: 43.6 mm x 442.0 mm x 233.8 mm (1.72 in. x 17.4 in. x 9.21 in.) |

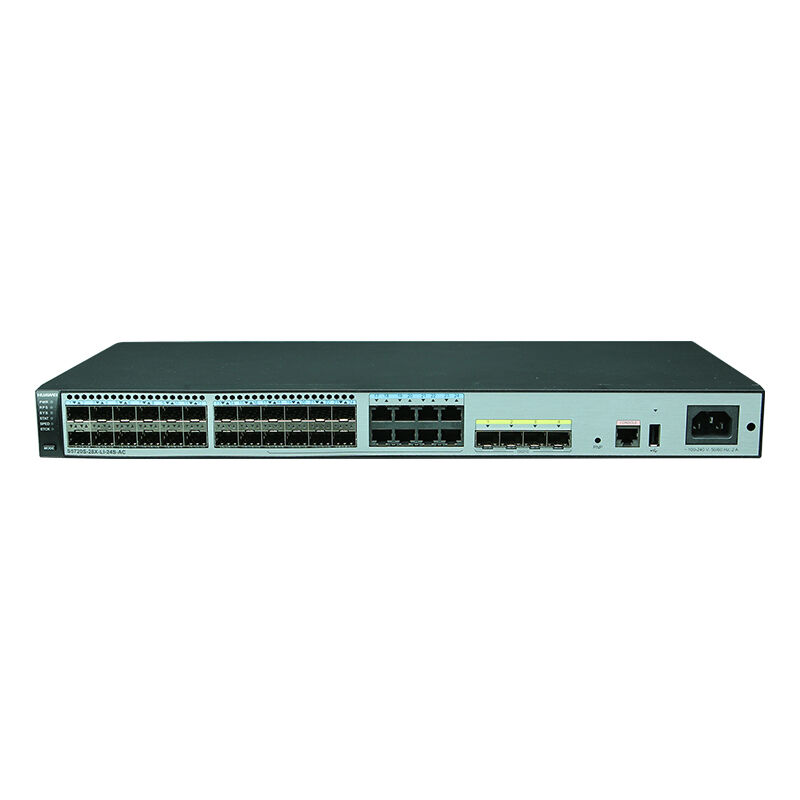

| Port Number | Description |
|---|---|
| ① | Sixteen 100/1000BASE-X ports |
| ② | Eight combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
| ③ | Four 10GE SFP+ ports |
| ④ | One PNP button |
| ⑤ | One console port |
| ⑥ | One USB port |
| ⑦ | AC socket |
| ⑧ | Jack for AC power cable locking strap |
| ⑨ | Ground screw |
| ⑩ | RPS socket |
