Brand Name:
Huawei
Model Number:

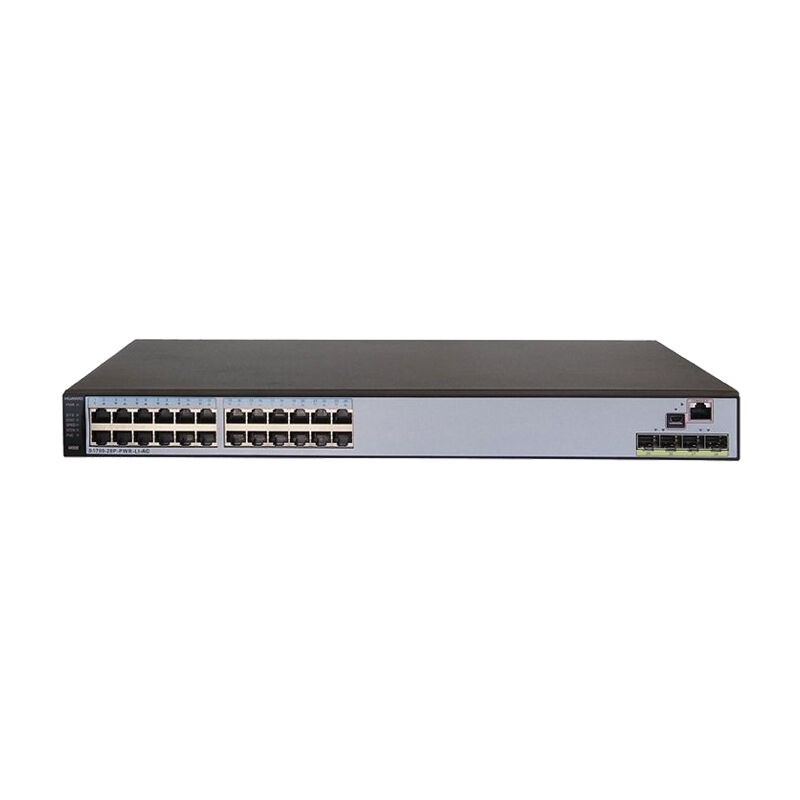

S5700-28P-PWR-LI-AC
Document:
| Model | S5700-28P-PWR-LI-AC |
|---|---|
| Part Number | 02353175 |
| Downlink Ports | 24 x PoE+ 10/100/1000BASE-T ports |
| Uplink Ports | 4 x GE SFP Ports |
| MAC Address | 16K |
| VLAN | 4K |
| Forwarding Performance | 96 Mpps |
| Switching Capacity | 256 Gbit/s |
| Stack Ports | -V200R001: the last two uplink 1000Base-X optical ports -V200R002 and later versions: four uplink 1000Base-X optical ports |
| Power | AC 110/220V & RPS1800 power supply |
| Heat Dissipation | Forced air cooling by Built-in fans |
| Memory (RAM) | 256 MB |
| Flash | -V200R001: 64 MB -V200R002 and later versions: 200 MB |
| Dimensions (W x D x H) | 442.0 mm x 310.0 mm x 43.6 mm |
| Model | Description |
|---|---|
| SFP-6GE-LR | 6GBase-LR Optical Transceiver, SFP, 6G, Single-mode Module 1310nm, 2km, LC |
| Model | Description |
|---|---|
| LE2MGSC40DE0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC) |
| LE2MGSC40ED0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
| SFP-GE-BXU1-SC | 1000Base, BIDI Optical Transceiver, SFP, GE, Single-mode Module (TX1490nm/RX1310nm, 10km, SC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
| SFP-GE-ZBXD1 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (1570nm (Tx) / 1490nm (Rx), 80km, LC) |
| SFP-GE-ZBXU1 | Optical Transceiver, eSFP, GE, BiDi Single-mode Module (1490nm (Tx) / 1570nm (Rx) ,80km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) |
| eSFP-GE-ZX100-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
| Model | Description |
|---|---|
| CWDM-SFPGE-1551 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1551nm, 80km, LC) |
| CWDM-SFPGE-1571 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1571nm, 80km, LC) |
| CWDM-SFPGE-1591 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1591nm, 80km, LC) |
| CWDM-SFPGE-1611 | CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1611nm, 80km, LC) |
| Model | Description |
|---|---|
| DWDM-SFPGE-1560-61 | DWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1560.61nm, 120km, LC) |
| Model | Description |
|---|---|
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45) |
| Feature | S5700-28P-PWR-LI-AC | S5700-28X-PWR-LI-AC |
|---|---|---|
| Downlink Ports | 24 x PoE+ 10/100/1000BASE-T ports | 24 x PoE+ 10/100/1000BASE-T ports |
| Uplink Ports | 4 x GE SFP Ports | 4 x 10GE SFP+ ports |
| Power Supply | AC Power Supply | AC Power Supply |
