Brand Name:
Huawei
Model Number:
S5720-56C-PWR-EI-AC1
Document:
The Huawei S5720-56C-PWR-EI-AC1 (Part Number: 02359578) is a high-performance gigabit switch designed for enterprise campus networks and data center applications. This switch delivers scalable gigabit access for terminals and provides resilient server support and aggregation capabilities.
| Model | S5720-56C-PWR-EI-AC1 |
|---|---|
| Part Number | 02359578 |
| Memory (RAM) | 2 GB |
| Flash Memory | 512 MB total (view available size using display version command) |
| Power over Ethernet | Supported |
| Weight with Packaging | 10.9 kg (24.03 lb) |
| Dimensions (H x W x D) |
Basic: 44.4 mm x 442.0 mm x 510.5 mm (1.75 in. x 17.4 in. x 20.1 in.) Maximum: 44.4 mm x 442.0 mm x 541.1 mm (1.75 in. x 17.4 in. x 21.3 in.) |

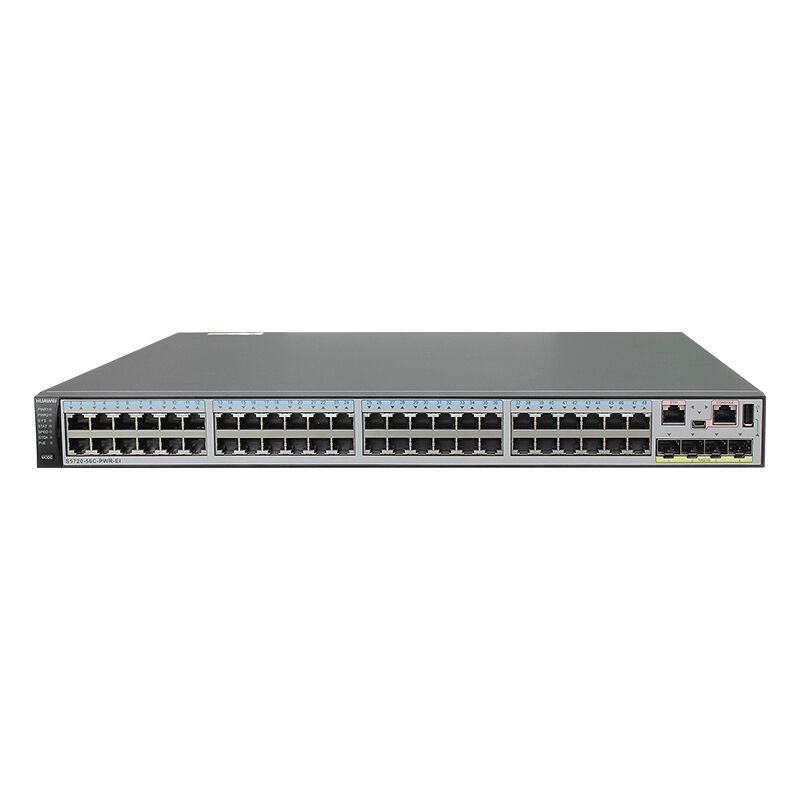

| Component | Description |
|---|---|
| ① | Forty-eight PoE+ 10/100/1000BASE-T ports |
| ② | Four 10GE SFP+ ports |
| ③ | One ETH management port |
| ④ | One mini USB port |
| ⑤ | One console port |
| ⑥ | One USB port |
| ⑦ | Ground screw |
| ⑧ | ESN label |

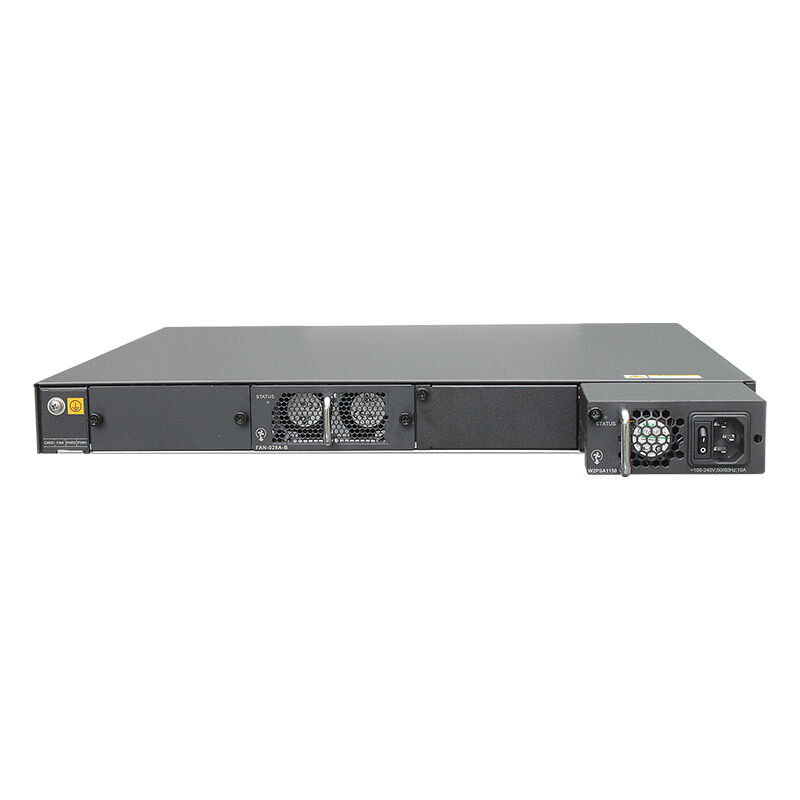

| ⑨ | Rear card slot |
| ⑩ | Fan slot |
| ⑪ | Power module slot 2 |
| ⑫ | Power module slot 1 |
