Brand Name:
Huawei
Model Number:
S5730S-68C-EI-AC
Document:
| Model | S5730S-68C-EI-AC |
|---|---|
| Part Number | 98010792 |
| Memory | 1 GB |
| Flash memory | 512 MB in total. To view available flash memory size, run the display version command. |
| PoE | Not supported |
| Weight (including package) | 8.5 kg (18.74 lb) |
| Dimensions (H × W × D) |
Basic dimensions (excluding protruding parts): 44.4 mm × 442.0 mm × 425.0 mm (1.75 in. × 17.4 in. × 16.73 in.) Maximum dimensions (depth measured from front ports to rear handle): 44.4 mm × 442.0 mm × 451.3 mm (1.75 in. × 17.4 in. × 17.77 in.) |

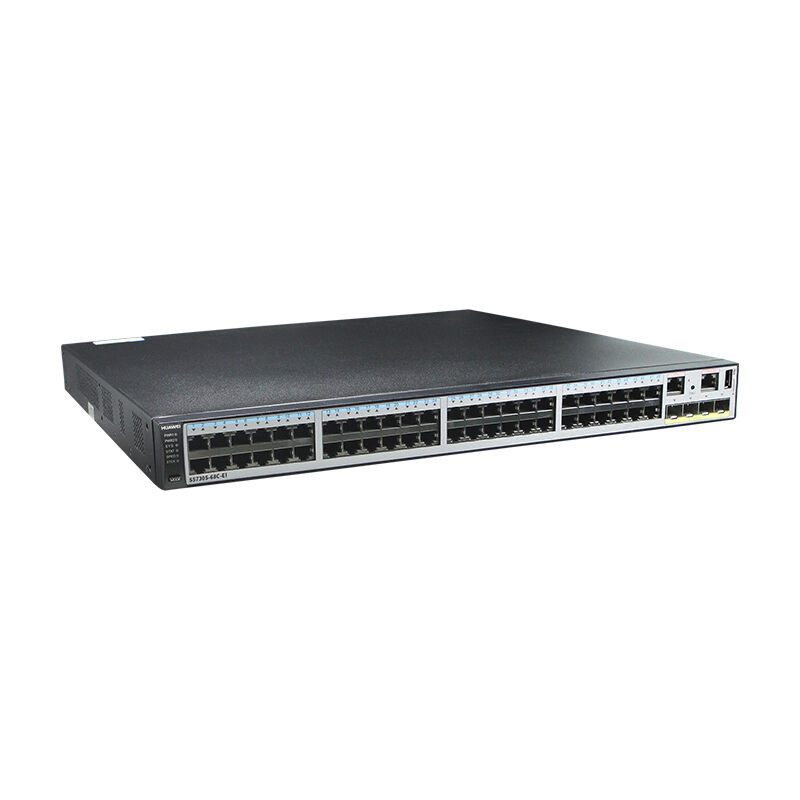

| ① | Forty-eight 10/100/1000BASE-T ports |
|---|---|
| ② | Four 10GE SFP+ ports |
| ③ | One ETH management port |
| ④ | One PNP button |
| ⑤ | One console port |
| ⑥ | One USB port |

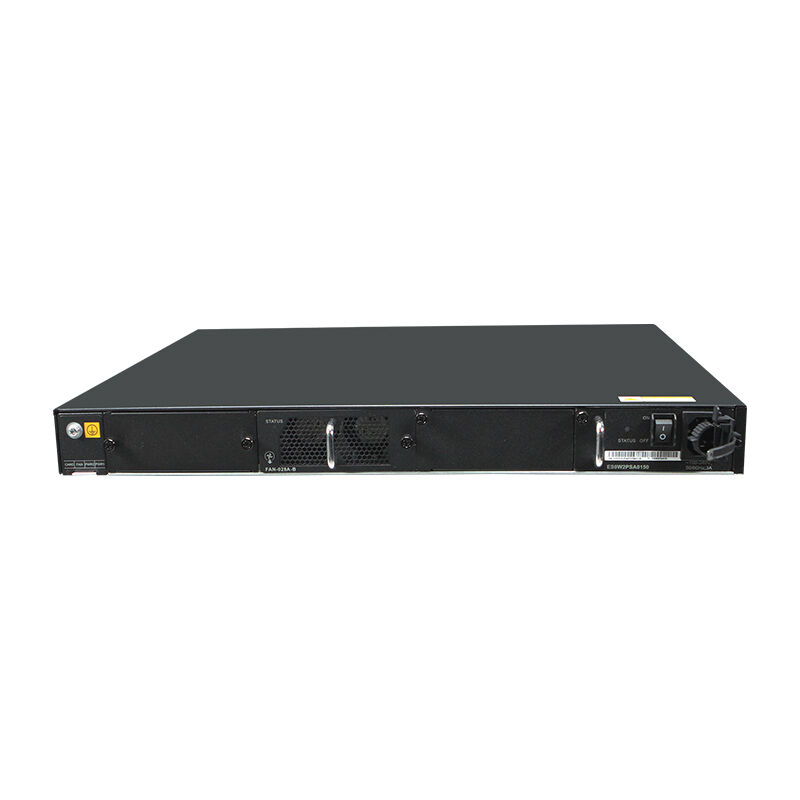

| ⑦ | Ground screw |
| ⑧ | ESN label |
| ⑨ | Rear card slot |
| ⑩ | Fan slot |
| ⑪ | Power module slot 2 |
| ⑫ | Power module slot 1 |
| Model | Description |
|---|---|
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| ESFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
