Brand Name:
Huawei
Model Number:
S5730-48C-PWR-SI-AC
Document:
| Model | S5730-48C-PWR-SI-AC |
|---|---|
| Part Number | 98010712 |
| Memory | 1 GB |
| Flash Memory | 512 MB total (view available size via display version command) |
| PoE Support | Yes |
| Weight (including package) | 8.3 kg (18.3 lb) |
| Dimensions (H × W × D) |
Basic: 44.4 mm × 442.0 mm × 425.0 mm (1.75 in. × 17.4 in. × 16.73 in.) Maximum: 44.4 mm × 442.0 mm × 451.3 mm (1.75 in. × 17.4 in. × 17.77 in.) |

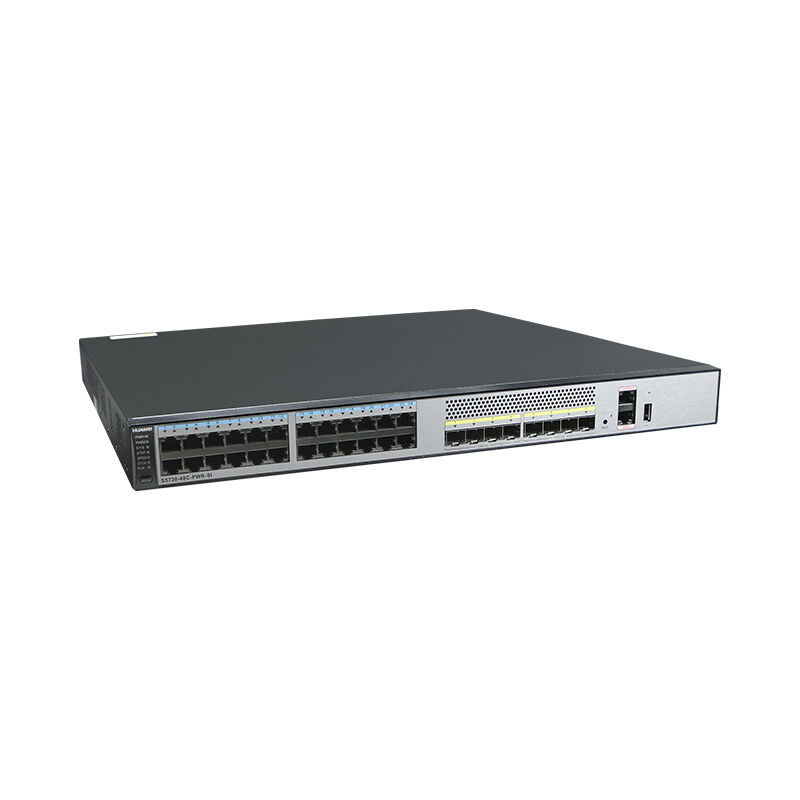

| ① | Twenty-four PoE+ 10/100/1000BASE-T ports |
|---|---|
| ② | Eight 10GE SFP+ ports |
| ③ | One PNP button |
| ④ | One console port |
| ⑤ | One ETH management port |
| ⑥ | One USB port |
| ⑦ | Ground screw |
| ⑧ | ESN label |
| ⑨ | Rear card slot |
| ⑩ | Fan slot |
| ⑪ | Power module slot 2 |
| ⑫ | Power module slot 1 |
| Model | Description |
|---|---|
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,40km, LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,80km, LC) |
| Item | S5730-48C-SI-AC | S5730-48C-PWR-SI-AC | S5730-68C-SI-AC | S5730-68C-PWR-SI-AC | S5730-68C-PWR-SI |
|---|---|---|---|---|---|
| Fixed Ports | 24 x 10/100/1,000 Base-T, 8 x 10 Gig SFP+ | 24 x 10/100/1,000 Base-T, 8 x 10 Gig SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ | 48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ |
| MAC Address Table | 32K MAC | 32K MAC | 32K MAC | 32K MAC | 32K MAC |
| Dimensions (W × D × H) | 442 mm × 420 mm × 44.4 mm | 442 mm × 420 mm × 44.4 mm | 442 mm × 420 mm × 44.4 mm | 442 mm × 420 mm × 44.4 mm | 442 mm × 420 mm × 44.4 mm |
| Slot | One extended slot supporting interface card: 4 x 40 GE QSFP+ interface card | ||||
