Brand Name:
Huawei
Model Number:
S5720-52X-EI-AC
Document:
Huawei S5720-52X-EI-AC switch, Next-Generation Enhanced Gigabit Switches, supports a large capacity of 2 GB SDRAM and 4 x 10GE uplink ports.
| Model | S5720-52X-EI-AC |
|---|---|
| Part Number | 02359589 |
| Memory (RAM) | 512 MB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| PoE | Not supported |
| Weight with packaging [kg(lb)] | 9.5 kg (20.95 lb) |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) |

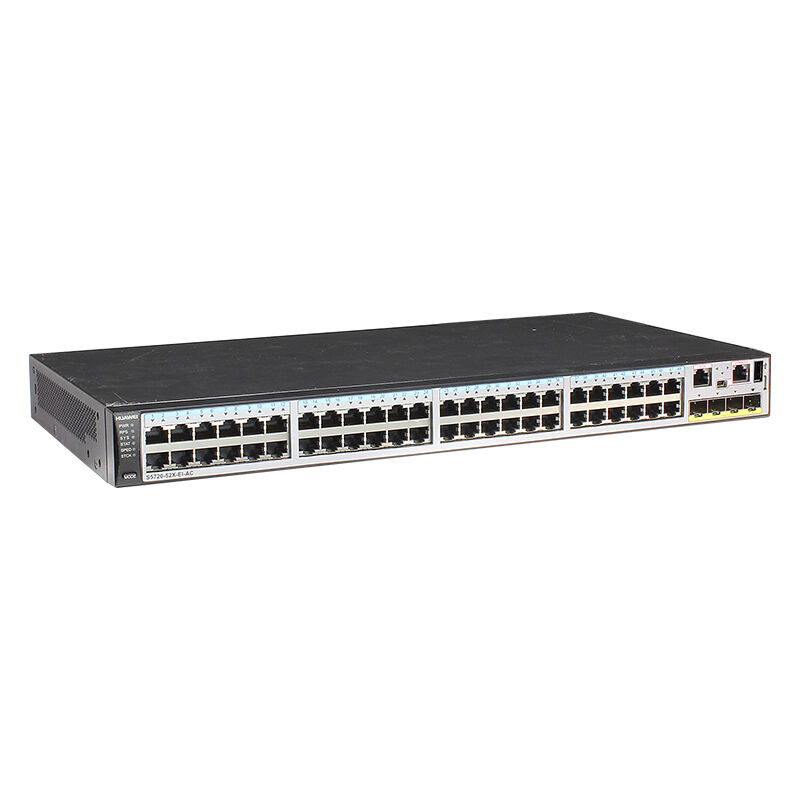

| ① | Forty-eight 10/100/1000BASE-T ports |
|---|---|
| ② | Four 10GE SFP+ ports |
| ③ | One ETH management port |
| ④ | One mini USB port |
| ⑤ | One console port |
| ⑥ | One USB port |
| ⑦ | Ground screw |

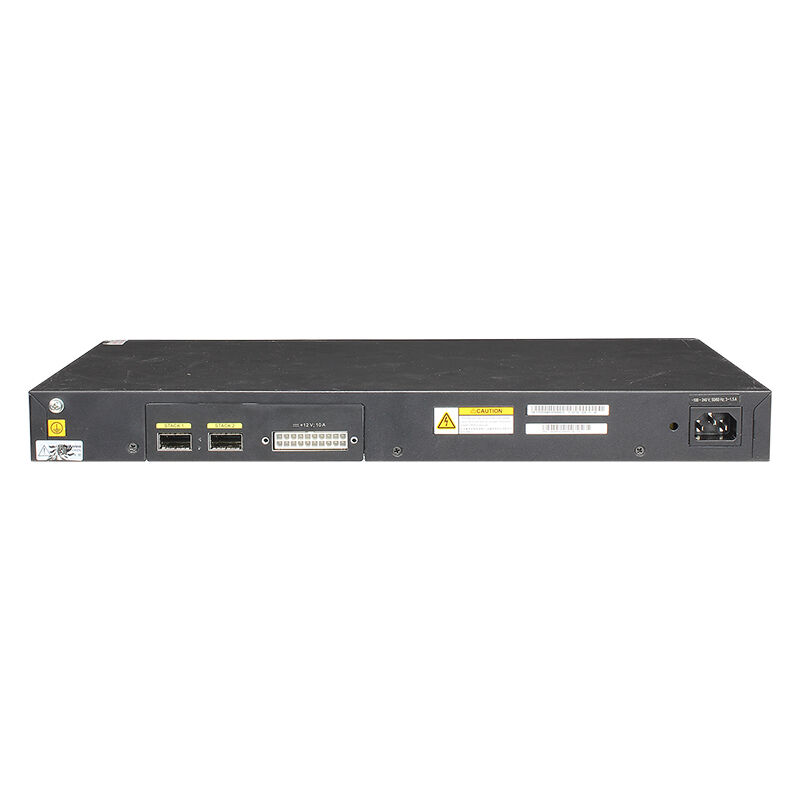

| ⑧ | Two QSFP+ stack optical ports |
| ⑨ | RPS socket |
| ⑩ | AC socket |
| Model | Description |
|---|---|
| QSFP-40G-iSR4 | 40GBase-iSR4 Optical Transceiver, QSFP+, 40G, Multi-mode (850nm, 0.15km, MPO) (Connect to four SFP+ Optical Transceiver) |
| Model | Description |
|---|---|
| LE2MGSC40DE0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 40km, LC) |
| LE2MGSC40ED0 | Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC) |
| Models | S5720-52X-EI-AC | S5720-52P-EI-AC |
|---|---|---|
| Downlink Ports | 48 x 10/100/1,000 Base-T Ethernet ports | 48 x 10/100/1,000 Base-T Ethernet ports |
| Uplink Ports | 4 x 10G SFP+ ports | 4 x 1,000 Base-X SFP ports |
| PoE Support | N/A | N/A |
| Power Supply | AC power supply, supporting RPS | AC power supply, supporting RPS |
