Brand Name:
Huawei
Model Number:
S5730S-48C-EI-AC
Document:

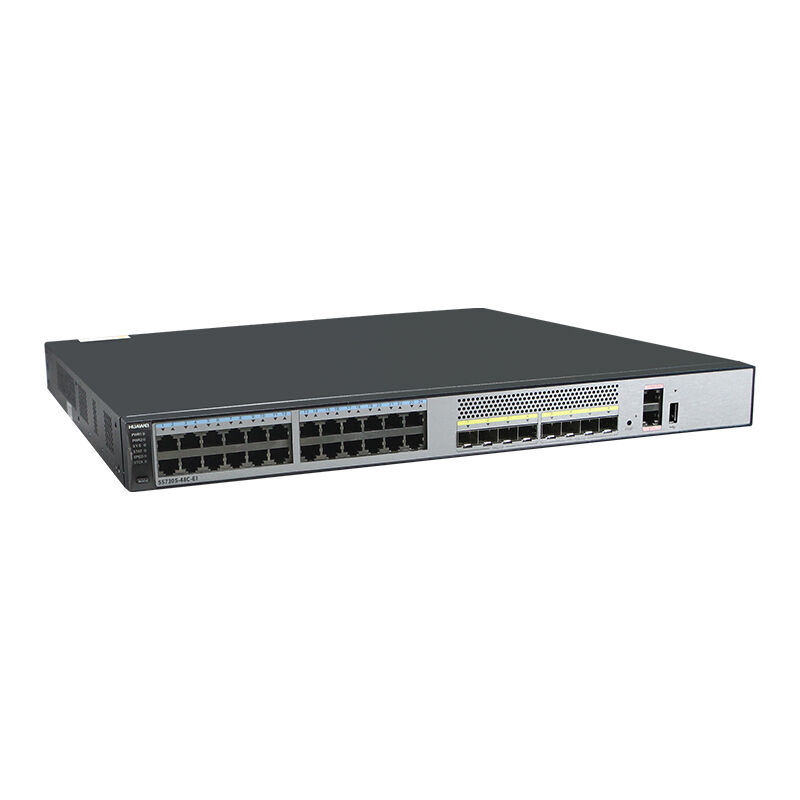

The Huawei S5700 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack.
| Model | S5730S-48C-EI-AC |
|---|---|
| Part Number | 98010790 |
| Memory | 1 GB |
| Flash memory | 512 MB in total. To view the available flash memory size, run the display version command. |
| PoE | Not supported |
| Weight (including package) | 8.2 kg (18.08 lb) |
| Dimensions (H x W x D) |
Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.) |
| ① | Twenty-four 10/100/1000BASE-T ports |
|---|---|
| ② | Eight 10GE SFP+ ports |
| ③ | One PNP button |
| ④ | One console port |
| ⑤ | One ETH management port |
| ⑥ | One USB port |

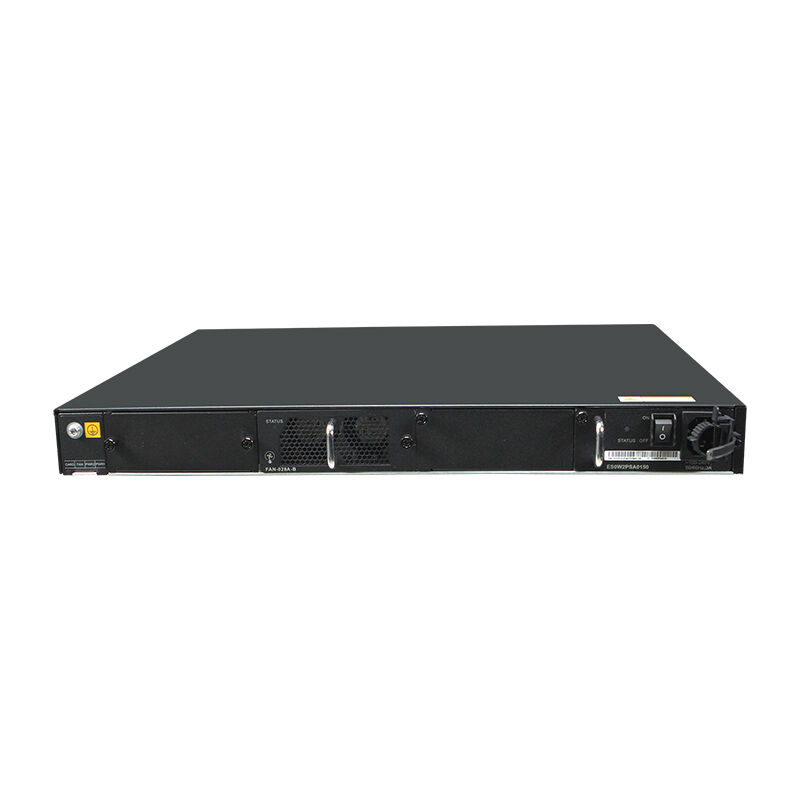

| ⑦ | Ground screw |
| ⑧ | ESN label |
| ⑨ | Rear card slot |
| ⑩ | Fan slot |
| ⑪ | Power module slot 2 |
| ⑫ | Power module slot 1 |
| Model | Description |
|---|---|
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| ESFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
