Brand Name:
Huawei
Model Number:
S5720S-28P-SI-AC
Document:

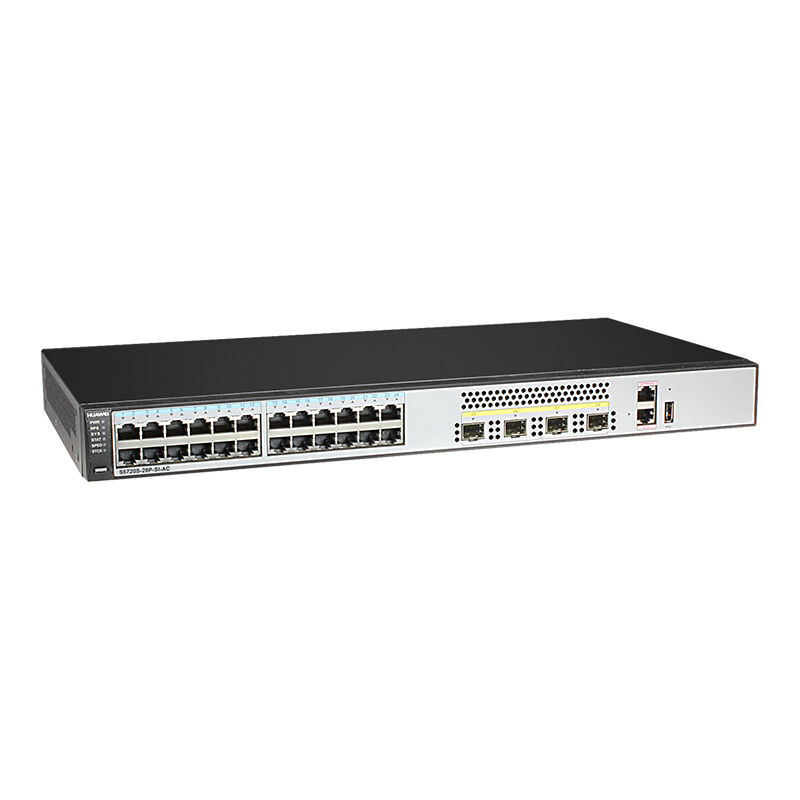

The Huawei S5720S-28P-SI-AC is a next-generation standard gigabit Layer 3 Ethernet switch built on advanced hardware architecture and Huawei's Versatile Routing Platform (VRP). This high-performance switch delivers substantial switching capacity with high-density Gigabit Ethernet and 10 Gigabit uplink interfaces. Featuring 24 Ethernet 10/100/1000 ports and 4 x 10 Gigabit SFP ports, the S5720S-28P-SI-AC serves as an ideal access or aggregation switch for campus networks, or as an access switch in data center environments. The switch incorporates cutting-edge technologies for enhanced reliability, security, and energy efficiency to support next-generation IT infrastructure.
| Model | S5720S-28P-SI-AC |
|---|---|
| Part Number | 02350DLN |
| Memory (RAM) | 512 MB |
| Flash Memory | 512 MB total (view available flash memory using the display version command) |
| PoE Support | Not supported |
| Weight with Packaging | 4.8 kg (10.58 lb) |
| Dimensions (H x W x D) |
Basic dimensions: 43.6 mm x 442.0 mm x 224.8 mm (1.72 in. x 17.4 in. x 8.85 in.) Maximum dimensions: 43.6 mm x 442.0 mm x 233.8 mm (1.72 in. x 17.4 in. x 9.21 in.) |
| Port/Component | Description |
|---|---|
| ① | Twenty-four 10/100/1000BASE-T ports |
| ② | Four 1000BASE-X ports |
| ③ | One ETH management port |
| ④ | One console port |
| ⑤ | One USB port |
| ⑥ | Ground screw |
| ⑦ | RPS socket |
| ⑧ | Jack for AC power cable locking strap |
| ⑨ | AC socket |
