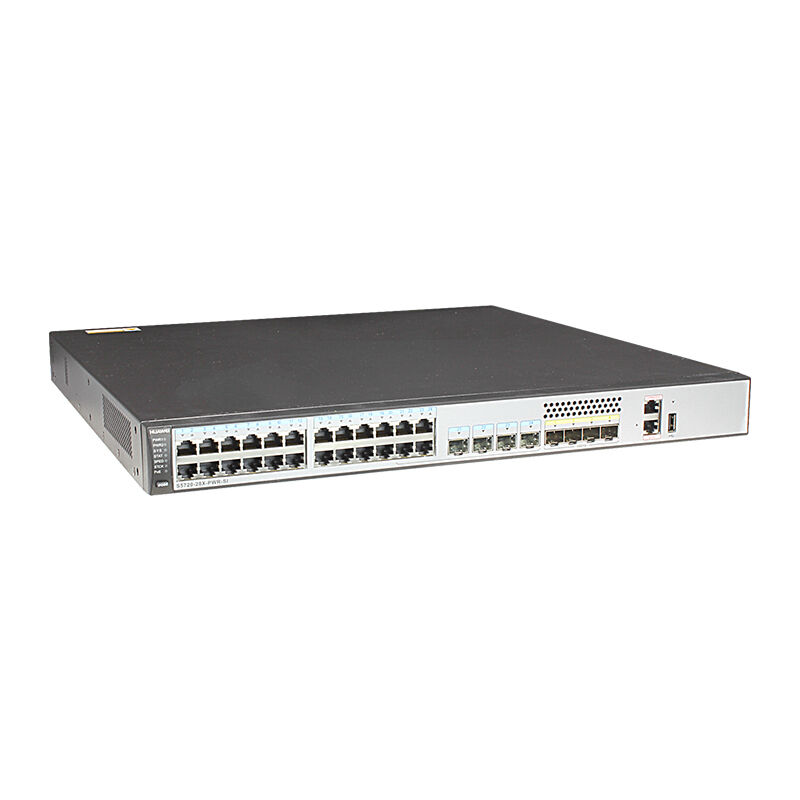

Name: Huawei Switch S5720-28X-PWR-SI-DC with 24 Ethernet 10/100/1000 PoE+ ports 4 10 Gig SFP+ ports and 650W DC power
Brand: Hangzhou Nanyin Trading Co., Ltd.
SKU: S5720-28X-PWR-SI-DC
Price: 1480 USD
Availability: InStock

Home > Products > Huawei Network Switch >

Huawei Switch S5720-28X-PWR-SI-DC with 24 Ethernet 10/100/1000 PoE+ ports 4 10 Gig SFP+ ports and 650W DC power

650W DC power Huawei Switch

High-density GE interfaces Network Switch

24 Ethernet 10/100/1000 PoE+ ports S5720-28X-PWR-SI-DC

Brand Name:

Huawei

Model Number:

S5720-28X-PWR-SI-DC

Document:

huawei-s5720-28x-pwr-si-dc-...et.pdf

Chat Now

Request A Quote

Product Details

Description:

S5720-28X-PWR-SI Bundle (24 Ethernet 10/100/1000 PoE+ Ports, 4 Of Which Are Dual-purpose 10/100/1000 Or SFP, 4 10 Gig SFP+, With 650W DC Power)

Condition:

Original New; In Stock

Highlight:

650W DC power Huawei Switch

High-density GE interfaces Network Switch

24 Ethernet 10/100/1000 PoE+ ports S5720-28X-PWR-SI-DC

Payment & Shipping Terms

Minimum Order Quantity

Price

$1480

Delivery Time

3-5 days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

180pcs

Huawei Network Switch S5732-H48UM2CC with 425GE SFP28 Ports 2100GE QSFP28 Ports and 1*Expansion Slot

Chat Now

Huawei Switch S1720-20GFR-4TP 16 Port Network Switch with Gigabit SFP and Dual-Purpose Ports for AC 110/220V

Chat Now

Huawei Network Switch LS-S2318TP-EI-DC with 16 Port 10/100 BASE-T and 2 Combo GE Ports featuring DC -48V Power QoS and Layer 2 Functionality

Chat Now

Huawei Switch S1720-28GWR-4X 24 Port Network Switch with 10 Gig SFP+ 512 MB Memory and Flash Memory

Chat Now

0086-571-86729517

info@hi-network.com

Chat Now

Product Description

Huawei Switch S5720-28X-PWR-SI-DC (02350NGW)

The Huawei S5720-28X-PWR-SI-DC is part of the S5720-SI series of next-generation standard gigabit Layer 3 Ethernet switches. Built on high-performance hardware and Huawei's Versatile Routing Platform (VRP), it delivers large switching capacity with high-density GE and 10 GE uplink interfaces. Featuring extensive service capabilities and IPv6 support, this switch is ideal for campus network access/aggregation or data center access applications. The S5720-SI series incorporates advanced reliability, security, and energy-saving technologies while offering simple installation and maintenance to reduce operational costs.

Quick Specifications

Model	S5720-28X-PWR-SI-DC
Part Number	02350NGW
Memory (RAM)	512 MB
Flash	512 MB total (view available space via display version command)
PoE Support	Yes
Weight	9.3 kg (20.51 lb)
Dimensions	Basic: 44.4 × 442.0 × 424.7 mm (1.75 × 17.4 × 16.72 in) Maximum: 44.4 × 442.0 × 451.8 mm (1.75 × 17.4 × 17.79 in)

Appearance & Port Configuration

①	Twenty PoE+ 10/100/1000BASE-T ports
②	Four combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X)
③	Four 10GE SFP+ ports
④	One ETH management port
⑤	One console port
⑥	One USB port
⑦	Ground screw
⑧	ESN label
⑨	Power module slot 2
⑩	Power module slot 1

Recommended Accessories

FE-SFP Optical Transceivers

SFP-FE-SX-MM1310 - Multi-mode Module (1310nm, 2km, LC)
eSFP-FE-LX-SM1310 - Single-mode Module (1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310 - Single-mode Module (1310nm, 40km, LC)

GE-SFP Optical Transceivers

eSFP-GE-SX-MM850 - Multi-mode Module (850nm, 0.55km, LC)
SFP-GE-LX-SM1310 - Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310 - Single-mode Module (1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550 - Single-mode Module (1550nm, 40km, LC)

10G-SFP+ Optical Transceivers

SFP-10G-USR - Multi-mode Module (850nm, 0.1km, LC)
OMXD30000 - Multi-mode Module (850nm, 0.3km, LC)
OSX010000 - Single-mode Module (1310nm, 10km, LC)

GE Copper Transceivers

SFP-1000BaseT - Electrical Interface Module (100m, RJ45)

Comparison with Similar Models

Model	S5720-28X-PWR-SI-DC	S5720-52X-PWR-SI-DC	S5720-32X-EI-24S-DC
Switching Capacity	336 Gbit/s	336 Gbit/s	598 Gbit/s
Forwarding Performance	96 Mpps	96 Mpps	102 Mpps
PoE Support	PoE+	PoE+	No
Fixed Interfaces	24×10/100/1000BASE-T (20 PoE+), 4 combo ports, 4×10G SFP+	48×10/100/1000BASE-T, 4×10G SFP+	24×100/1000BASE-X SFP, 4×10/100/1000BASE-T, 4×10G SFP+
